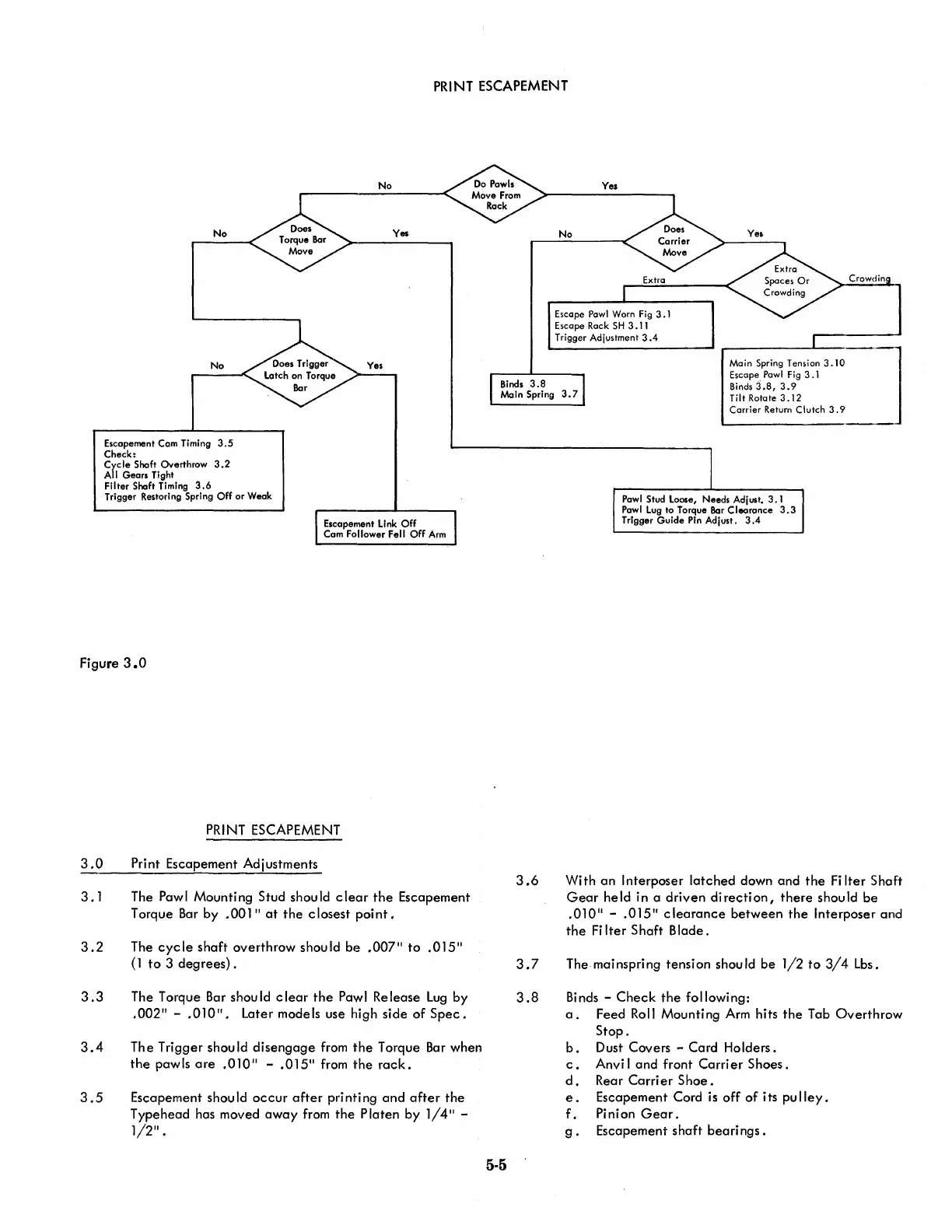

IBM Selectric Reference Manual

PRINT ESCAPEMENT
No
No
Escapement Cam Timing 3.5
Check:
Cycle Shaft Overthrow 3.2
All Gears Tight
Filter Shaft Timing 3.6
Trigger Restoring Spring Off or Weak
No
Yes
Escapement Link Off
Cam Follower Fell Off Arm
Figure 3.0
PRINT ESCAPEMENT
3.0 Print Escapement Adjustments
3.1
3.2
3.3
3.4
3.5
The Paw I Mounti ng Stud shou Id c lear the Escapement
Torque
Bar by .001" at the closest poi nt .
The
cycle shaft overthrow should bl~ .007" to .015"
(1 to 3 degrees).
The Torque Bar should clear the Pawl Release Lug by
.002" - .010". Later models use high side of Spec.
The Trigger should disengage from the Torque Bar when
the pawls are .010" - .015" from the rack.
Escapement shou Id occur after pri nti ng and after the
Typehead has moved away from the Platen by 1/4" -
1/2".
Binds 3.8
Yes
No
Escape Pawl Worn Fig 3.1
Escape Rack SH 3.11
Trigger Adjustment 3.4
Crowdin
~
'----------_ ....... .------_ ....... _---'-
Main Spring Tension 3.10
Escape Pawl Fig 3.1
Main Spring 3.7
Binds 3.8, 3.9
Tilt Rotate 3.12
3.6
3.7
3.8
5·5
Carrier Return Clutch 3.9
Pawl Stud loose, Needs Adjust. 3.1
Pawl lug to Torque Bar Clearance 3.3
Trigger Guide Pin Adjust. 3.4
With an Interposer latched down and the Fi Iter Shaft
Gear held in a driven direction, there should be
.010" - .015" clearance between the Interposer and
the Fi Iter Shaft Blade.
The mainspring tension should be 1/2 to 3/4 Lbs.
Binds -
Check the following:
a. Feed Roll Mounting Arm hits the Tab Overthrow
Stop.
b. Dust Covers - Card Holders.
c. Anvi I and front Carrier Shoes.
d.
e.
f.
g.
Rear Carrier Shoe.
Escapement Cord is off of its pulley.
Pinion Gear.
Escapement shaft bearings.

IBM Selectric Specifications

General

Type	Electric typewriter
Introduced	1961
Keyboard Layout	QWERTY
Carriage Return	Electric
Manufacturer	IBM
Printing Technology	Typeball (golf ball)
Power Source	AC Power
Power Supply	120V AC
