IBM Selectric Reference Manual

OPERATIONAL CAM FOLLOWER REMOVAL
1. Remove the C-clips from the cam-follower pivot shaft (#1,
Figure 43).
2. Remove the auxiliary cam-follower spring (#2, Figure 43).
3. Work the shaft to the right until the desired part is free.
2

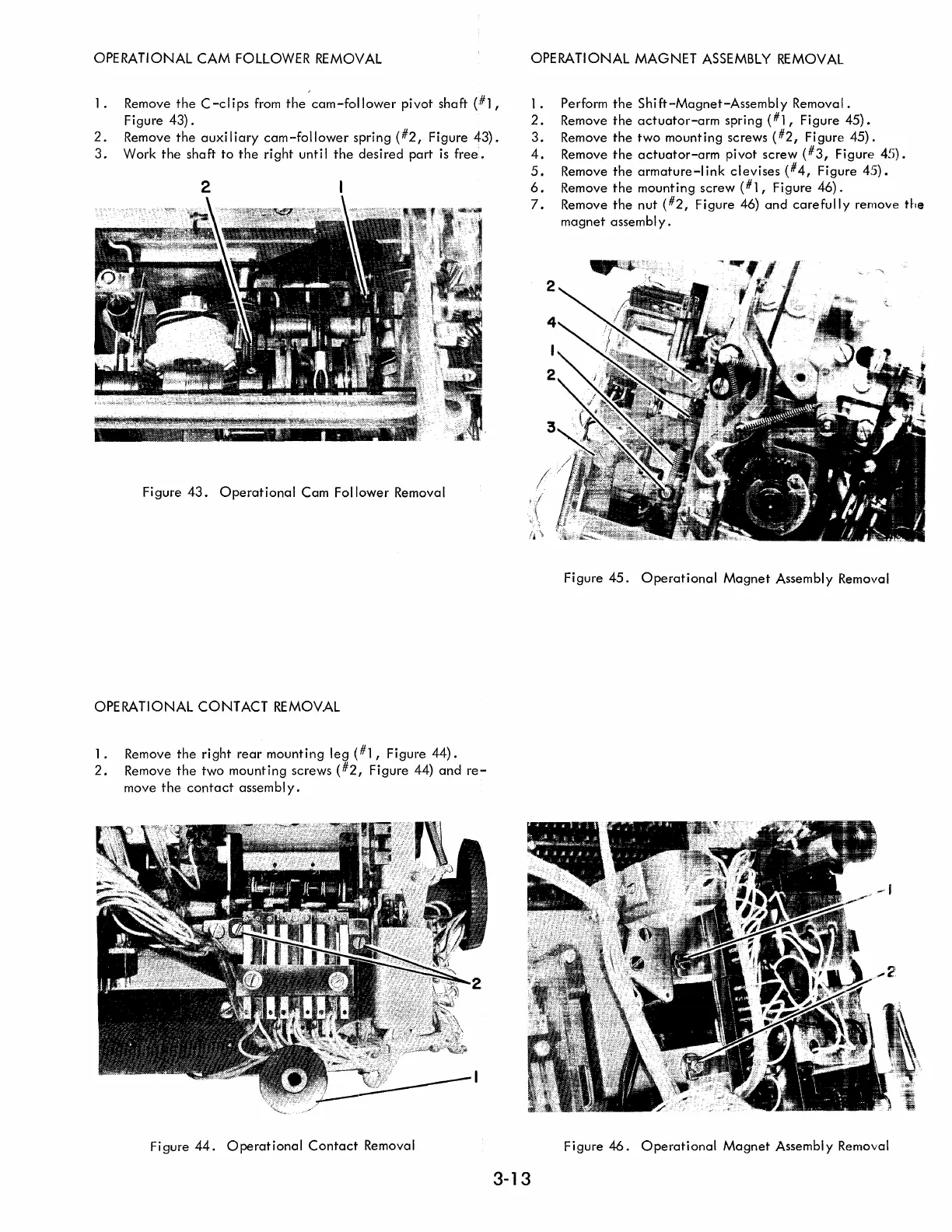

Figure 43. Operational Cam Follower Removal
OPERATIONAL CONTACT REMOVAL
1. Remove the right rear mounting leg (#1, Figure 44).
2. Remove the two mounting screws (#2, Figure 44) and re-
move the contact assembl y.
Figure 44. Operational Contact Removal
3-13
OPERATIONAL MAGNET ASSEMBLY REMOVAL
1. Perform the Shift-Magnet-Assembly Removal.
2. Remove the actuator-arm spring (#1, Figure 45).
3. Remove the two mounting screws (#2, Figure 45).
4. Remove the actuator-arm pivot screw (#3, Figure 45).
5. Remove the armature-link clevises (#4, Figure 45).
6. Remove the mounting screw (#1, Figure 46).
7. Remove the nut (#2, Figure 46) and carefully remove the
magnet assembl y.
Figure 45. Operational Magnet Assembly Removal
Figure 46. Operational Magnet Assembly Removal
