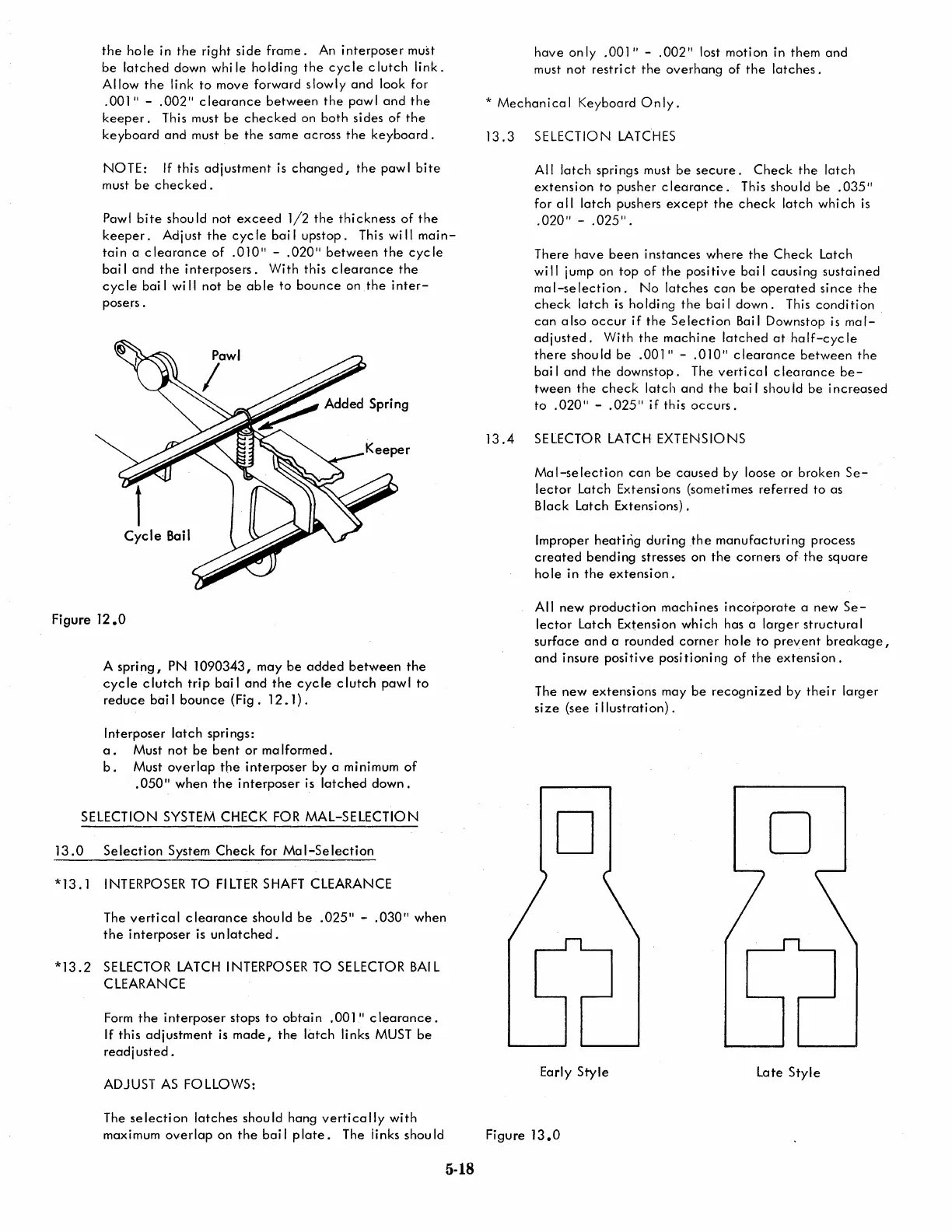

the ho Ie in the right si de frame. An interpose r must
be latched down whi Ie holding the cycle clutch link.
Allow the link to move forward slowly and look for
.001" - .002" clearance between the pawl and the
keeper. This must be checked on both sides of the
keyboard and must be the same across the keyboard.
NOTE: If this adjustment is changed, the pawl bite
must be checked.
Pawl bite should not exceed 1/2 the thickness of the
keeper. Adjust the cyc Ie bai I upstop. This wi II main-
tain a clearance of .010" - .020" between the cycle
bai I and the interposers. With this clearance the
cyc Ie bai I wi II not be ab Ie to bounce on. the i nter-
posers.
Figure 12.0
A spring, PN 1090343, may be added between the
cycle clutch trip bai I and the cycle clutch pawl to
reduce bai I bounce (Fig. 12. 1) .
Interposer latch springs:
a . Must not be bent or ma Iformed .
b. Must overlap tne interposer by a minimum of
.050" when the interposer is latched down.
SELECTION SYSTEM CHECK FOR MAL-SELECTION
13.0 Selection System Check for Mal-Selection
*13.1 INTERPOSER TO FILTER SHAFT CLEARANCE
The
vertical clearance should be .025" - .030" when
the interposer is un latched.
*13.2 SELECTOR LATCH INTERPOSER TO SELECTOR BAIL
CLEARANCE
Form
the interposer stops to obtain .001" clearance.
If this adjustment is made, the latch links MUST be
readjusted.
ADJUST AS FO LLOWS:
The selection latches should hang vertically with
maximum overlap on the bail plate. The iinks should
5·18
have only .001" - .002" lost motion in them and
must not restri ct the overhang of the latches.
* Mechanica I Keyboard On Iy.
13.3 SELECTION LATCHES
All latch springs must be secure. Check the latch
extension to pusher clearance. This should be .035"
for a II latch pushers except the check latch whi ch is
.020" - .025".
There have been instances where the Check Latch
wi
II jump on top of the positive bai I causing sustained
mal-selection. No latches can be operated since the
check latch is holding the bai I down. This condition
can also occur if the Selection Bail Downstop is mal-
adjusted. With the machine latched at half-cyc Ie
there should be .001" - .010" clearance between the
bai I and the downstop. The vertical clearance be-
tween the check latch and the bai t shou id be increased
to .020" - .025" if this occurs.
13.4 SELECTOR LATCH EXTENSIONS
Mal-selection can be caused by loose or broken Se-
lector Latch Extensi ons {sometimes referred to as
Black Latch Extensions}.
Improper heati rig duri ng the manufacturi ng process
created bending stresses on the corners of the square
hole in the extension.
All new production machines incorporate a new Se-
lector Latch Extension which has a larger structural
surface and a rounded corner ho Ie to prevent breakage,
and insure positive positioning of the extension.
The new extensions may be recognized by thei r larger
size {see illustration}.
D
o
Early Style
Late Style
Figure 13.0
