Latch
Arm
Assembly
Latch Height
Adjusting Screw

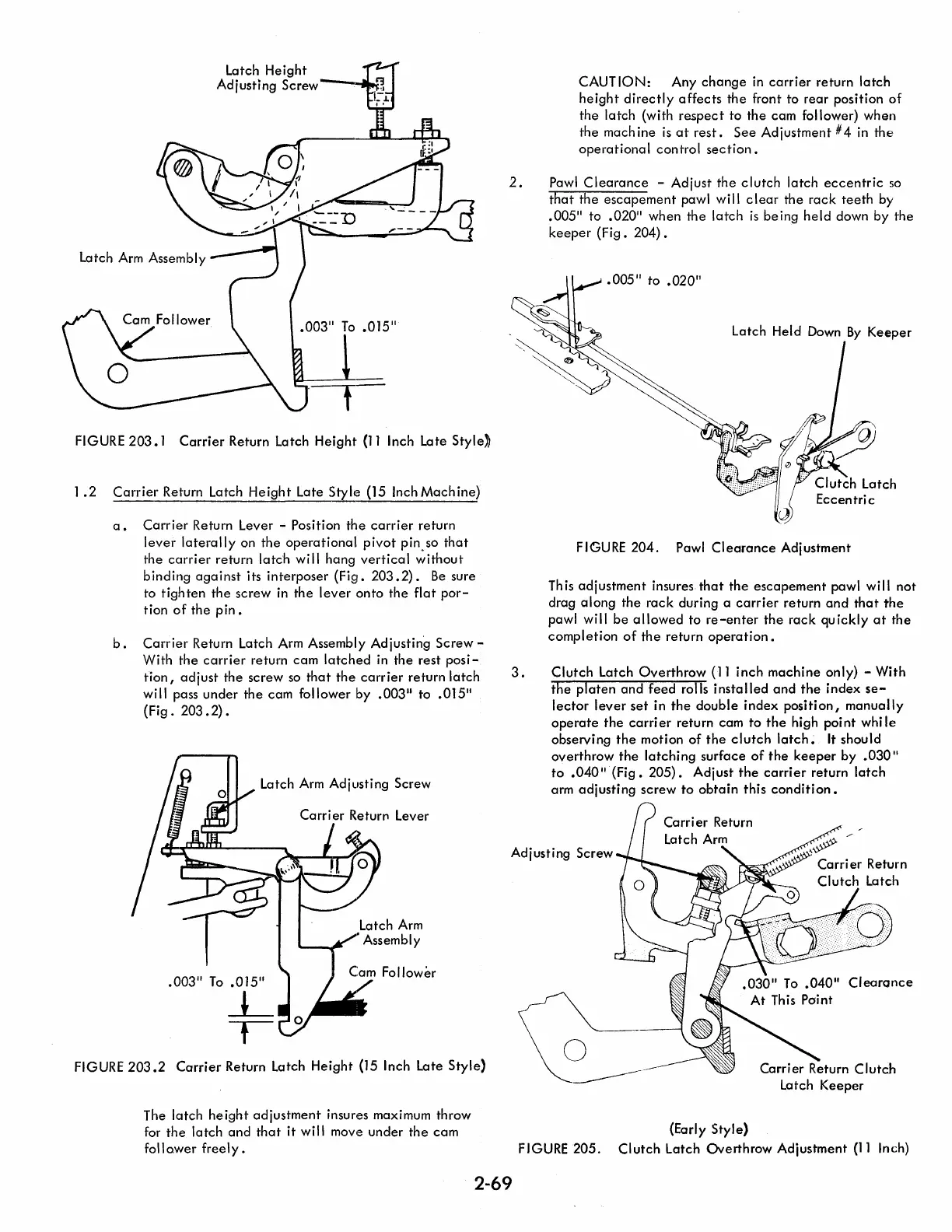

FIGURE
203.1
Carrier
Return Latch
Height
(11
Inch Late
Style~
1.2
Carrier
Return Latch
Height
Late
Style
(15 Inch
Machine)
a.
Carrier
Return Lever - Position
the
carrier
return
lever
laterally
on the
operational
pivot
pin. so
that
the
carrier
return
latch
wi
II
hang
vertical
without
binding
against
its interposer
(Fig.
203.2).
Be
sure
to
tighten
the
screw in
the
lever
onto
the
flat
por-
tion
of
the
pin.
b.
Carrier
Return Latch Arm Assembly Adjusting
Screw-
With the
carrier
return cam
latched
in the rest
posi-
tion,
adjust
the screw
so
that
the
carrier
return
latch
will pass
under
the cam follower by
.003"
to
.015"
(Fig.
203.2).
Latch
Arm
Adjusting Screw
.003"
To
.015"
L
t
FIGURE
203.2
Carrier
Return Latch Height (15 Inch Late
Style)
The
latch
height
adjustment
insures maximum throw
for
the
latch
and
that
it will
movie
under
the
cam
follower
freely.
2.
CAUT
ION:
Any
change
in
carrier
return
latch
height
directly
affects
the
front to
rear
position
of
the
latch (with
respect
to the cam follower) when
the mach ine
is
at
rest.
See
Adjustment # 4
in
the
operational
control
section.
Pawl
Clearance
- Adjust the
clutch
latch
eccentric
so
that
the
escapement
pawl will
clear
the
rack
teeth
by
.005"
to
.020"
when the
latch
is
being
held
down by the
keeper
(Fig.
204).
.005"
to
.020"
Latch Held
Down
By
Keeper
Eccentric
F I
GU
RE
204.
Pawl
CI
earance
Adj ustment
This
adjustment
insures
that
the
escapement
pawl will not
drag
along
the
rack
during a
carrier
return
and
that
the
pawl will
be
allowed
to
re-enter
the
rack
quickly
at
the
completion
of
the
return
operation.
3.
Clutch
Latch
Overthrow
(11
inch
machine
only) - With
the
platen
and
feed
rolls
installed
and
the
index
se-
lector
lever
set
in
the
double
index
position,
manually
operate
the
carrier
return cam
to
the
high point
while
observing
the
motion
of
the
clutch
latch
~
It
should
overthrow
the
latching
surface
of
the
keeper
by .0301\
to
.040"
(Fig
205).
Adjust
the
carrier
return
latch
arm adjusting
screw
to
obtain
this
condition.
Adjusting Screw
ClearQnce
o
(Early
Style)
FIGURE
205.
Clutch
Latch Overthrow Adjustment
(11
Inch)
2-69
