1. To help you work safely with Storwize V7000 Unified file modules, read the
safety information in “Safety” on page xi, “Safety statements” on page xiii, and
“Installation guidelines” on page 54.
2. Turn off the file module and peripheral devices, then label and disconnect both
power cords and all external cables.
3. Press down on the left and right side latches and pull the server out of the rack
enclosure until both slide rails lock.
4. Remove the cover, as described in “Removing the cover” on page 83.
5. Remove the fans, as described in “Removing a hot-swap fan” on page 133.
6. Remove the PCI riser card assemblies, as described in “Removing a PCI
riser-card assembly” on page 99.
7. Remove the DIMM air baffle, as described in “Removing the DIMM air baffle”
on page 93.

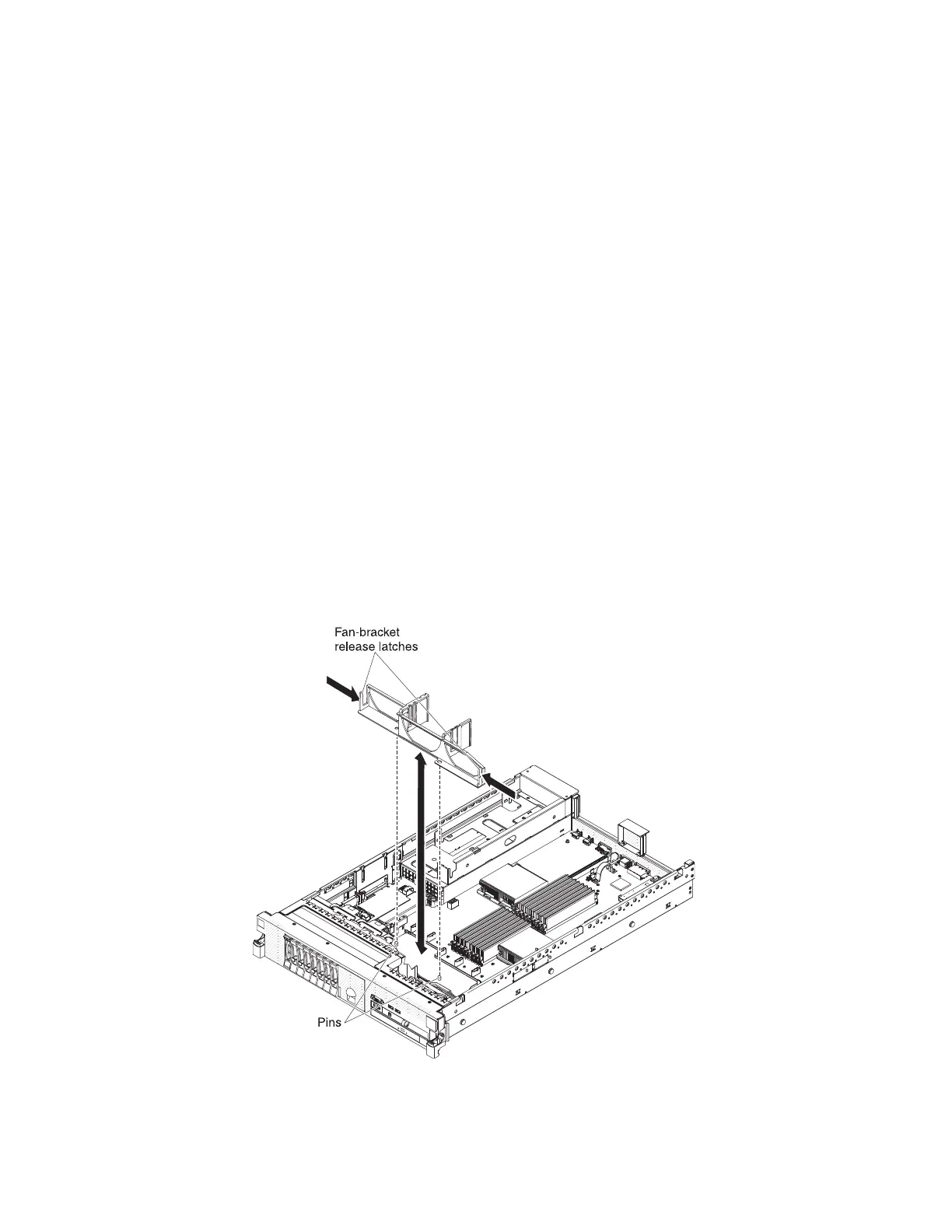

8. Press the fan-bracket release latches toward each other and lift the fan bracket
out of the server.
Installing the fan bracket
The following procedure is for a Tier 1 customer replaceable unit (CRU).
Replacement of Tier 1 CRUs is your responsibility. If IBM installs a Tier 1 CRU at
your request, you will be charged for the installation. Service agreements can be
purchased so that you can ask IBM to replace these units.
Note: Before running a procedure, refer to “Removing a file module to perform a
maintenance action” on page 51.
To install the fan bracket, complete the following procedure.
1. To help you work safely with Storwize V7000 Unified file modules, read the
safety information in “Safety” on page xi, “Safety statements” on page xiii,
and “Installation guidelines” on page 54.
96 Storwize V7000 Unified: Problem Determination Guide Version
