3. Open the handle to the full extension.

4. Pull out the drive.

5. Push the new drive back into the slot until the handle starts to move.

6. Finish inserting the drive by closing the handle until the locking catch clicks

into place.

svc00612

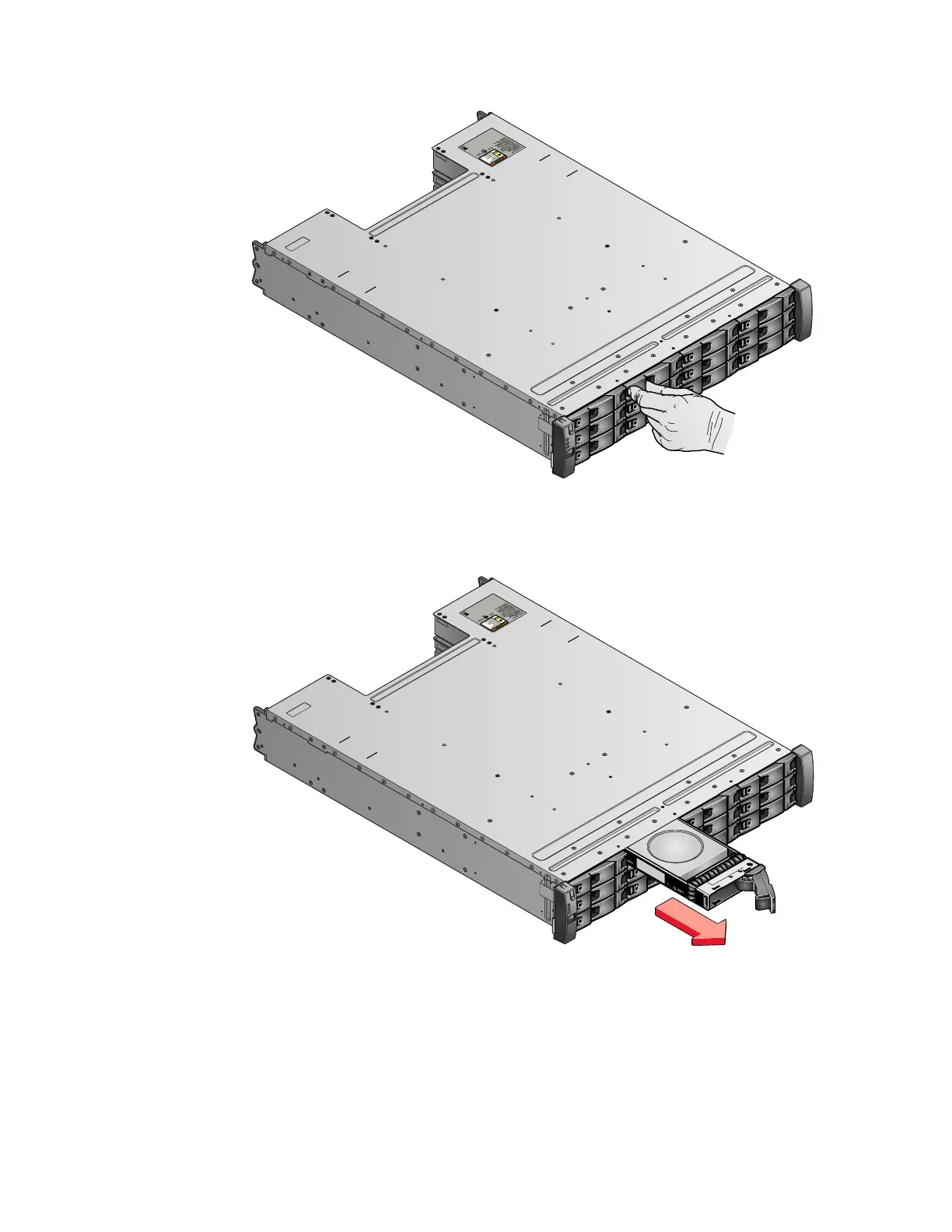

Figure 60. Unlocking the 3.5" drive

svc00613

Figure 61. Removing the 3.5" drive

226 Storwize V7000 Unified: Problem Determination Guide Version
