b. Grip the handle to pull the power supply out of the enclosure as shown in
Figure 58.
6. Insert the replacement power supply unit into the enclosure with the handle
pointing towards the center of the enclosure. Insert the unit in the same
orientation as the one that you removed.
svc00633

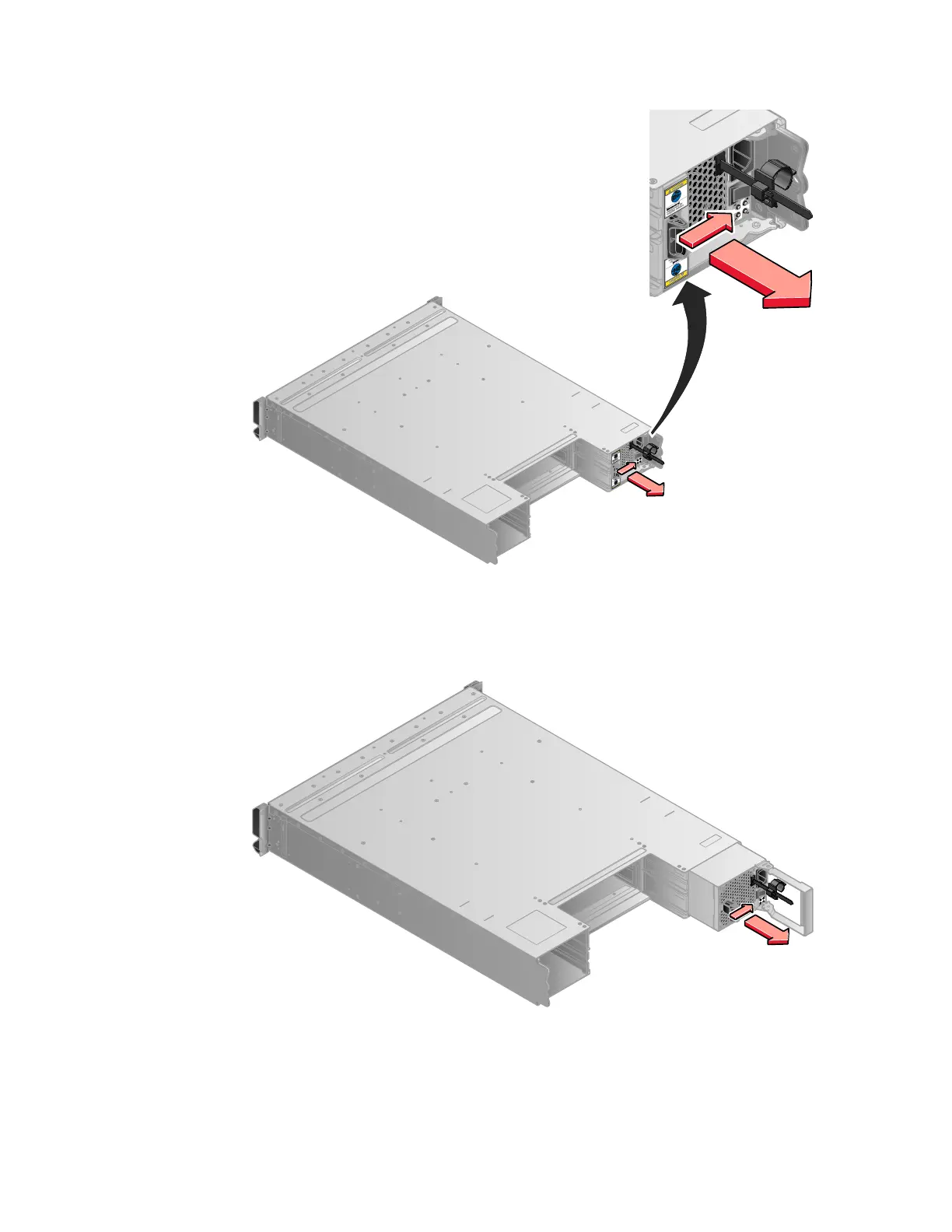

Figure 57. Directions for lifting the handle on the power supply unit
svc00632
Figure 58. Using the handle to remove a power supply unit
220 Storwize V7000 Unified: Problem Determination Guide Version

IBM Storwize V7000 2076-224 Specifications

General

Model	2076-224
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Form Factor	2U
Drive Interface	SAS
Connectivity	Fibre Channel, iSCSI
Drive Bays	24
Host Interface	8 Gbps Fibre Channel, 1 Gbps iSCSI
Power Supply	Dual redundant power supplies
Operating Temperature	10°C to 35°C (50°F to 95°F)
Operating Humidity	20% to 80% non-condensing
Non-operating Humidity	10% to 90% non-condensing
