1) Remove the SAS controller front retention bracket from the server. See
Figure 23.
2) Remove the rear controller retention bracket located in the battery bay
above the power supplies by pulling up the release tab 1 and sliding
the bracket outward 2. See Figure 24 on page 115.
sonas203

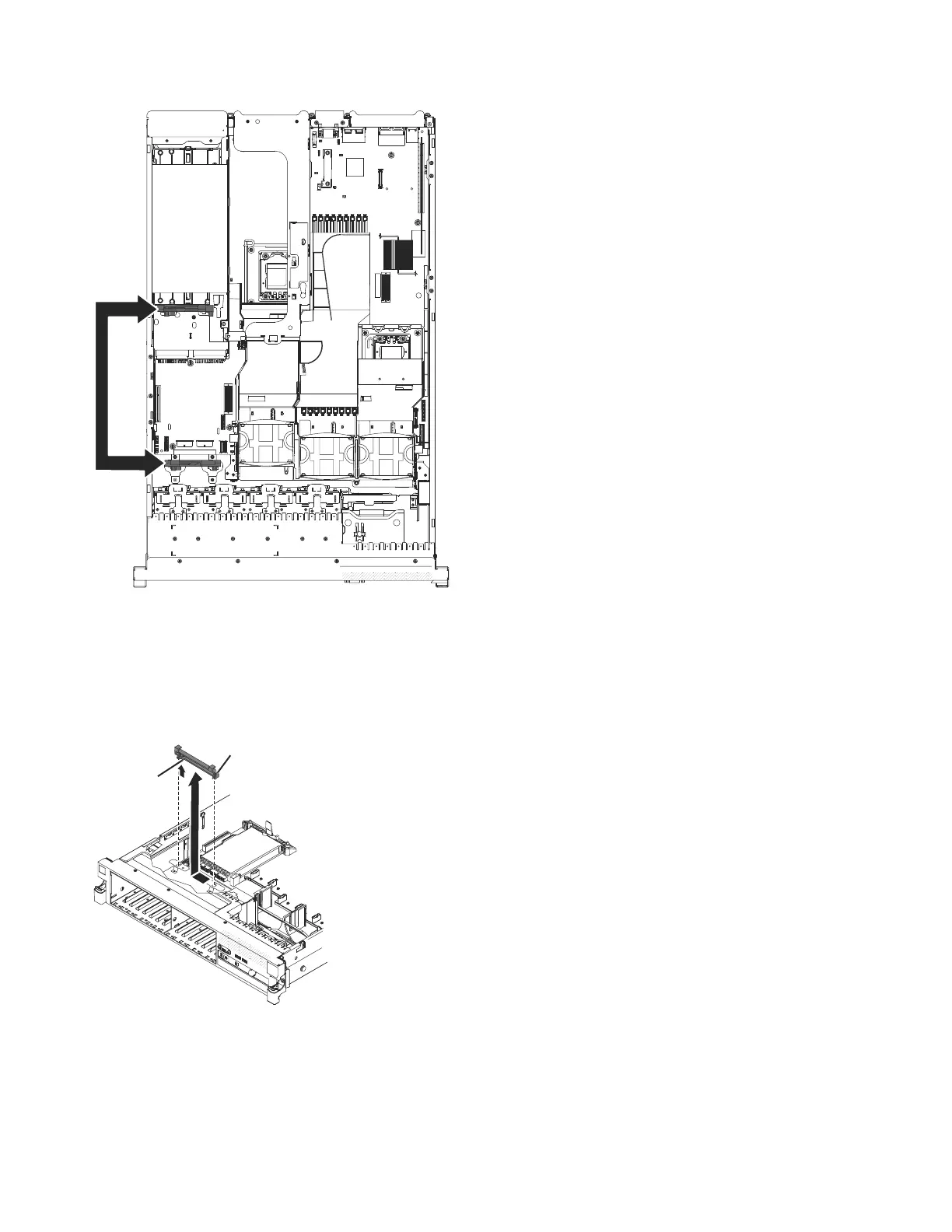

Figure 22. Controller retention brackets on 16-drive-capable server model
Tab
SAS expander card
front retention bracket
sonas207
Figure 23. SAS controller front retention brackets
114 Storwize V7000 Unified: Problem Determination Guide Version

IBM Storwize V7000 2076-224 Specifications

General

Model	2076-224
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Form Factor	2U
Drive Interface	SAS
Connectivity	Fibre Channel, iSCSI
Drive Bays	24
Host Interface	8 Gbps Fibre Channel, 1 Gbps iSCSI
Power Supply	Dual redundant power supplies
Operating Temperature	10°C to 35°C (50°F to 95°F)
Operating Humidity	20% to 80% non-condensing
Non-operating Humidity	10% to 90% non-condensing
