5. Squeeze them together to release the handle.
6. Pull out the handle to its full extension.
7. Grasp canister and pull it out.
8. Insert the new canister into the slot with the handle pointing towards the
center of the slot. Insert the unit in the same orientation as the one that you
removed.
9. Push the canister back into the slot until the handle starts to move.
10. Finish inserting the canister by closing the handle until the locking catch clicks
into place.
11. Reattach the SAS cables.
Replacing an SFP transceiver
When a failure occurs on a single link, the SFP transceiver might need to be
replaced.
Even though many of these procedures are hot-swappable, these procedures are
intended to be used only when your system is not up and running and performing
I/O operations. Unless your system is offline, go to the management GUI and
follow the fix procedures.
1
2
svc00745

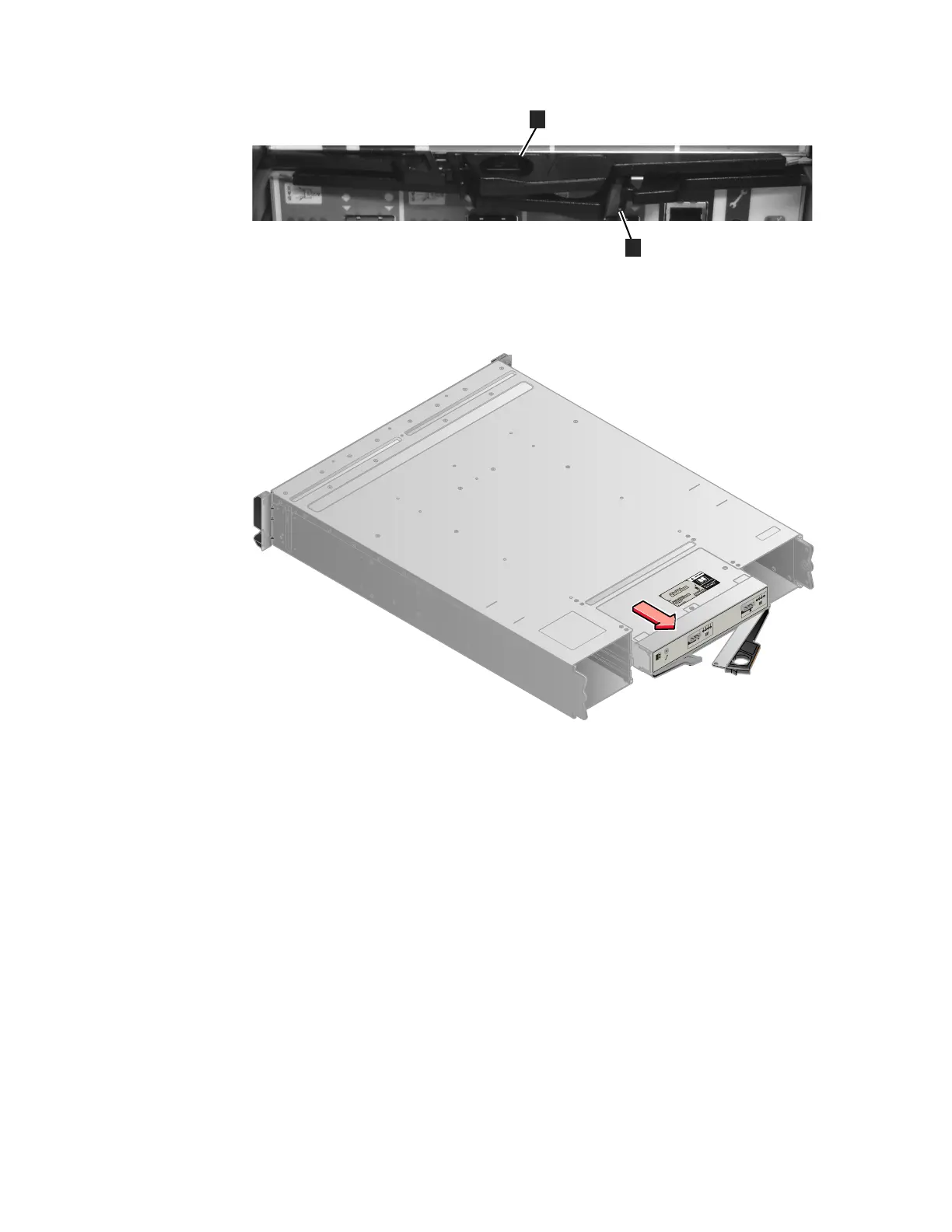

Figure 52. Rear of expansion canisters that shows the handles.
svc00631
Figure 53. Removing the canister from the enclosure
212 Storwize V7000 Unified: Problem Determination Guide Version

IBM Storwize V7000 2076-224 Specifications

General

Model	2076-224
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Form Factor	2U
Drive Interface	SAS
Connectivity	Fibre Channel, iSCSI
Drive Bays	24
Host Interface	8 Gbps Fibre Channel, 1 Gbps iSCSI
Power Supply	Dual redundant power supplies
Operating Temperature	10°C to 35°C (50°F to 95°F)
Operating Humidity	20% to 80% non-condensing
Non-operating Humidity	10% to 90% non-condensing
