7. Reconnect the external cables; then, reconnect the power cords and turn on the
peripheral devices and the file module.
Note: You must wait approximately 2.5 minutes after you connect the power
cord of the file module to an electrical outlet before the power-control button
becomes active.
Removing a PCI adapter from a PCI riser-card assembly
The following procedure is for a Tier 1 customer replaceable unit (CRU).
Replacement of Tier 1 CRUs is your responsibility. If IBM installs a Tier 1 CRU at
your request, you will be charged for the installation. Service agreements can be
purchased so that you can ask IBM to replace these units.
Note: Before running a procedure, refer to “Removing a file module to perform a
maintenance action” on page 51.
Use this procedure to remove an adapter from a PCI expansion slot in a PCI
riser-card assembly. To remove the ServeRAID SAS controller from the SAS riser
card, see “Removing the ServeRAID SAS controller from the SAS riser-card” on
page 117.

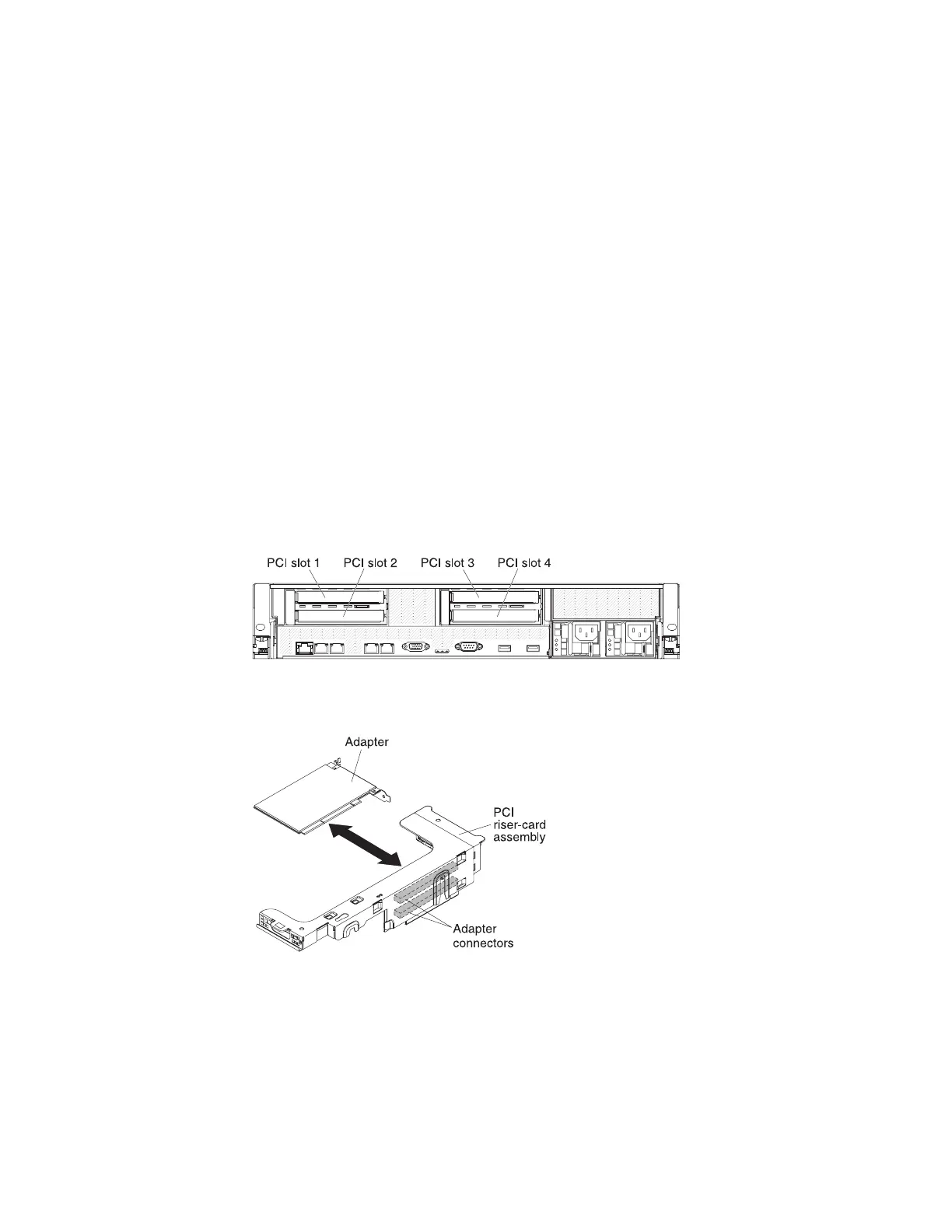

The following illustration shows the locations of the adapter expansion slots from
the rear of the file module.
To remove an adapter from a PCI expansion slot, complete the following
procedure.
1. To help you work safely with Storwize V7000 Unified file modules, read the
safety information in “Safety” on page xi, “Safety statements” on page xiii, and
“Installation guidelines” on page 54.
2. Turn off the file module and peripheral devices, then label and disconnect both
power cords and all external cables.
3. Press down on the left and right side latches and pull the server out of the rack
enclosure until both slide rails lock.
4. Remove the cover, as described in “Removing the cover” on page 83.
102 Storwize V7000 Unified: Problem Determination Guide Version
