IBM Storwize V7000 Gen2 User Manual

v 1 Expansion canisters
v 2 Power supply units
Figure 5 shows the rear view of an expansion canister and identifies the SAS port
locations.
v 1 LEDs
v 2 SAS ports
Each canister has two SAS ports that are numbered 1 on the left and 2 on the right.
Port 1 is used to connect to a SAS expansion port on a node canister or port 2 of
another expansion canister.
The left and right expansion enclosure support rails (Figure 6 on page 9) are
designed specifically for installation of an expansion enclosure.
v The ledge on the inside of each rail supports the entire length of an expansion
enclosure.
v The expansion enclosure support rails capture the left and right rear edges of an
inserted expansion enclosure. This prevents the installed control enclosure
bouncing when the rack is subjected to quake or vibration.
v The expansion enclosure support rails adjust to fit racks from 595 mm to 755
mm deep, measured between the front and rear rack rails.
fab10006
2
1
IN
DC
!
OK
IN
DC
!
OK

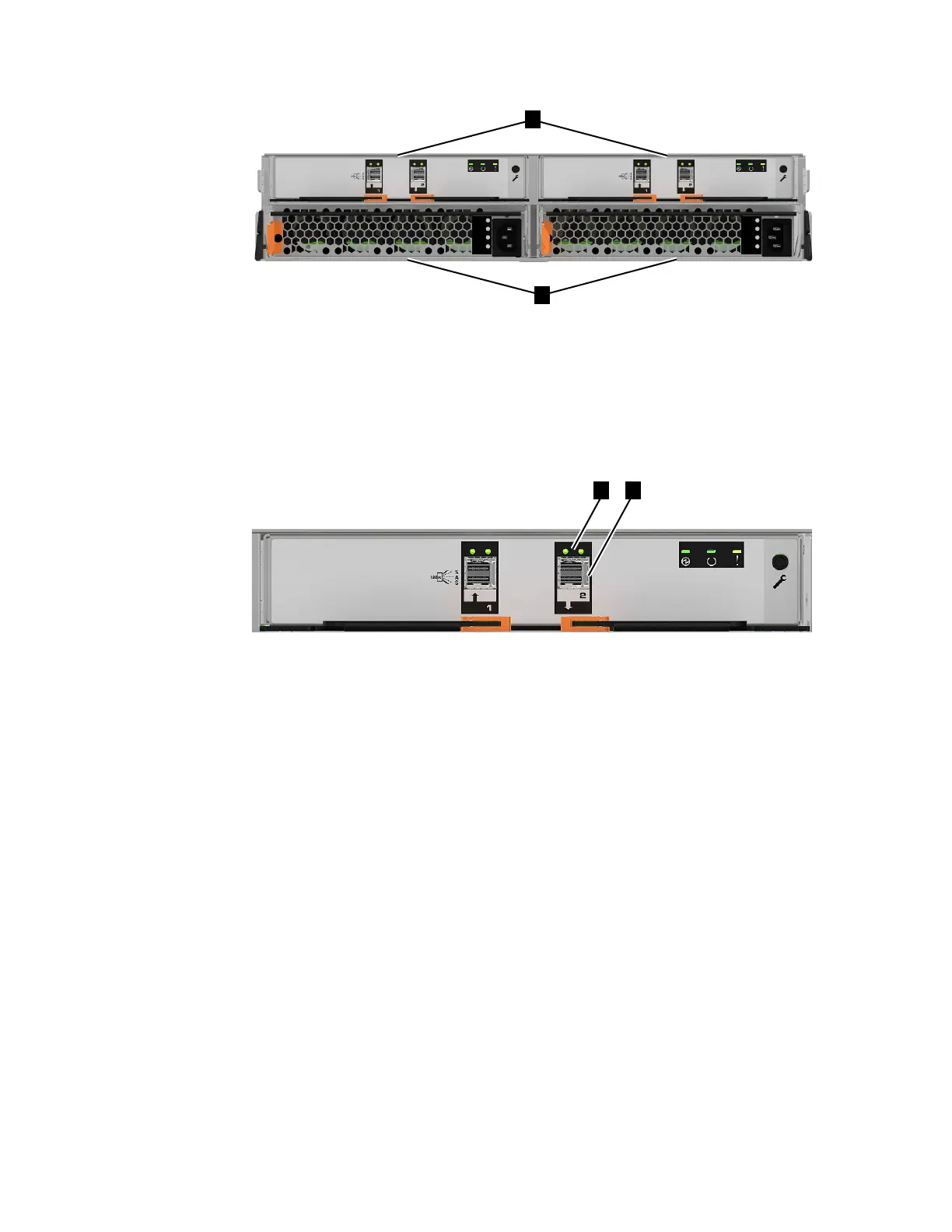

Figure 4. Rear view of a Storwize V7000 expansion enclosure
fab10009
1
2
Figure 5. SAS ports and LEDs in rear of expansion canister
8 Storwize V7000 Gen2: Quick Installation Guide

IBM Storwize V7000 Gen2 Specifications

General

Model	Storwize V7000 Gen2
Drive Interface	SAS
Maximum Drives	504
RAID Levels	0, 1, 5, 6, 10
Cache	Yes
Form Factor	2U
Cache Memory	64 GB per control enclosure
Operating System	IBM Spectrum Virtualize
Humidity	8% to 80% non-condensing
Drive Types Supported	SSD
Power Supply	Dual, hot-swappable
Host Interface	Fibre Channel, iSCSI, FCoE
Maximum Host Ports	16
Input Voltage	100-240 V AC
Operating Temperature	10°C to 35°C
Non-operating Temperature	-10°C to 50°C
