IBM Storwize V7000 Gen2 User Manual

6. Align the holes in the rail bracket with the holes on the front and rear rack
cabinet flanges. Ensure that the rails are aligned on the inside of the rack
cabinet.
7. On the rear of the rail, press the two bracket pins into the holes in the rack
flanges.
8. Close the rear hinge bracket to secure the rail to the rack cabinet flange. (See
Figure 16.)
9. On the front of the rail, press the two bracket pins into the holes in the rack
flanges.
10. Close the front hinge bracket to secure the rail to the rack cabinet flange. (See
Figure 16.)
11. Secure the rear of the rail to the rear rack flange with an M5 screw.
12. Repeat the steps to secure the opposite rail to the rack cabinet.
13. Repeat the procedure to install rails for each additional expansion enclosure.
fab10018
1

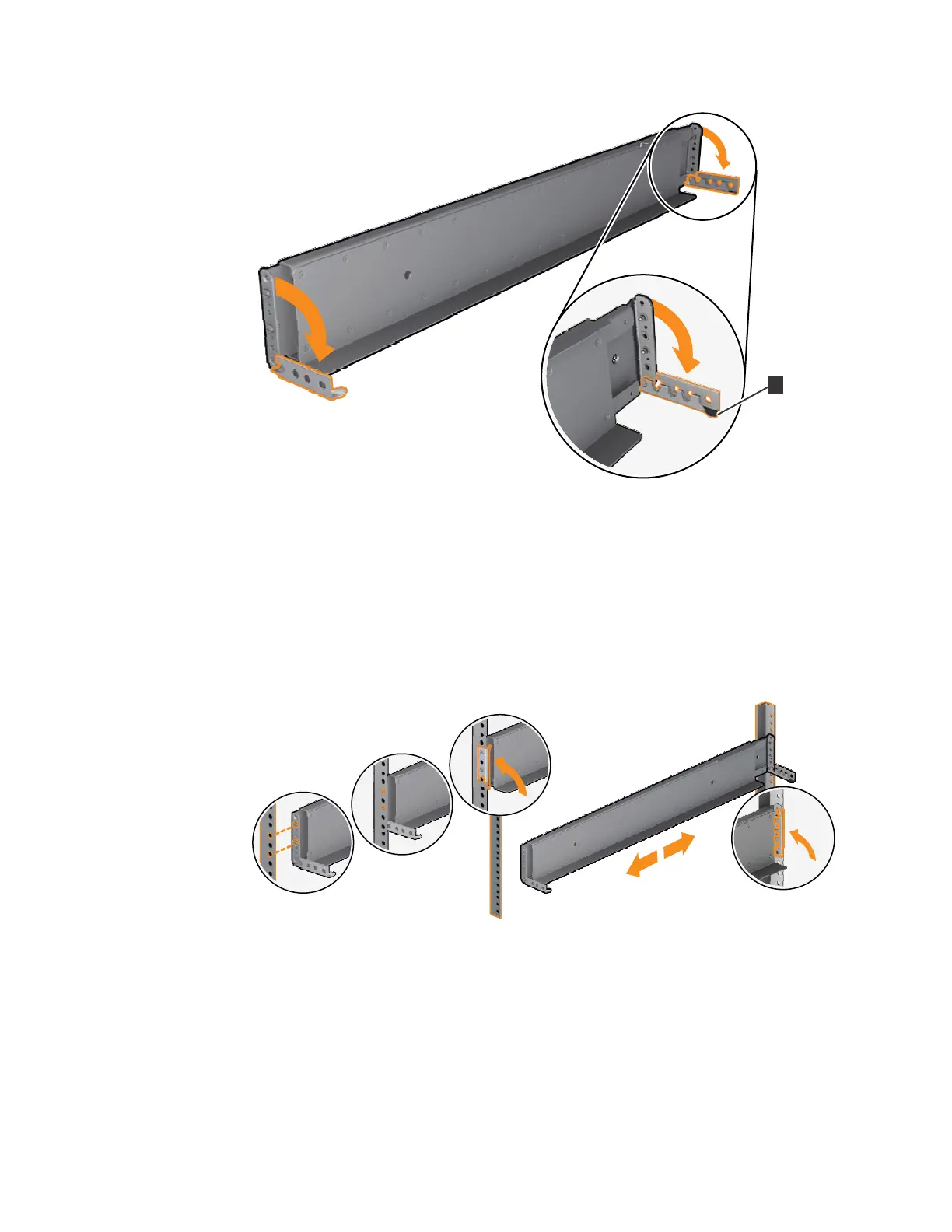

Figure 15. Opening the hinge brackets
2
1
4
3
fab10019
Figure 16. Closing the hinge brackets
18 Storwize V7000 Gen2: Quick Installation Guide
