1 Power
2 Status
3 Fault
The canister is ready with no critical errors when Power is illuminated, Status
is illuminated, and Fault is off. If a canister is not ready, refer to the “Procedure:
Understanding the system status using the LEDs” topic in “Troubleshooting”.
3. Wait for all expansion canisters to finish powering on.
4. Power on the control enclosure by connecting both power supply units of the
enclosure to their power sources, using the supplied power cables. If the power
sources have circuit breakers or switches, ensure that they are turned on. The
enclosure does not have power switches.
Note: Each enclosure has two power supply units. To provide power failure
redundancy, connect the two power cords to separate power circuits.
5. From the rear of the control enclosure, check the LEDs on each node canister
(see Figure 28).
1 Power
2 Status
3 Fault
The canister is ready with no critical errors when Power is illuminated, Status
is blinking, and Fault is off. If a canister is not ready, refer to the “Procedure:
Understanding the system status using the LEDs” topic in “Troubleshooting”.
v3500064
2
3
1

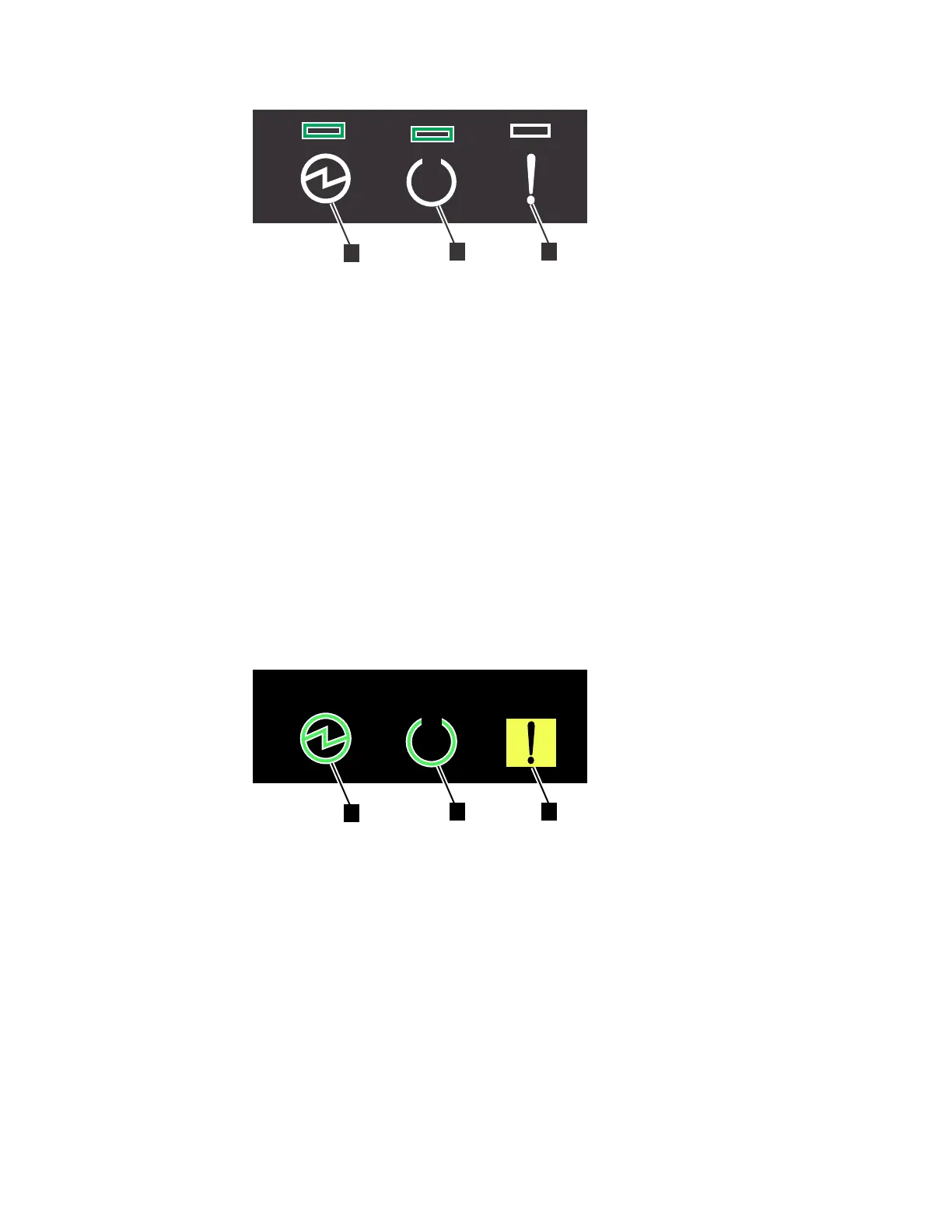

Figure 27. Expansion canister LEDs
fab10008
2
1
3
Figure 28. Node canister LEDs
28 Storwize V7000 Gen2: Quick Installation Guide
