IBM Storwize V7000 Gen2 User Manual

v 1 Upper rail mounting bracket pin
v 2 Lower rail mounting bracket pin
v 3 Rack mounting screw hole
4. Ensure that the appropriate bracket pins are installed in the front and rear
bracket of each rail. Each rail comes with four medium pins preinstalled (two
in the front bracket and two in the rear bracket). Large and small pins are
provided separately. Use the pins that are appropriate for the mounting holes
in your rack (see Table 8).
Table 8. Selecting bracket pins for your rack
Mounting holes Bracket pins
Round,
unthreaded
Use the preinstalled medium pins.
Round, threaded Unscrew the medium pins and replace with the smaller pins supplied
with the rails.
Square Unscrew the medium pins and replace with the large pins supplied with
the rails.
5. At each end of the rail, grasp the tab 1 and pull firmly to open the hinge
bracket (see Figure 15 on page 18).
1
2
3
v3500162

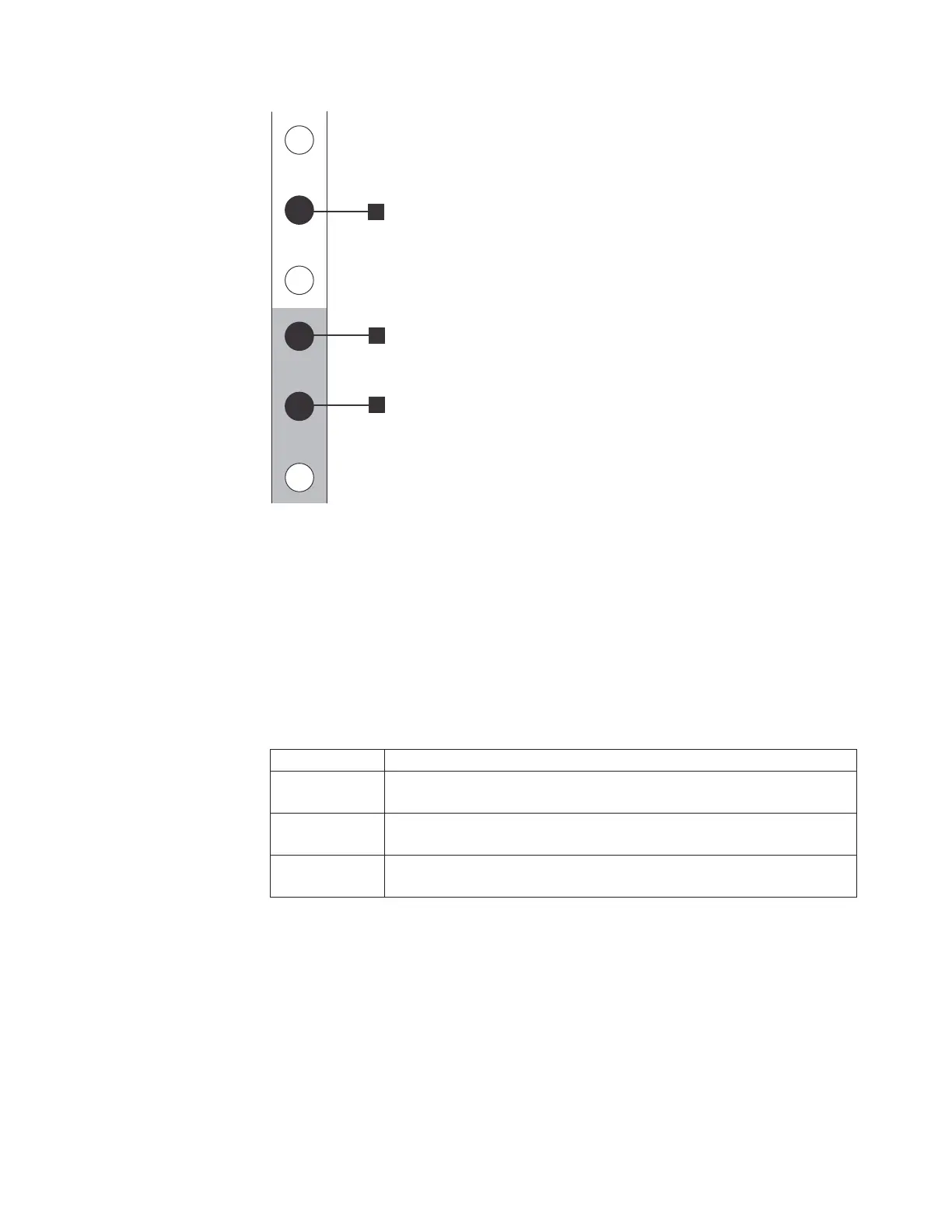

Figure 14. Hole locations in the front of the rack
Chapter 2. Installing the hardware 17

IBM Storwize V7000 Gen2 Specifications

General

Model	Storwize V7000 Gen2
Drive Interface	SAS
Maximum Drives	504
RAID Levels	0, 1, 5, 6, 10
Cache	Yes
Form Factor	2U
Cache Memory	64 GB per control enclosure
Operating System	IBM Spectrum Virtualize
Humidity	8% to 80% non-condensing
Drive Types Supported	SSD
Power Supply	Dual, hot-swappable
Host Interface	Fibre Channel, iSCSI, FCoE
Maximum Host Ports	16
Input Voltage	100-240 V AC
Operating Temperature	10°C to 35°C
Non-operating Temperature	-10°C to 50°C
