SurePOS 500 4846-XX5 Technical Reference
Page 11 of 63
Tablet at 15
degrees
maximum Tablet at 15
degrees
Tablet at 60
degrees
Tower and 12-in. tablet
11.3 kg
(25 lbs)
357.9 mm
(14.0 in.)
374.1 mm
(14.7 in.)
316.8 mm
(12.5 in.)
385.8 mm
(15.2 in.)
307.9 mm
(12.12 in.)
Tower and 15-in. tablet
12.2 kg
(27 lbs)
381.8 mm
(15.0 in.)
393.6 mm
(15.5 in.)
324.4 mm
(12.8 in.)
405.8 mm
(15.9 in.)
369 mm
(14.5 in.)
Tower and 17-in. tablet
14.51 kg
(32 lbs)
404.5 mm
(15.93 in.)
414.6 mm
(16.32 in.)
335.2 mm
(13.2 in.)
423.9 mm
(16.7 in.)
402.3 mm
(15.83 in.)
2.8.1.2 Weights of features
Component Weight
Integrated 2x20 display 0.2 kg (0.38 lbs)
Distributed 2x20 display 0.5 kg (1.2 lbs)
Distributed APA display 0.7 kg (1.6 lbs)
MSR (three-track or JUCC) 0.16 kg (0.41 lbs)

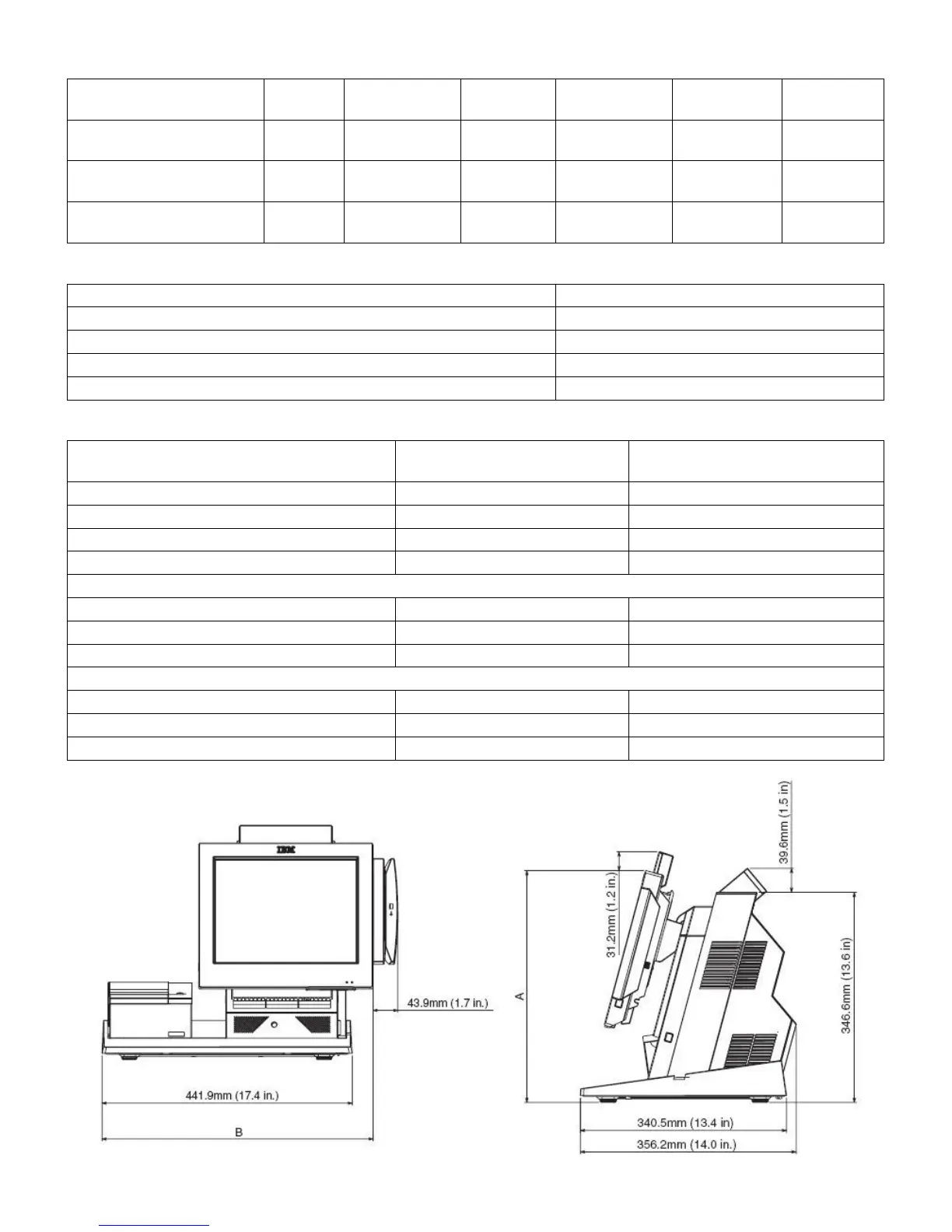

2.8.1.3 Dimensions with Trays
Measurement A
(see figure below)
Measurement B
(see figure below)
Product with 12 in. tablet and the following:
Counter top tray 382.4 mm (15.1 in.) 478.6 mm (18.8 in.)
Cash drawer tray 493.5 mm (19.4 in.) 480.9 mm (18.9 in.)
Retail tray 527.4 mm (20.8 in.) 489.2 mm (19.2 in.)
Product with 15 in. tablet and the following:
Counter top tray 406.2 mm (15.9 in. ) 509.2 mm (20.0 in.)
Cash drawer tray 517.3 mm (20.4 in.) 511.4 mm (20.1 in)
Retail tray 551.1 mm (21.7 in.) 519.7 mm (20.5 in.)
Product with 17 in. tablet and the following:
Counter top try 428.9 mm (16.9 in.) 525.9 mm (20.7 in.)
Cash drawer 540 mm (21.3 in.) 528.1 mm (20.8 in.)
Retail tray 573.8 mm (22.6 in.) 536.4 mm (21.1 in.)
