SurePOS 500 4846-XX5 Technical Reference
Page 42 of 63

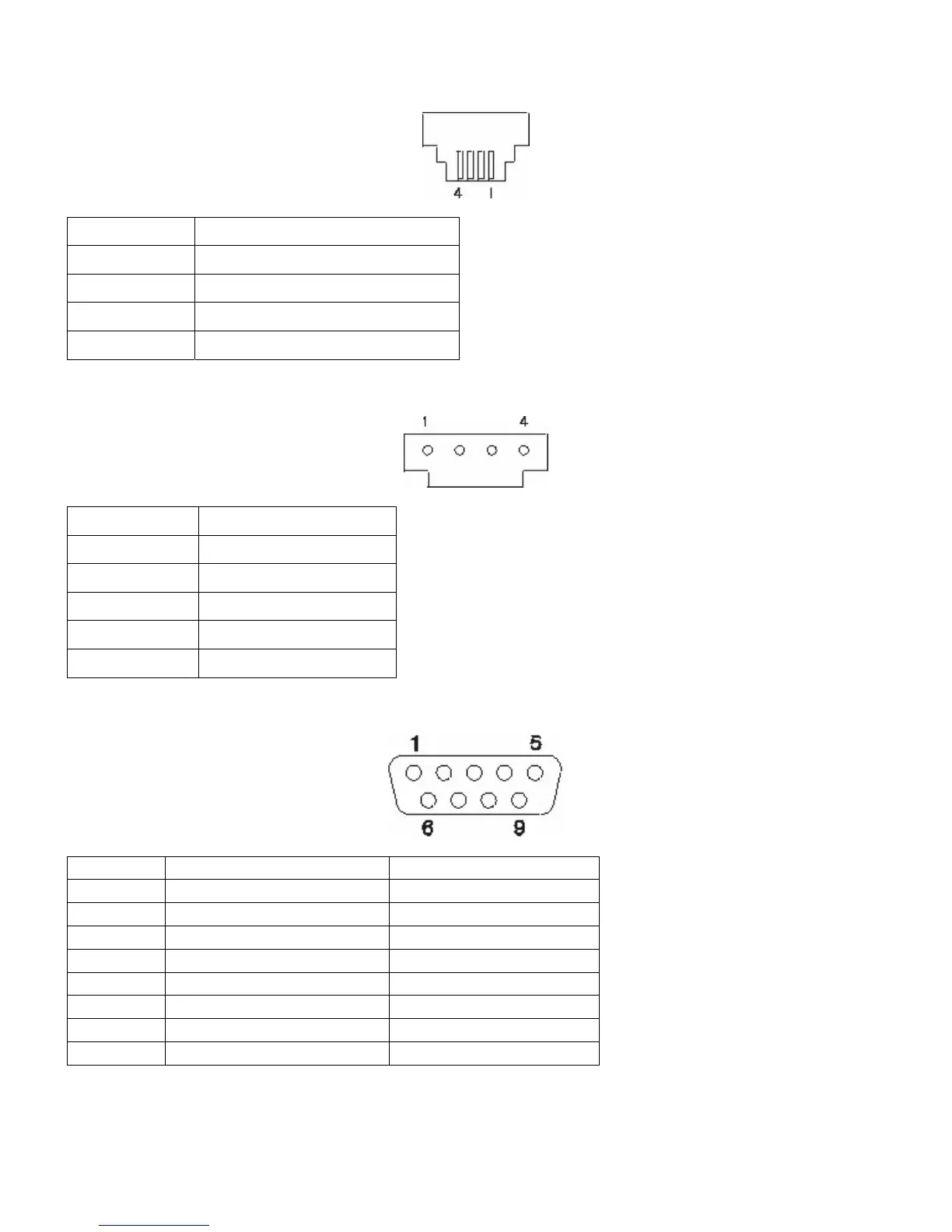

5.4.3
Cash Drawer (x2)
Pin Connector
1 Ground
2 Sense
3 Open
4 24V
5.4.4
Internal Customer Display
Pin Connector
1 +5V
Main
2 Transmit
Data
3
Int VFD Present
4 Ground
5.4.5
RJ45 to RS232 Cable
Signal
Pin number, RJ45 End
Pin number, RS232 end
DSR/RI 1
6
CD 2
1
DTR 3
4
GND 4
5
RXD 5
2
TXD 6
3
CTS 7
8
RTS 8
7
41
43
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction
5
Highlights
5
Models
5
Specifications
5
Related Publications
6
2 Product Structure
8
Factory Select Feature
8
Key Optional Features
8
Ship Group
8
Supported Devices
9
Operating System/Pos Driver Support
9
System Management
9
System Management Programs
9
Remote Management
10
System Diagnostics
10
Supported Memory Keys
10
Physical Characteristics
10
Dimensions and Weights
10
System
10
Weights of Features
11
Dimensions with Trays
11
Controls
12
Visual Indicators
12
Connector/Controls Identifier
13
Product Description
15
Block Diagram
15
Logic
16
Component Specifications
17
4GB Modular Flash Drive
17
Hard Disk Drive
17
Lcd
18
Magnetic Stripe Reader
18
Integrated and Distributed 2X20
18
All Points Addressable (APA) Display
19
Built-In Speakers (XX5 Models Only)
20
3 BIOS and Software Description
21
Setup
21
Functional Standards
21
Standard BIOS Features
21
BIOS Interrupts
22
Fixed BIOS Entry Points
23
BDA Memory Addresses
24
EBDA Memory Addresses
26
Memory Map
26
COM Port Setup
27
Video Modes
27
Display Mode and Operating System Restrictions
30
Power Management
31
Apm
31
Acpi
32
System Information Data
33
Smbios
33
Cumulative Structure List
33
Vital Product Data
34
VPD Layout in SMBIOS
34
SMBIOS Type 11 Structure Layout
34
4 Reliability and Serviceability
34
Usage
34
5 Environmental Specifications
35
Temperature/Humidity Limits
35
Altitude Limits
35
Power
35
Acoustics
35
Standards Compliance
35
Product Certifications
35
Ergonomics and Accessibility
36
6 External Ports
37
Port Listing
37
Port Power Ratings
37
Connector Pinouts
38
Customer Display Connector
38
MSR Connector
38
USB Plus Power (2X)
39
USB Port Connector (7X)
39
Keyboard, Mouse Connector (2X)
39
Microphone Connector
40
Headphone Connector
40
Serial Connector (X3)
40
Ethernet Connector
41
External Video Connector
41
Cash Drawer (X2)
42
Internal Customer Display
42
Cmos Setup Utility
43
Standard Cmos Features
44
Advanced Bios Features
45
First Boot Device
46
Integrated Peripherals
50
Power Management Setup
57
Pc Health Status
61
