SurePOS 500 4846-XX5 Technical Reference
Page 39 of 63

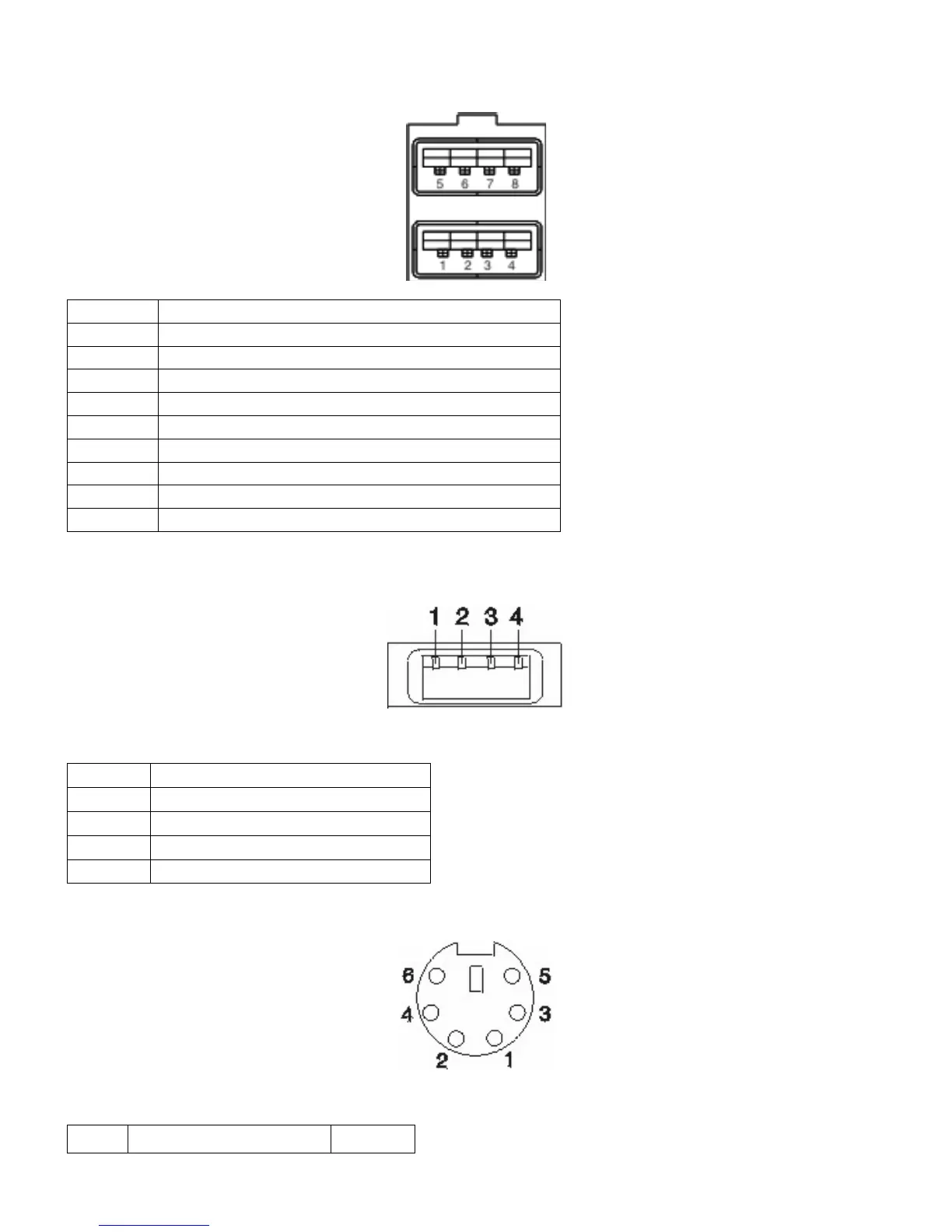

5.3.3
USB Plus Power (2x)
Pin Signal
Shell Shield
1 VBus
5V
2 D-
3 D+
4 Ground
5 Ground
6
Vplus (12V or 24V)
7
Vplus (12 or 24V)
8 Ground
5.3.4
USB port connector (7x)
Pin Connector
1 5V
VBus
2 -Data
3 +Data
4 Ground
5.3.5
Keyboard, Mouse connector (2x)
Pin Signal
I/O
38
40
