IBM System Storage TS3100 Installation Quick Reference Guide

4U Library Cartridge Magazines
The 4U library has four cartridge magazines, two on each side (see Figure 1-30 on page 1-26 and
Figure 1-31 on page 1-27). The upper left magazine has twelve storage slots. The lower left magazine has
nine storage slots and houses the 3-slot I/O Station (1 in Figure 1-30 on page 1-26). The upper right
magazine has twelve storage slots. The lower right magazine has twelve storage slots. For information on
Element Addressing, refer to the Setup, Operator, and Service Guide.
a77ug022

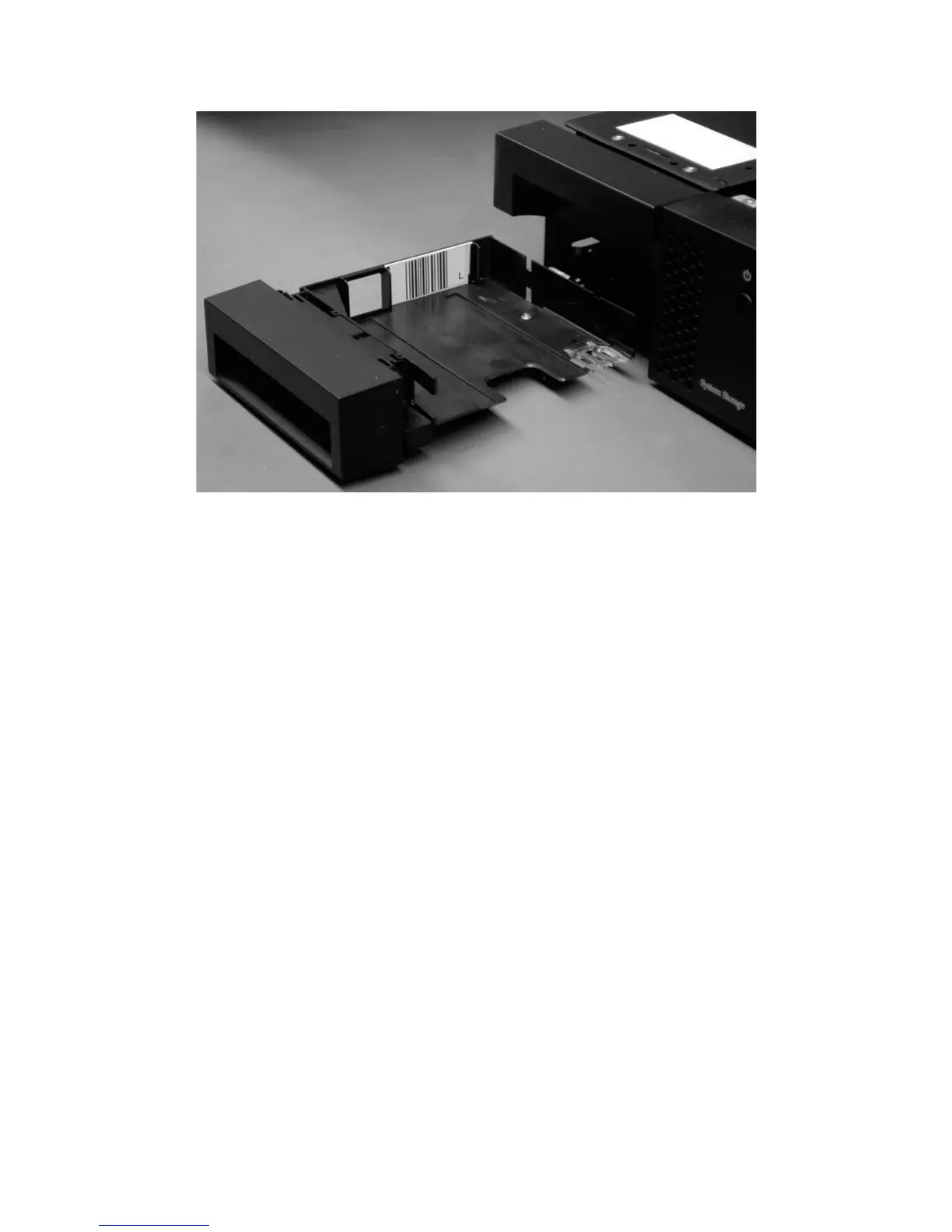

Figure 1-29. 2U library I/O Station in the left magazine
Installation 1-25

IBM System Storage TS3100 Specifications

General

Number of Tape Drives	1
Number of Tape Cartridges	24
Product Type	Tape Library
Operating Humidity	20% to 80% non-condensing
Interface	SAS
Supported Tape Drive Types	LTO Ultrium 5, LTO Ultrium 6
Tape Drive Technology	LTO Ultrium
