v Set the power-on password.
v Reconfigure the server.
See “Using the Configuration/Setup Utility program” on page 12 for details.

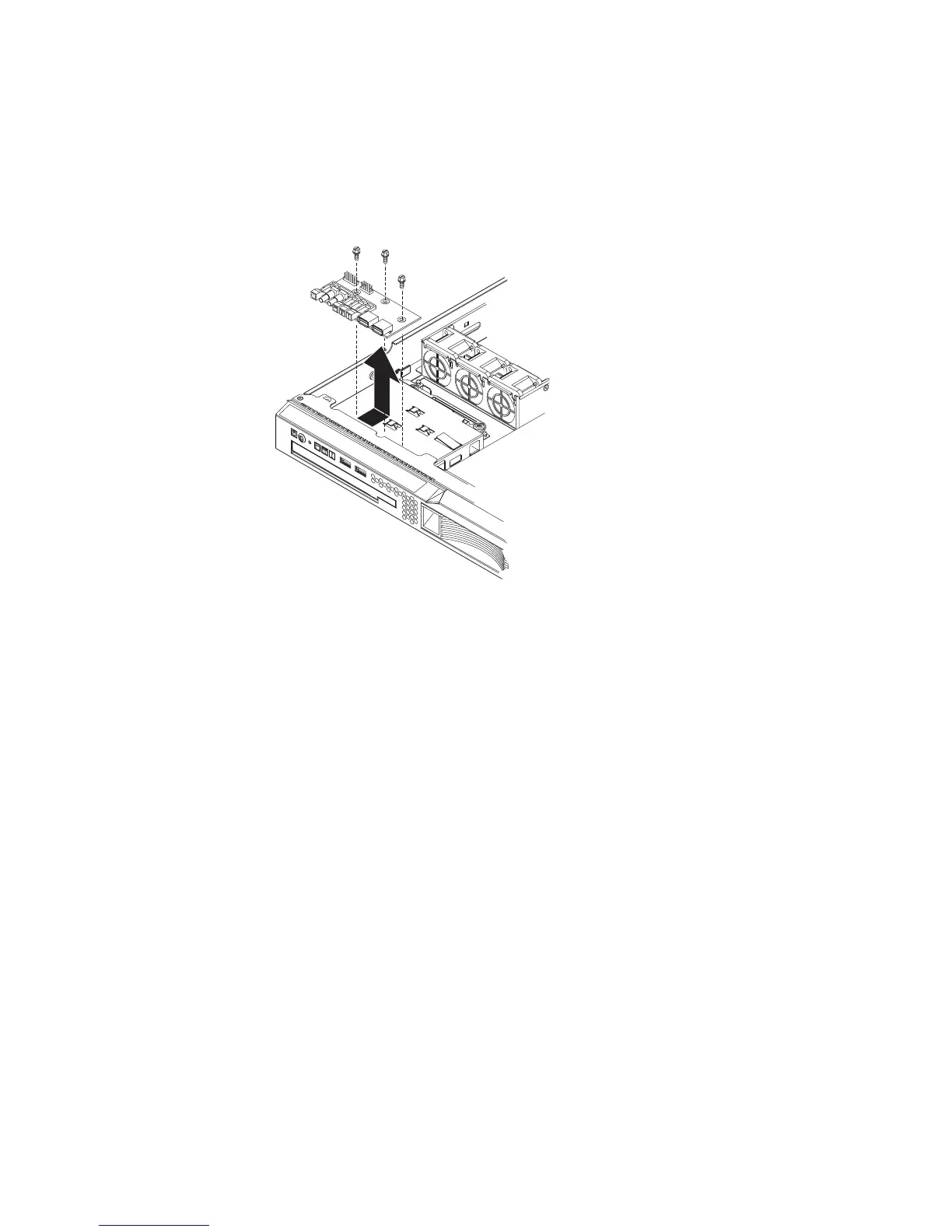

Removing the operator information panel assembly
To remove the operator information panel assembly, complete the following steps.
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 25.
2. Turn off the server and peripheral devices, and disconnect the power cords and
all external cables necessary to replace the device.
3. Remove the server from the rack and remove the cover (see “Removing the
cover” on page 28).
4. Disconnect both cables from the operator information panel board.
5. Remove the screws that secure the operator information panel assembly to the
CD/DVD bay housing.
6. Lift the operator information panel assembly out of the server.
7. If you are instructed to return the operator information panel assembly, follow all
packaging instructions, and use any packaging materials for shipping that are
supplied to you.
Installing the operator information panel assembly
To install the replacement operator information panel assembly, complete the
following steps:
1. Guide the operator information panel assembly into position on top of the
CD/DVD bay housing. Make sure that the LEDs and the USB connectors are
aligned with the openings in the bezel and that the holes in the board align with
the screw holes in the top of the bay housing.
2. Use the screws that you removed in step 5 of “Removing the operator
information panel assembly” to secure the operator information panel assembly
onto the top of the CD/DVD bay housing.
3. Connect the light panel cable and front USB cable to the operator information
panel board.
Chapter 4. Removing and replacing server components 45
