IBM System x3550 M4 User Manual

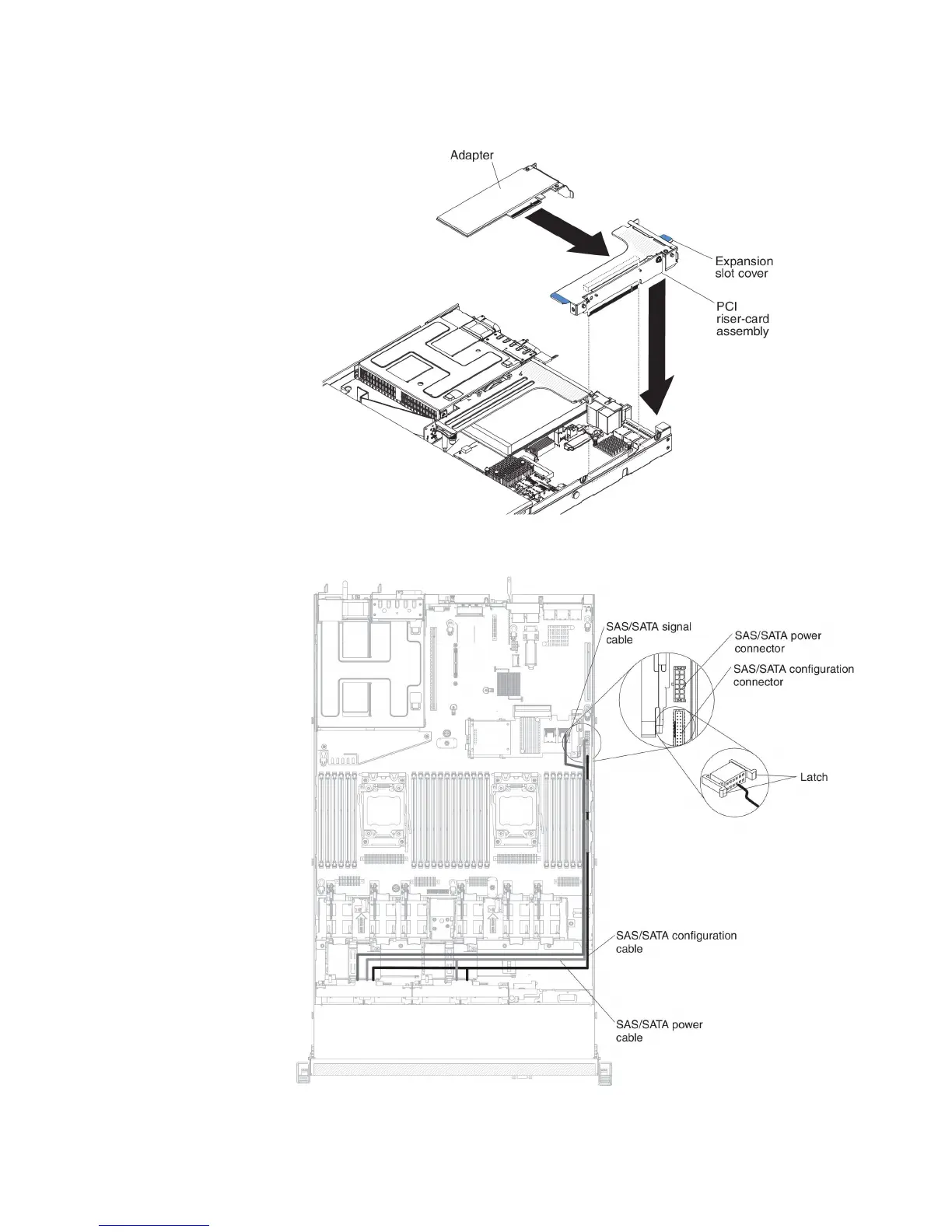

b. Insert the SAS/SATA adapter into the PCI riser cards. (see “Installing an
adapter” on page 67).
8. Route the backplane signal cables (see “Internal cable routing and connectors”
on page 41).
9. Connect the signal cables to the SAS/SATA adapter:
Chapter 2. Installing optional devices 73

IBM System x3550 M4 Specifications

General

Brand	IBM
Model	System x3550 M4
Category	Server
Language	English
