Major components of the server
Blue on a component indicates touch points, where you can grip the component to
remove it from or install it in the server, open or close a latch, and so on.
Orange on a component or an orange label on or near a component indicates that
the component can be hot-swapped, which means that if the server and operating
system support hot-swap capability, you can remove or install the component while
the server is running. (Orange can also indicate touch points on hot-swap
components.) See the instructions for removing or installing a specific hot-swap
component for any additional procedures that you might have to perform before you
remove or install the component.

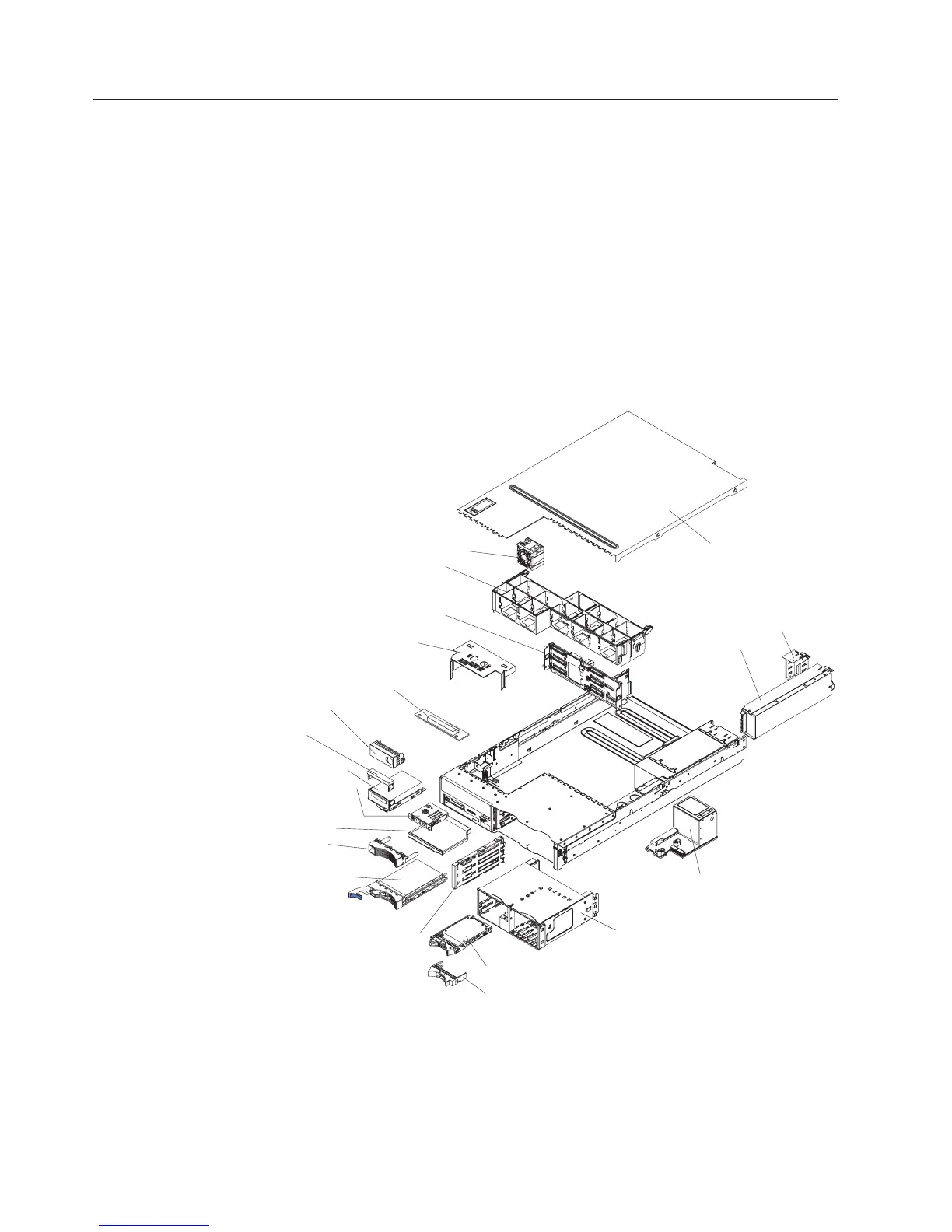

The following illustrations show the major components in the server.
Note: The illustrations in this document might differ slightly from your hardware.
Cover
Power-supply filler
Power supply
Power backplane
2.5-inch drive cage with
hard disk drive backplane
2.5-inch hard
disk drive
2.5-inch filler
panel
3.5-inch cage
divider
3.5-inch hard
disk drive
3.5-inch
filler panel
Operator information
panel
CD/DVD drive
Optional tape drive
Tape drive filler
Tape drive
space filler
Microprocessor
air baffle
CD/DVD media backplane
3.5-inch hard disk
drive backplane
Fan bracket
assembly
Fans
(5 or 10)
6 IBM System x3650 Type 7979: Installation Guide
