Chapter 3. Server controls, LEDs, and power
This section describes the controls and light-emitting diodes (LEDs) and how to turn
the server on and off.
Front view

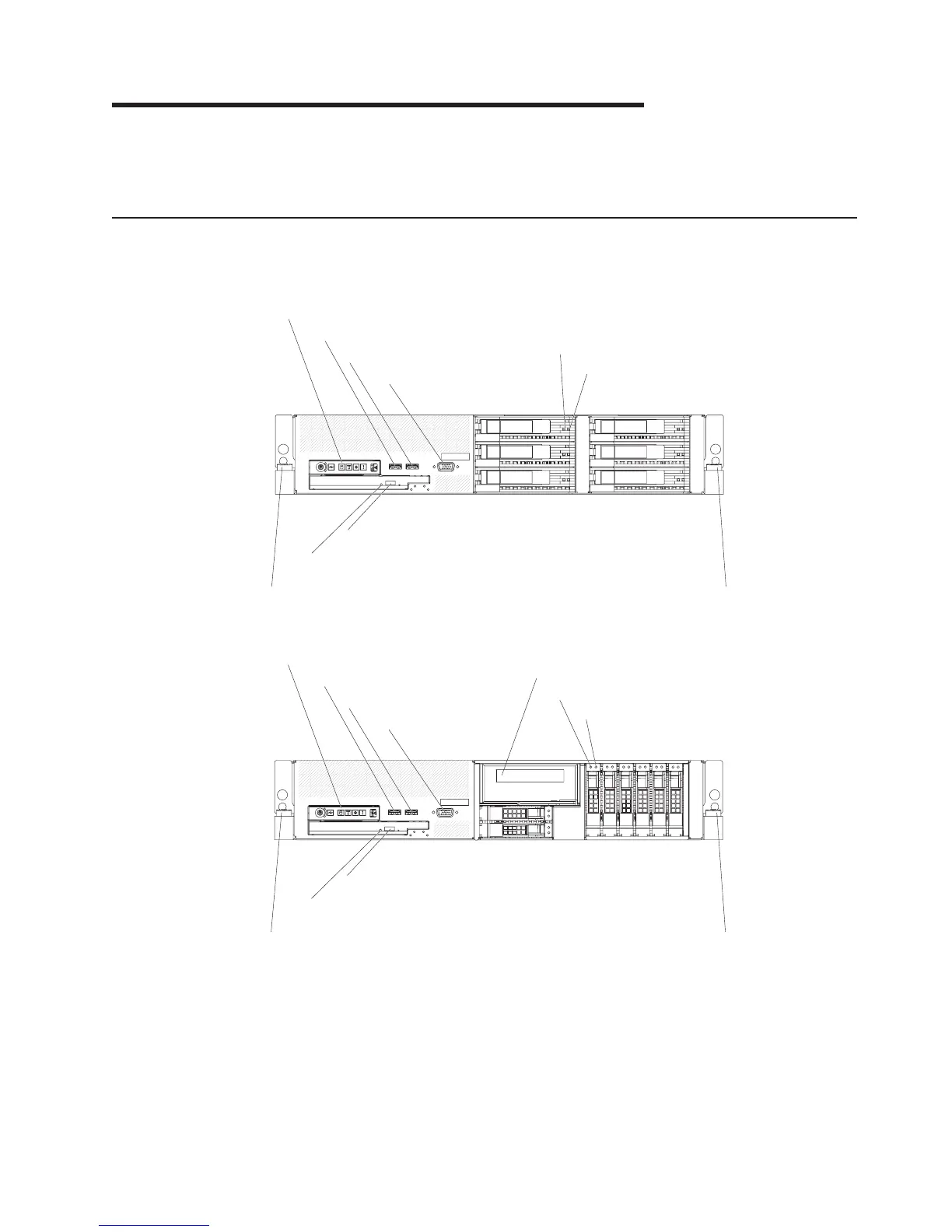

The following illustration shows the controls, light-emitting diodes (LEDs), and
connectors on the front of the 3.5-inch model server.
Operator information panel
USB 5 connector
USB 6 connector
Video connector
Rack release latch Rack release latch
CD/DVD drive activity LED
CD/DVD eject button
Hard disk drive activity LED (green)
Hard disk drive status LED (amber)
The following illustration shows the controls, light-emitting diodes (LEDs), and
connectors on the front of the 2.5-inch model server.
Operator information panel
USB 5 connector
USB 6 connector
Video connector
Rack release latch Rack release latch
CD/DVD drive activity LED
CD/DVD eject button
Hard disk drive activity LED (green)
Tape drive bay
Hard disk drive status LED (amber)
Operator information panel: This panel contains controls, LEDs, and connectors.
The following illustration shows the controls, LEDs, and connectors on the operator
information panel.
© Copyright IBM Corp. 2007 35
