Access holes
Release tabs
5. Slide the expansion-slot cover out of the PCI low-profile expansion slot or PCI
riser-card assembly expansion slot.

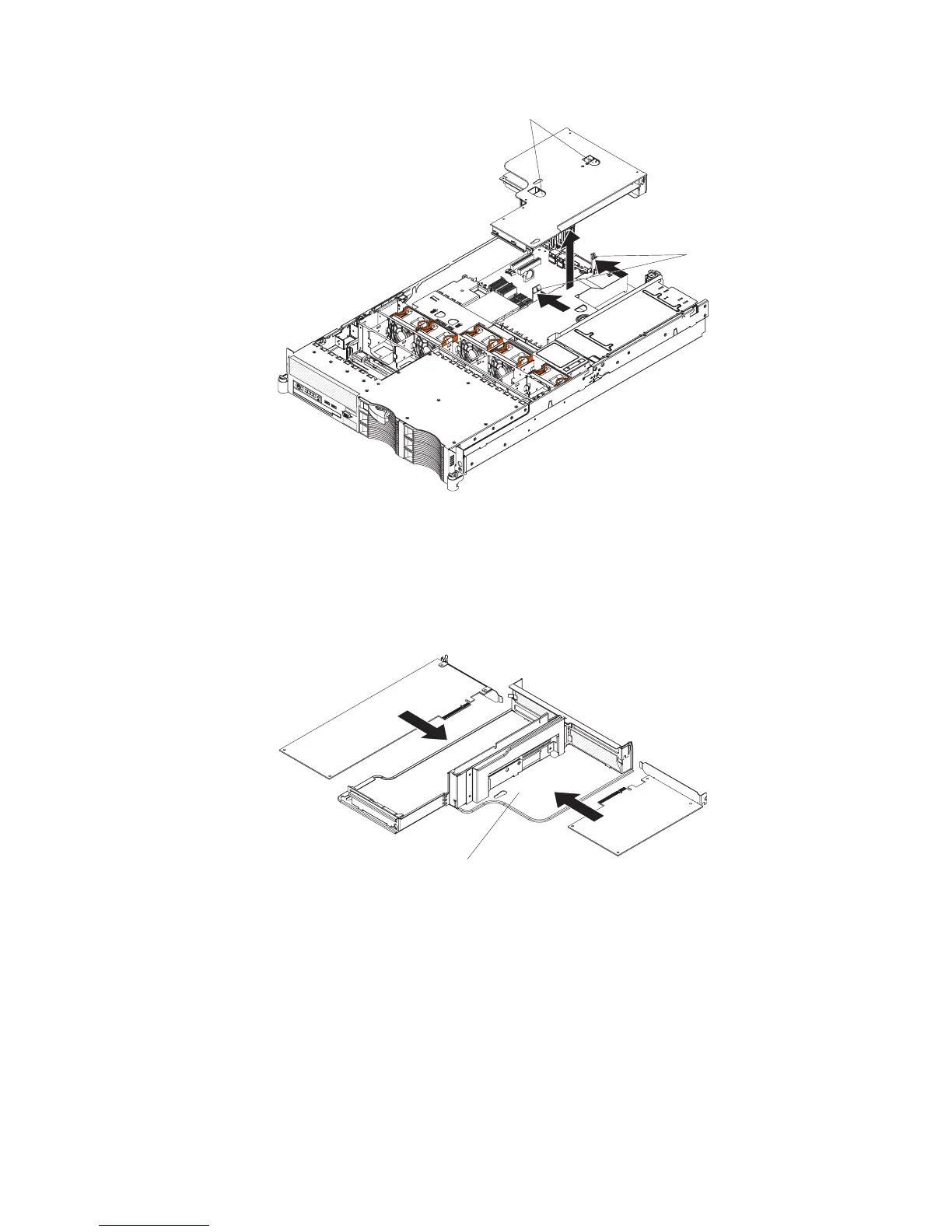

6. Install the adapter. The following illustration shows how to install an adapter in a
PCI slot on the riser-card assembly.
Note: For clarity, the PCI riser-card assembly is shown inverted in the following
illustration.
Inverted riser assembly
7. If you removed the PCI riser-card assembly to install the adapter, align the
riser-card assembly with the release-tab posts, rear guides, and connector;
then, press the PCI riser-card assembly firmly into the connector.
