IBM THINKCENTER 8128 User Manual

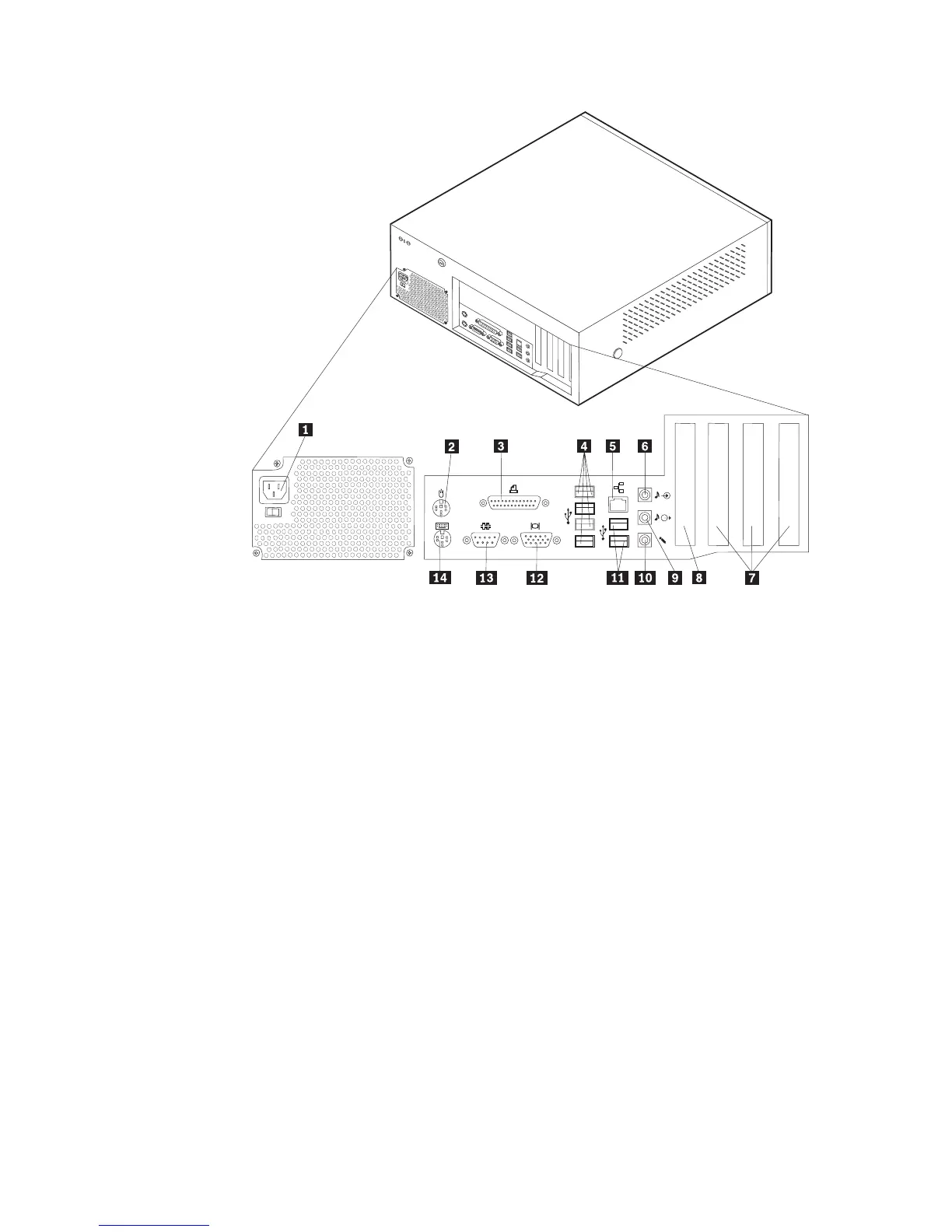

1Power connector 8AGP adapter connector
2Mouse connector 9Audio line out connector
3Parallel connector 10Microphone connector
4USB connectors 11USB connectors
5Ethernet connector 12VGA monitor connector
6Audio line in connector 13Serial connector
7PCI adapter connectors 14Keyboard connector
Note: Some connectors on the rear of the computer are color-coded to help you to
determine where to connect the cables on the computer.
28 Hardware Maintenance Manual
