IBM THINKCENTER 8128 User Manual

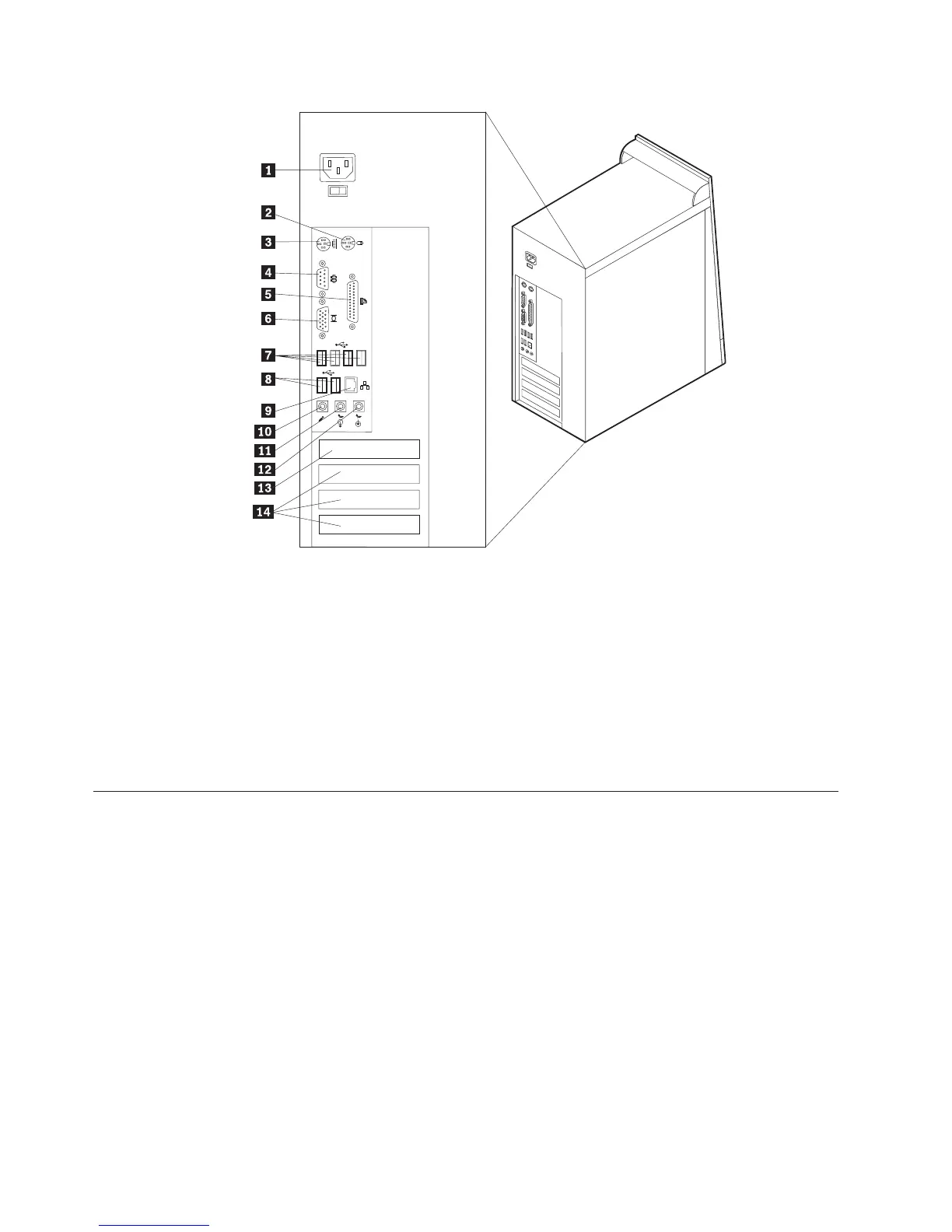

1Power connector 8USB connectors
2Mouse connector 9Ethernet connector
3Keyboard connector 10Microphone connector
4Serial connector 11Audio line out connector
5Parallel connector 12Audio line in connector
6VGA monitor connector 13AGP adapter connector
7USB connectors 14PCI adapter connectors
Note: Some connectors on the rear of the computer are color-coded to help you to
determine where to connect the cables on the computer.
Removing the cover
Important: Read“Safety information” on page 247 and“Handling electrostatic
discharge-sensitive devices” on page 250 before removing the cover.
Types 8185, 8186, 8192, 8413, and 8430
1. Shut down your operating system, remove any media (diskettes, CDs, or tapes)
from the drives, and turn off all attached devices and the computer.
2. Unplug all power cords from electrical outlets.
3. Disconnect all cables attached to the computer. This includes power cords,
input/output (I/O) cables, and any other cables that are connected to the
computer.
4. Press the buttons on the sides of the computer and pivot the rear end of the
cover up toward the front of the computer.
30 Hardware Maintenance Manual
