Types 8196 and 8197
1. Shut down your operating system, remove any media (diskettes, CDs, or tapes)
from the drives, and turn off all attached devices and the computer.
2. Unplug all power cords from electrical outlets.
3. Disconnect all cables attached to the computer. This includes power cords,
input/output (I/O) cables, and any other cables that are connected to the
computer.

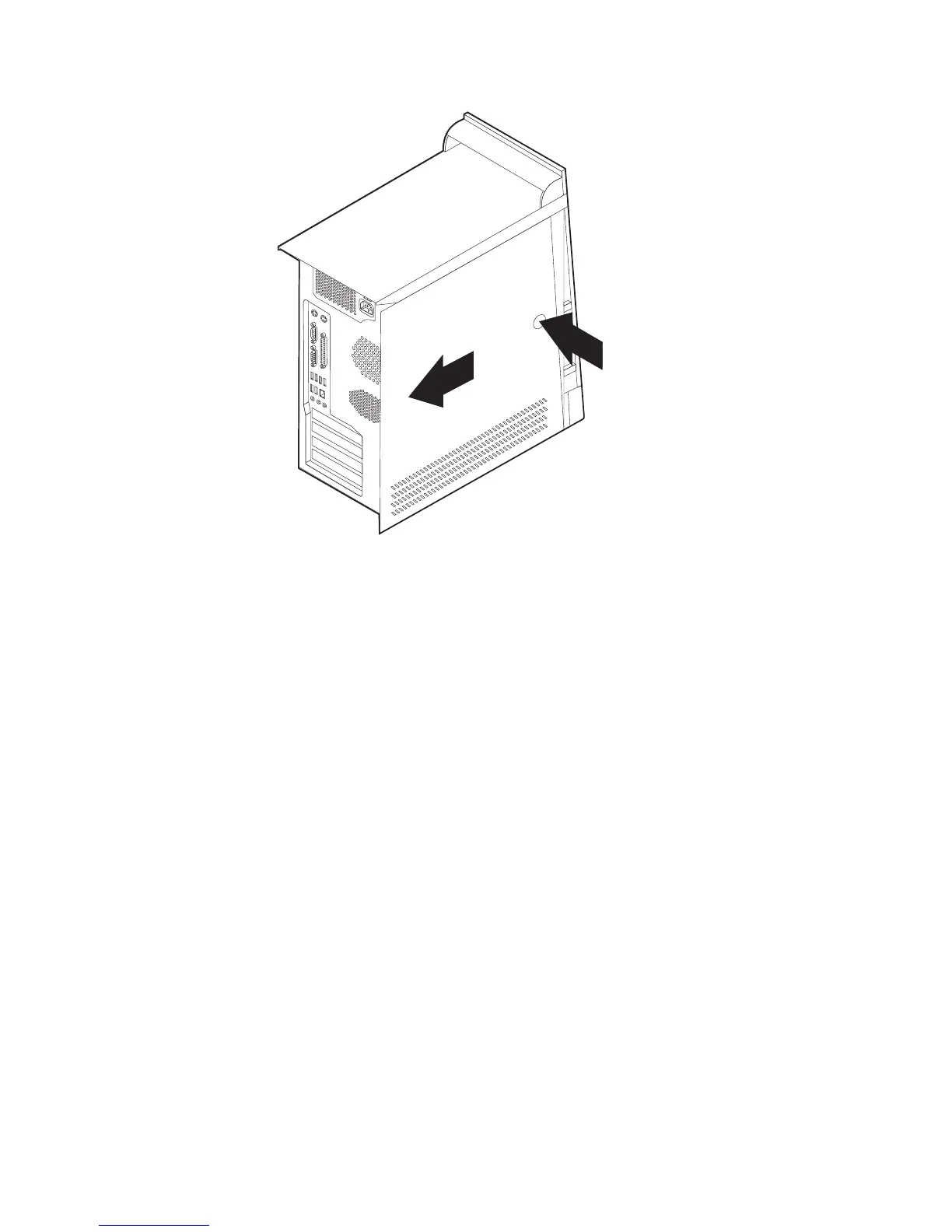

4. Remove the two screws at the rear of the left side cover and slide the cover to
the rear to remove.
32 Hardware Maintenance Manual
