9. Clear any cables that might impede the replacement of the drive bays.
10. Replace the support bar and pivot the two drive bays back to their original
positions.
11. Go to “Replacing the cover and connecting the cables” on page 63.
Types 8128, 8187, 8188, 8193, 8414, and 8431
These type computers have three expansion slots for PCI adapters and one slot
used for an AGP adapter. You can install an adapter up to 340 mm (13.4 inches)
long.

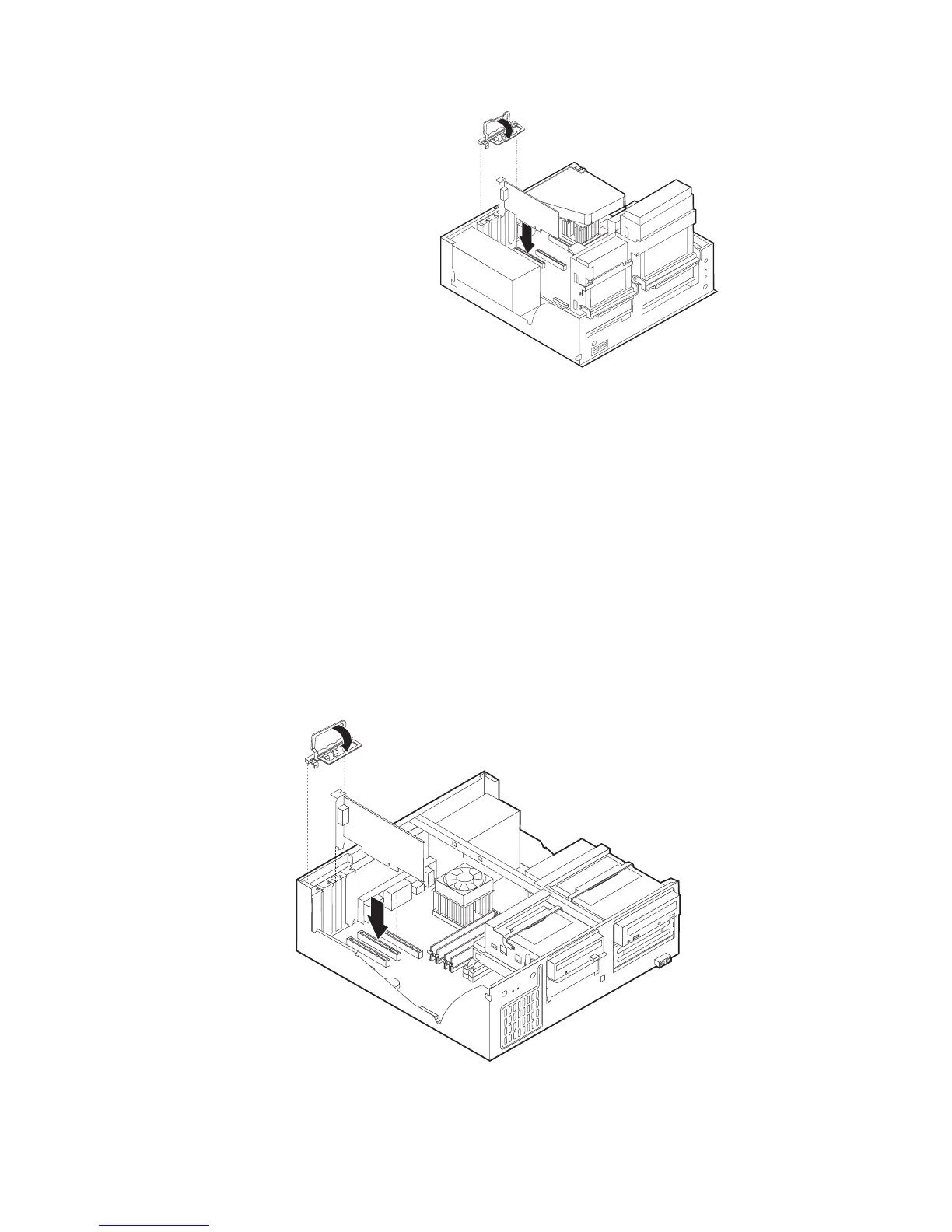

1. Remove the cover. See “Removing the cover” on page 30.
2. Remove the adapter-slot-cover latch.
3. Remove the adapter being replaced.
4. Remove the new adapter from its static-protective package.
5. Install the adapter into the appropriate slot on the system board.
6. Install the adapter-slot-cover latch.
7. Go to “Replacing the cover and connecting the cables” on page 63.
Chapter 6. Replacing FRUs 41
