Locating components
Types 8185, 8186, 8192, 8413, and 8430

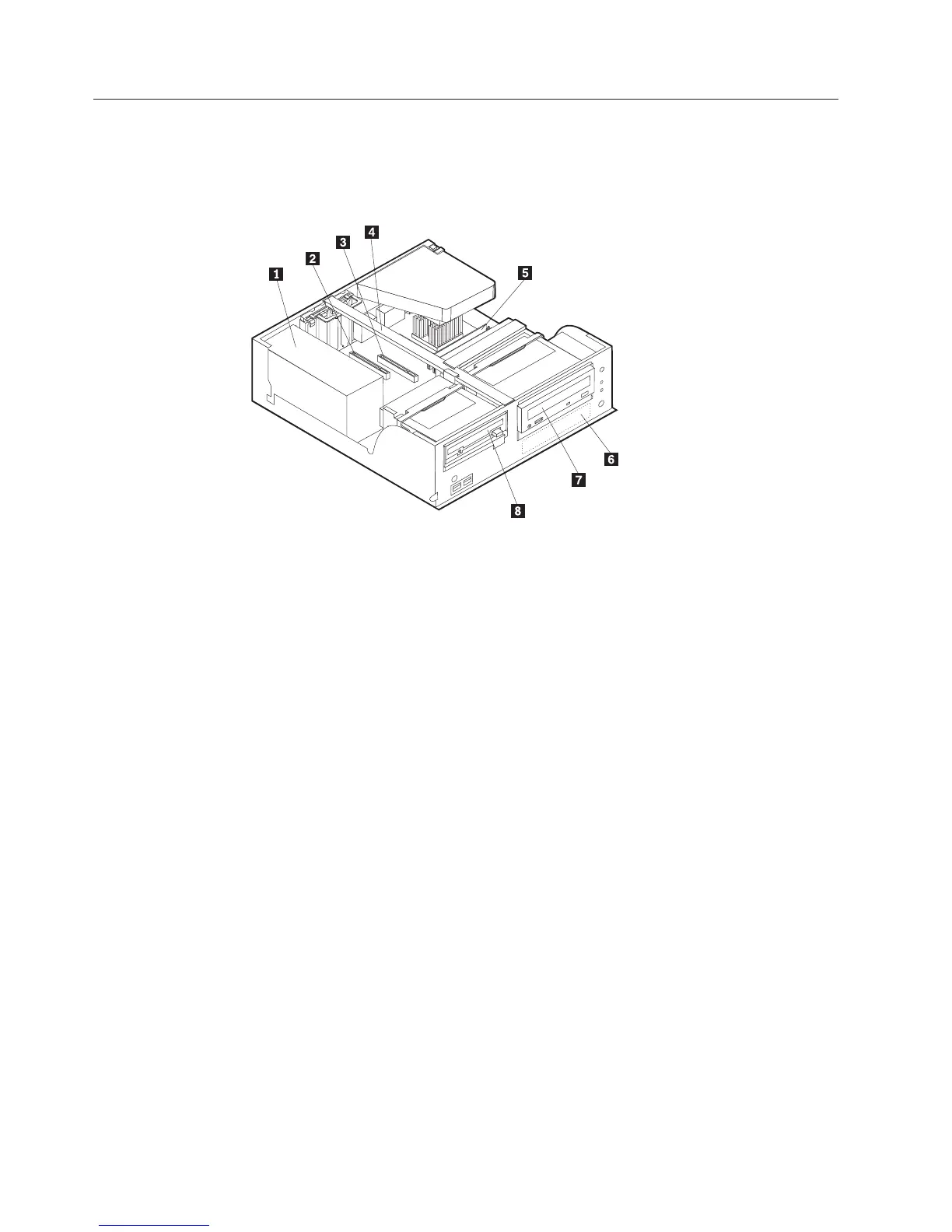

The following illustration will help you locate the various components in the
computer.
1Power supply 5Memory connector
2PCI adapter connector 6Hard disk drive
3AGP adapter connector 7Optical drive
4Support bar 8Diskette drive
34 Hardware Maintenance Manual
