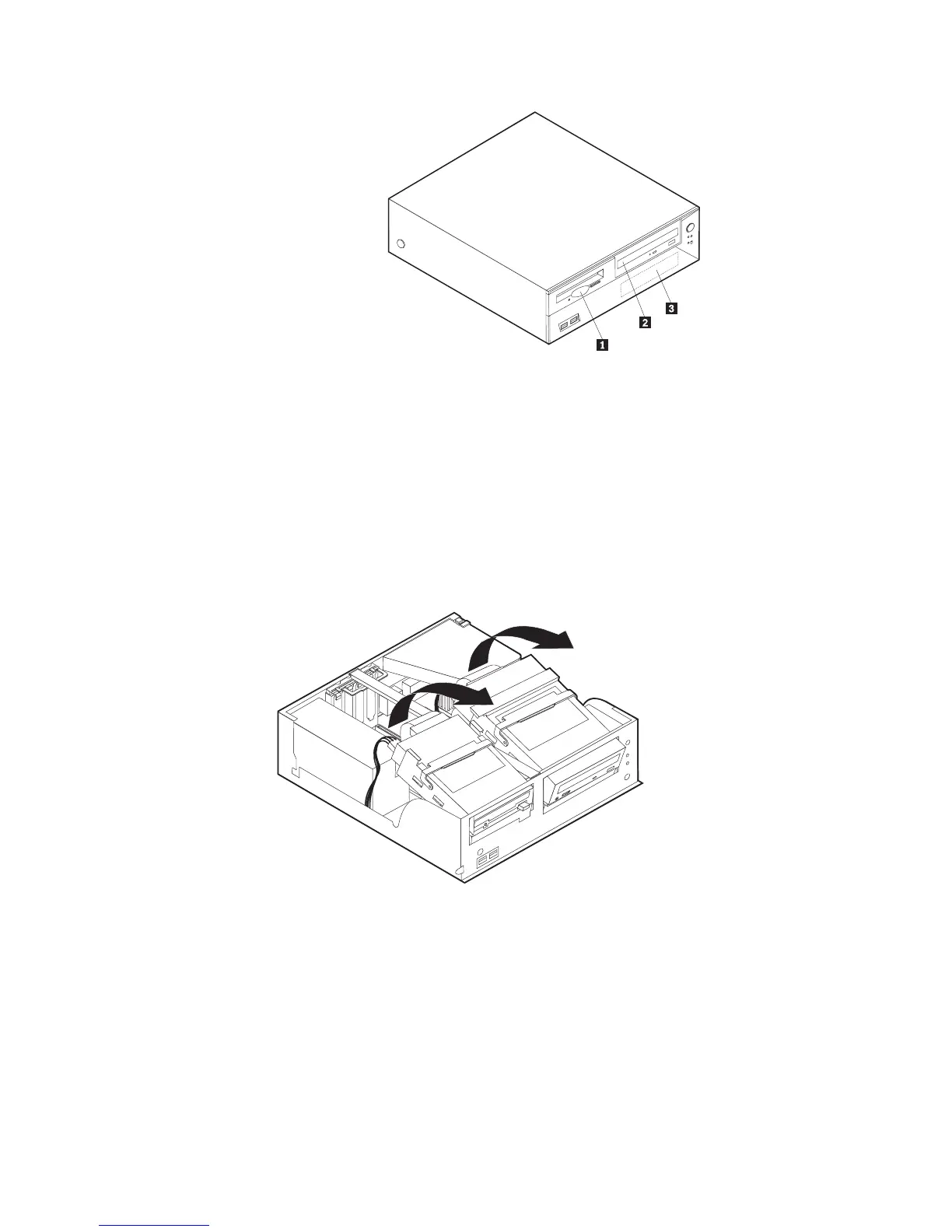

The following list describes some of the drives that you can install in each bay and
their height requirements:
Bay 1 and Bay 3 - Maximum height: 25.8 mm (1.0 in.)
Bay 2 - Maximum height: 43.0 mm (1.7 in.)
Removing a drive
1. Remove the cover. See “Removing the cover” on page 30.
2. Pivot the drive-bay latch handle toward the front of the computer and then
pivot the drive-bay cages upward, as shown, until latched in the upright
position.
3. Disconnect the signal cable and power supply cable from the drive being
replaced.
Note: Take note of the location of any cables you disconnect. You might have
to disconnect cables to other drives to gain access to the drive you are
removing.
4. For the hard disk drive and the CD drive, you can lift the tray out of the
computer.
44 Hardware Maintenance Manual
