Locating the connectors on the rear
Types 8185, 8186, 8192, 8413, and 8430

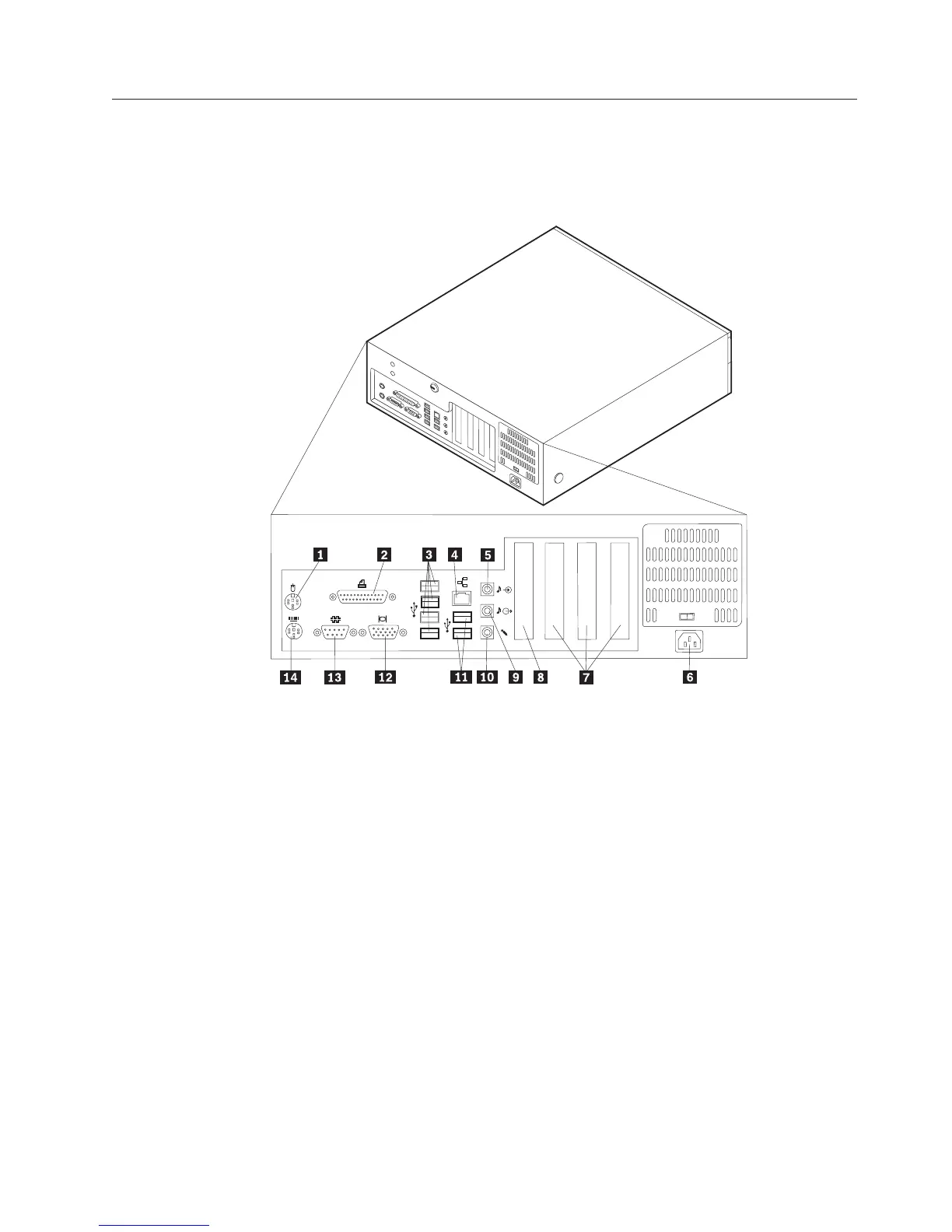

The following illustration shows the locations of the connectors on the rear of the
computer.
1Mouse connector 8AGP adapter connector
2Parallel connector 9Audio line out connector
3USB connectors 10Microphone connector
4Ethernet connector 11USB connectors
5Audio line in connector 12VGA monitor connector
6Power connector 13Serial connector
7PCI adapter connectors 14Keyboard connector
Note: Some connectors on the rear of the computer are color-coded to help you to
determine where to connect the cables on the computer.
Types 8128, 8187, 8188, 8193, 8414, and 8431
The following illustration shows the locations of the connectors on the rear of the
computer.
Chapter 6. Replacing FRUs 27
