IBM THINKCENTER 8128 User Manual

Types 8189, 8190, 8194, 8195, 8415, 8432, and 8433

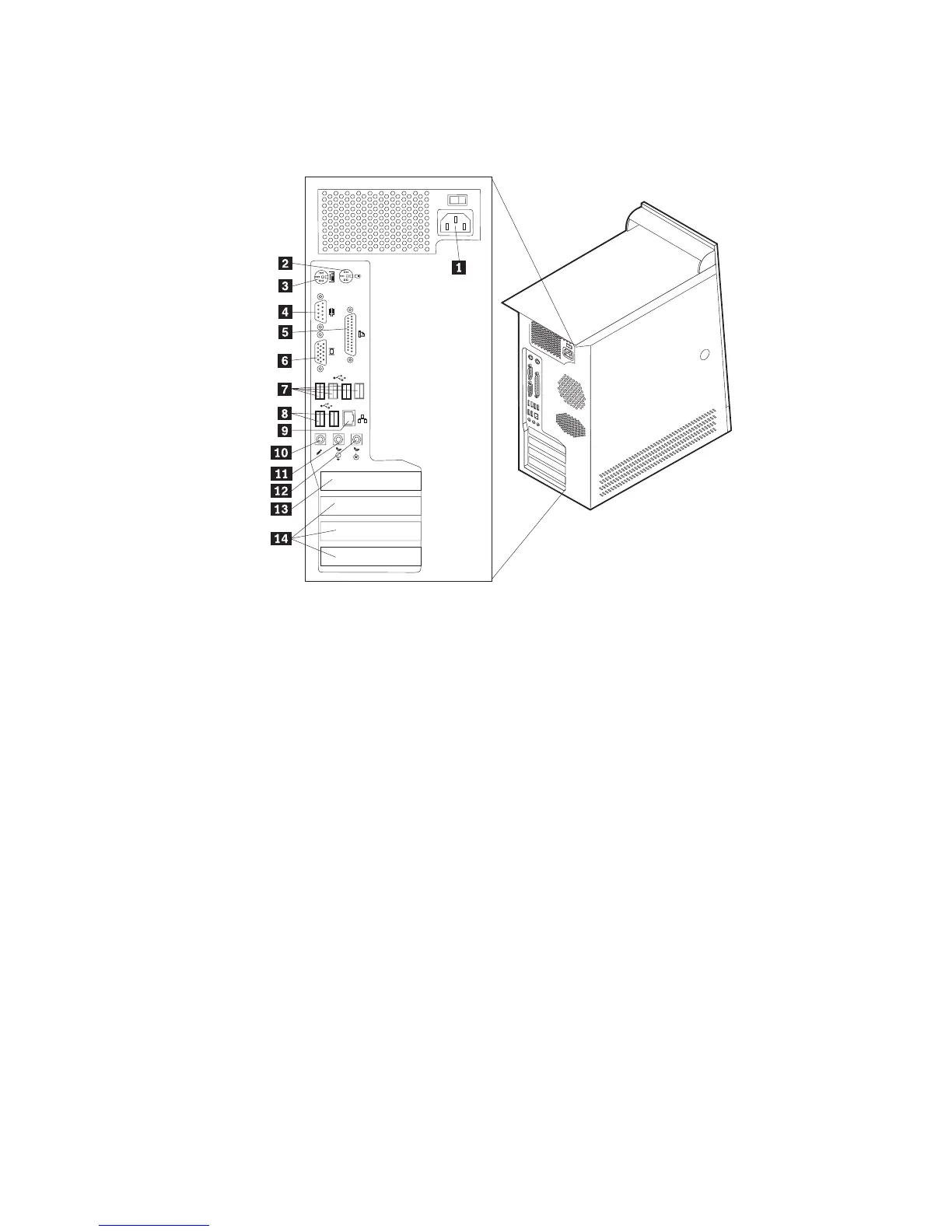

The following illustration shows the locations of the connectors on the rear of the
computer.
1Power connector 8USB connectors
2Mouse connector 9Ethernet connector
3Keyboard connector 10Microphone connector
4Serial connector 11Audio line out connector
5Parallel connector 12Audio line in connector
6VGA monitor connector 13AGP adapter connector
7USB connectors 14PCI adapter connectors
Note: Some connectors on the rear of the computer are color-coded to help you to
determine where to connect the cables on the computer.
Types 8196 and 8197
The following illustration shows the locations of the connectors on the rear of the
computer.
Chapter 6. Replacing FRUs 29
