IBM ThinkPad R50e Series

1160 VGA and Ultrabay Enhanced
device eject button cable

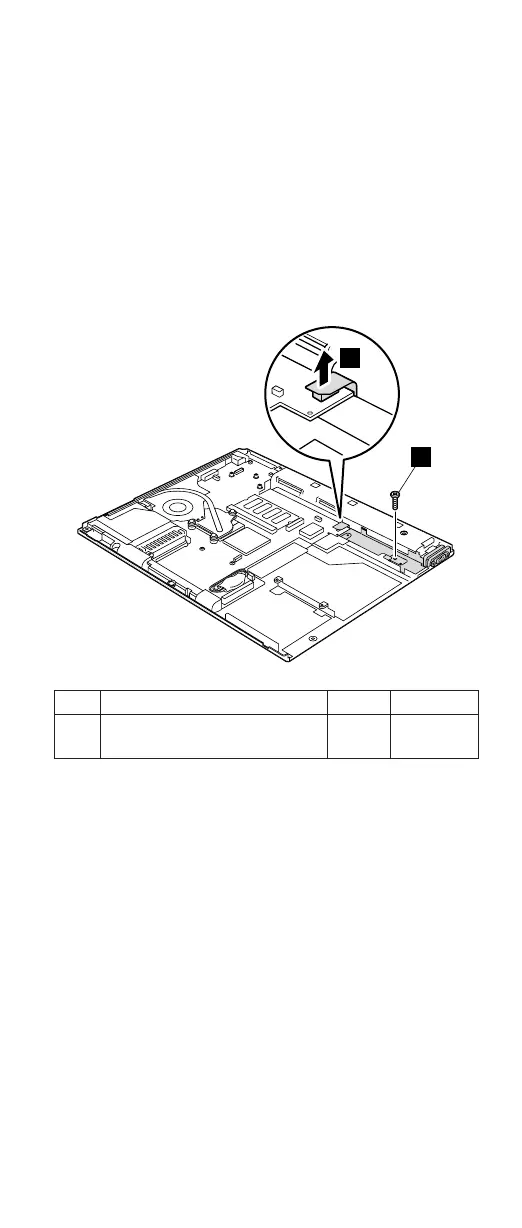

For access, remove these FRUs in order:
v “1010 Battery pack” on page 65
v “1050 Ultrabay device” on page 73
v “1020 Hard disk drive” on page 66
v “1040 Keyboard” on page 69
v “1080 Keyboard bezel” on page 77
v “1140 Ultrabay Enhanced shield kit” on page 89
v “1150 LCD assembly” on page 95
1
2
Step Screw (quantity) Color Torque
2 M2 × 4 mm, flat-head,
nylon-coated (1)
Black 0.245 Nm
(2.5
kgfcm)
When installing: Make sure that the connector 1 is
firmly attached.
(continued)
Removing and replacing a FRU
ThinkPad R50e Series 99
