IBM ThinkPad R50e Series

1090 Fan assembly
For access, remove these FRUs in order:
v “1010 Battery pack” on page 65
v “1020 Hard disk drive” on page 66
v “1040 Keyboard” on page 69
v “1080 Keyboard bezel” on page 77
3
1
2
Step Screw (quantity) Color Torque
1 M2 × 10 mm, flat-head,
nylon-coated (3)
Black 0.245 Nm
(2.5
kgfcm)
When installing:
1. Make sure that the connector 3 is firmly attached.
2. Apply thermal grease on the part marked a in this
figure.
a

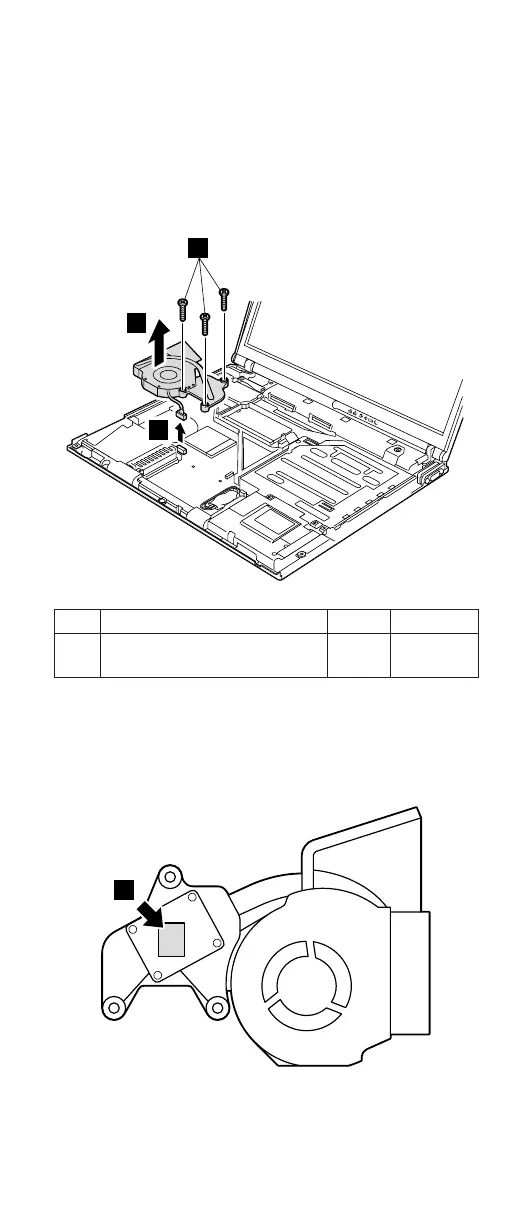

(Bottom view of the fan assembly)
