IBM ThinkPad R50e Series

1100 CPU
For access, remove these FRUs in order:
v “1010 Battery pack” on page 65
v “1020 Hard disk drive” on page 66
v “1040 Keyboard” on page 69
v “1080 Keyboard bezel” on page 77
v “1090 Fan assembly” on page 81

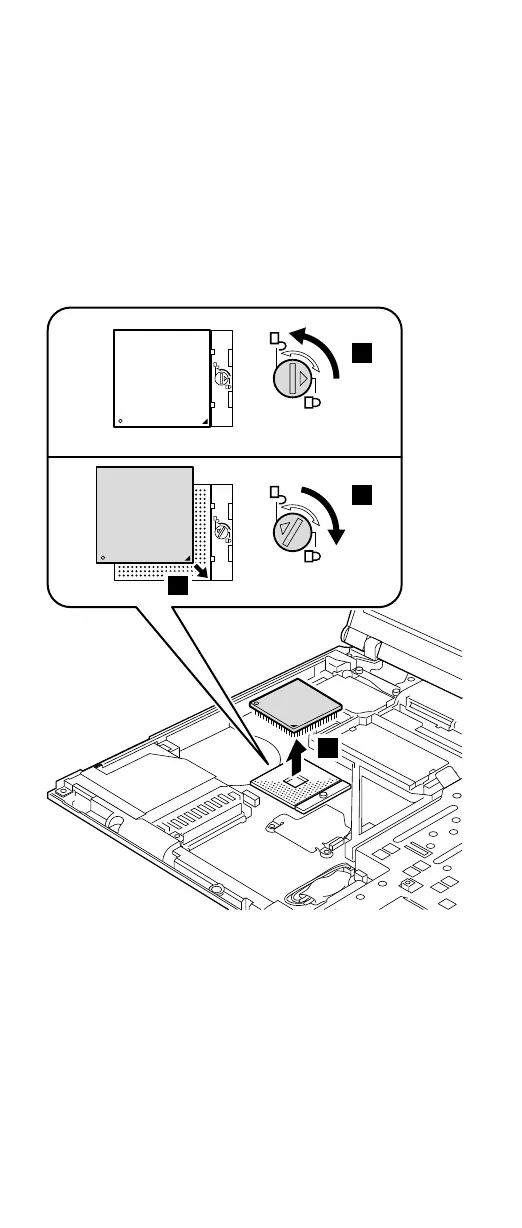

Rotate the head of the screw in the direction of arrow 1
to release the lock; then remove the CPU 2.
2
1
b
a
When installing: Place the CPU on the CPU socket a,
and then rotate the head of the screw in
the direction of arrow b to secure the
CPU.
Removing and replacing a FRU
82 R50e (MT1834, 1842)
