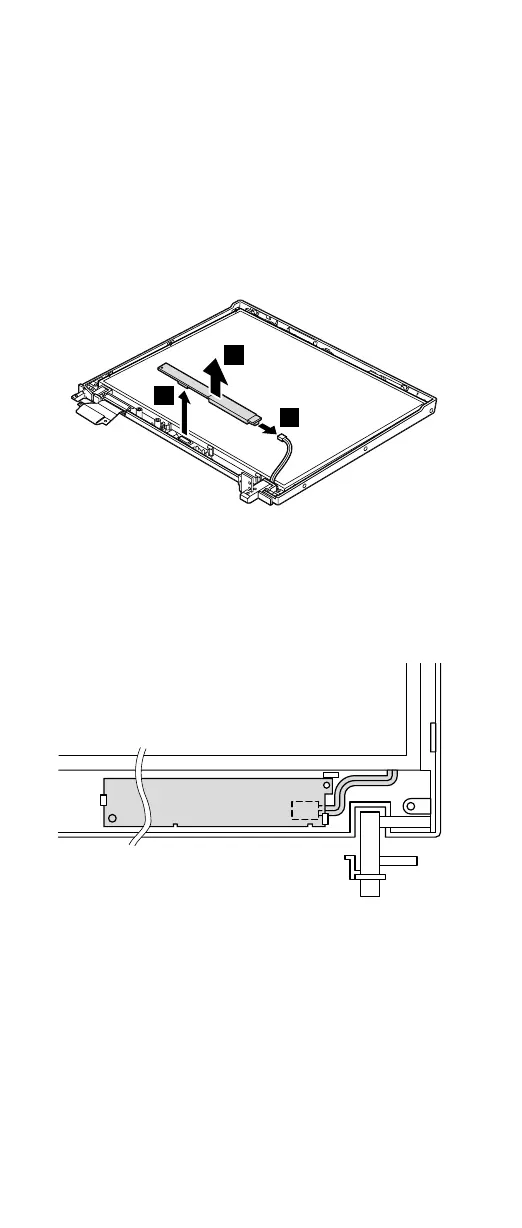

2020
Inverter
card
For
access,
remove
these
FRUs
in
order:
v
“1010
Battery
pack”
on
page
65
v
“1020
Hard
disk
drive”
on
page
66
v
“1040
Keyboard”
on
page
69
v
“1080
Keyboard
bezel”
on
page
77
v
“1140
Ultrabay
Enhanced
shield
kit”
on
page
89
v
“1150
LCD
assembly”
on
page
95
v
“2010
LCD
front
bezel”
on
page
108
1
2
3
When
installing:
Make
sure
that
connectors
2
and
3
are
firmly
attached.
Cable
routing:
When
replacing
the
inverter
card,
route
the
connector
cable
as
in
this
figure:
Removing
and
replacing
a
FRU
110
R50e
(MT1834,
1842)
