IBM ThinkPad R50e Series

2030 LCD panel, LCD cable assembly,
hinges, and LCD cover
For access, remove these FRUs in order:
v “1010 Battery pack” on page 65
v “1020 Hard disk drive” on page 66
v “1040 Keyboard” on page 69
v “1050 Ultrabay device” on page 73
v “1080 Keyboard bezel” on page 77
v “1140 Ultrabay Enhanced shield kit” on page 89
v “1150 LCD assembly” on page 95
v “2010 LCD front bezel” on page 108
v “2020 Inverter card” on page 110

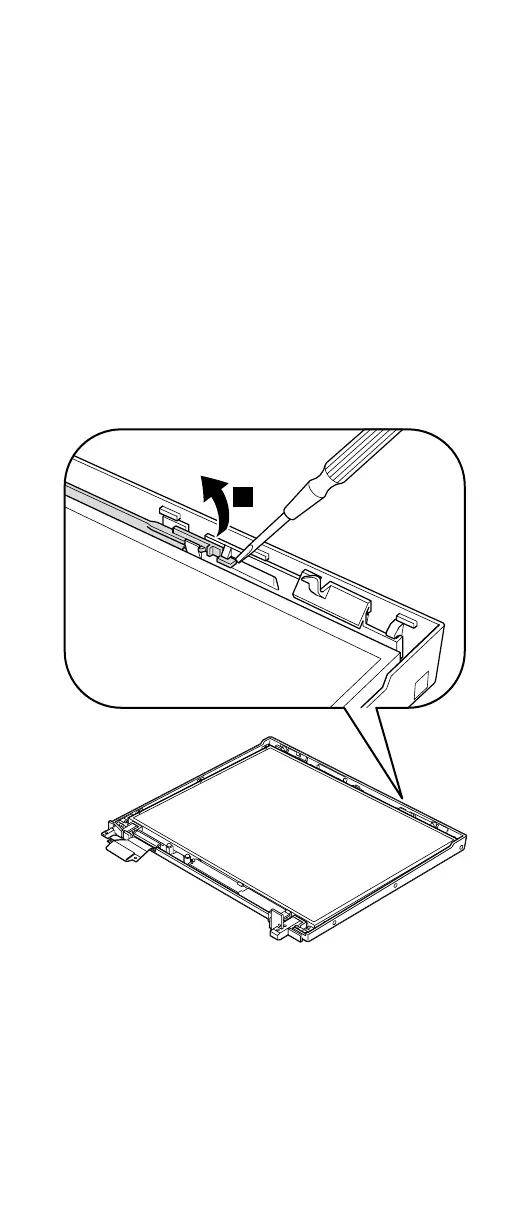

Before removing the LCD panel, remove the left latch first.
In step 1, unlatch the latch bar as in this figure.
1
(continued)
