IBM ThinkPad R50e Series

1050 Ultrabay device
For access, remove these FRUs in order:
v “1010 Battery pack” on page 65
v “1040 Keyboard” on page 69

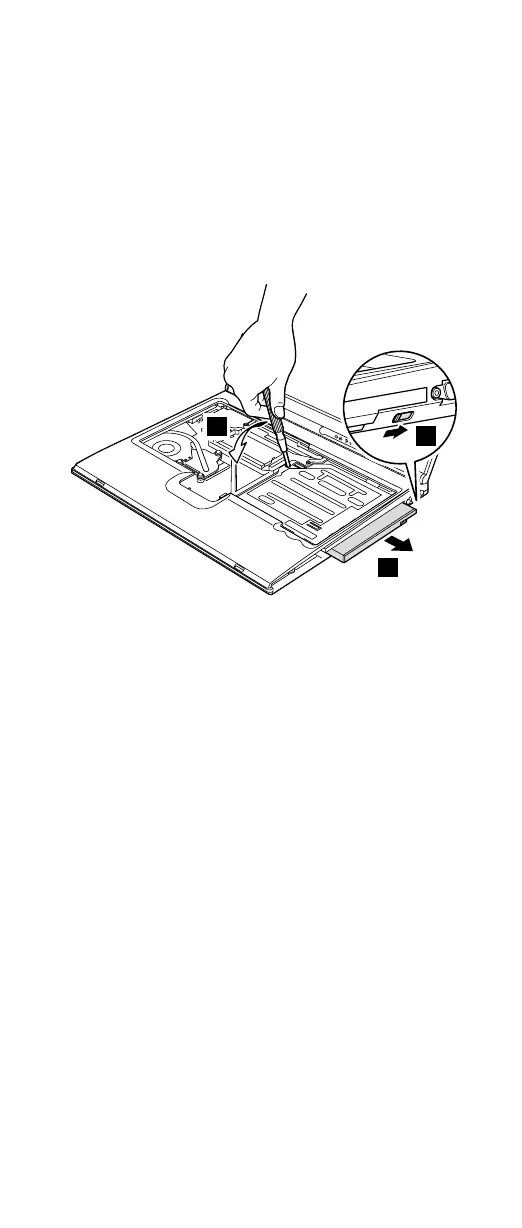

Holding the switch in the direction of arrow 1, and push
the Ultrabay device out from the bay by using a
screwdriver 2 as in this figure. Then pull out the Ultrabay
device with your hand 3.
2
1
3
Removing and replacing a FRU
ThinkPad R50e Series 73
