To reposition the leader pin:
1. Slide open the cartridge door (▌1▐ in Figure 19) and locate the leader pin ▌2▐ (you might need to
shake the cartridge gently to roll the pin toward the door).
2. With plastic or blunt-end tweezers, grasp the leader pin and position it in the pin-retaining spring
clips ▌3▐.
3. Press the leader pin gently into the clips until it snaps into place and is firmly seated.
4. Close the cartridge door.
5. To rewind the tape, insert the cartridge manual rewind tool (▌1▐ in Figure 20 on page 49) into the
cartridge's hub ▌2▐ and turn it clockwise until the tape becomes taut.

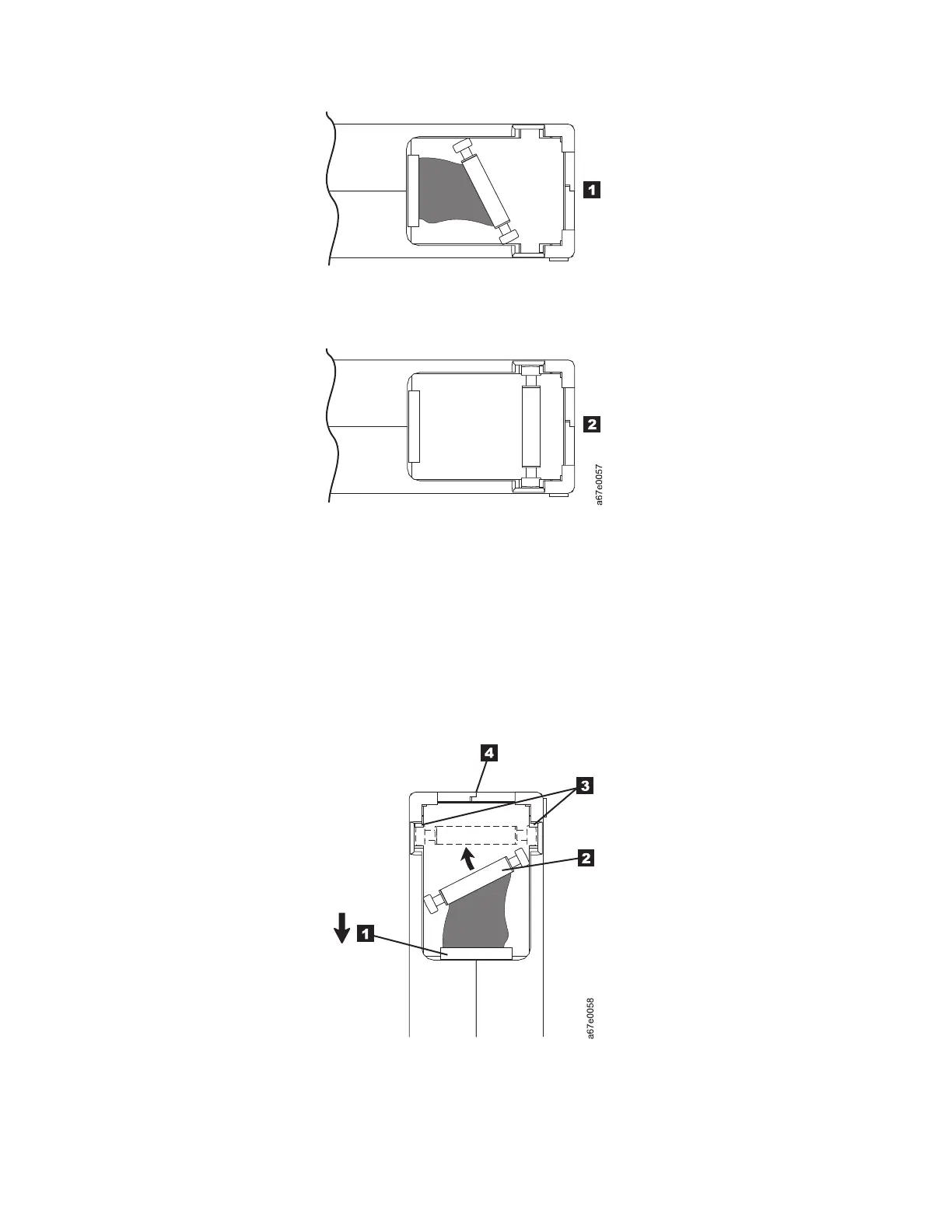

Figure 18. Leader pin in the incorrect and correct positions. The cartridge door is open and the leader pin is visible
inside the cartridge.
Figure 19. Placing the dislodged leader pin into the correct position. The cartridge door is open to show the leader pin.
48 IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S
