In another example, for a rack that is installed at the same time as a heat
exchanger, or in cases where a rack is moved to install new floor tiles under it,
Heat exchanger
(male coupling)
Return hose assembly
(female)
Raised floor
Heat exchanger
(female coupling)
Supply hose
assembly (male)
xiv10131

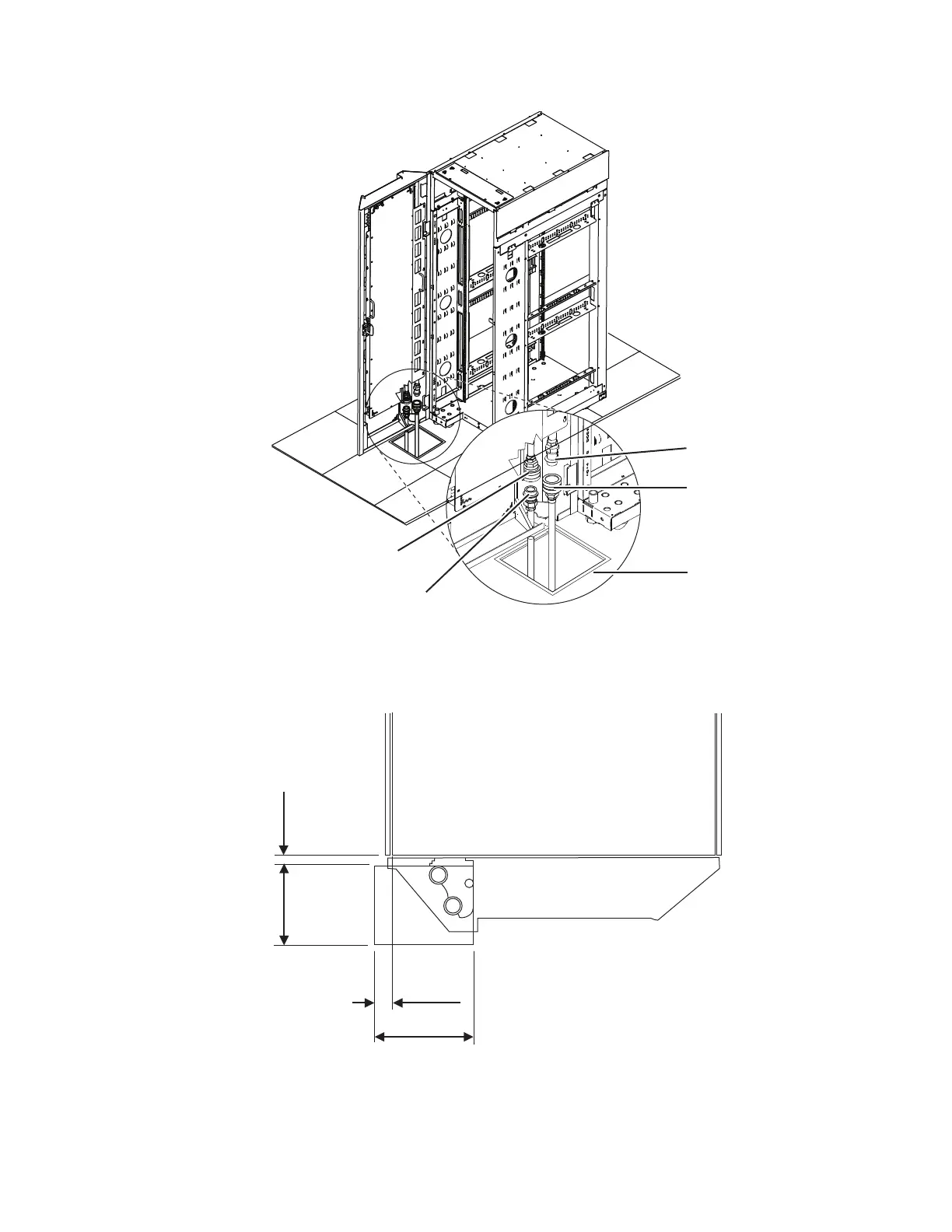

Figure 27. Raised-floor hose management example 1: hose exit through floor tile at the door
hinge
190.5 mm
7.500 in.
33.4 mm
1.315 in.
152.4 mm
6.000 in.
21.6 mm
0.850 in.
xiv10132
Figure 28. Raised-floor hose management example 1: tile cutout size and position
Chapter 10. Planning for the rear-door heat exchanger 85
