Redundant configuration with minimum cabling and paths to all
interface modules
Figure 15 on page 58 illustrates a redundant configuration with minimum cabling
and paths from each host LUN to all six interface modules. In this configuration:
v Each host is equipped with dual HBAs. Each HBA (or HBA port) is connected to
one of two Fibre Channel switches.
v Each Fibre Channel switch has a connection to three separate interface modules.
v Each volume has six paths.
xiv10340
Module 9
Module 8
Module 7
Module 6
Module 5
Module 4
Hosts
Switch B
Switch A

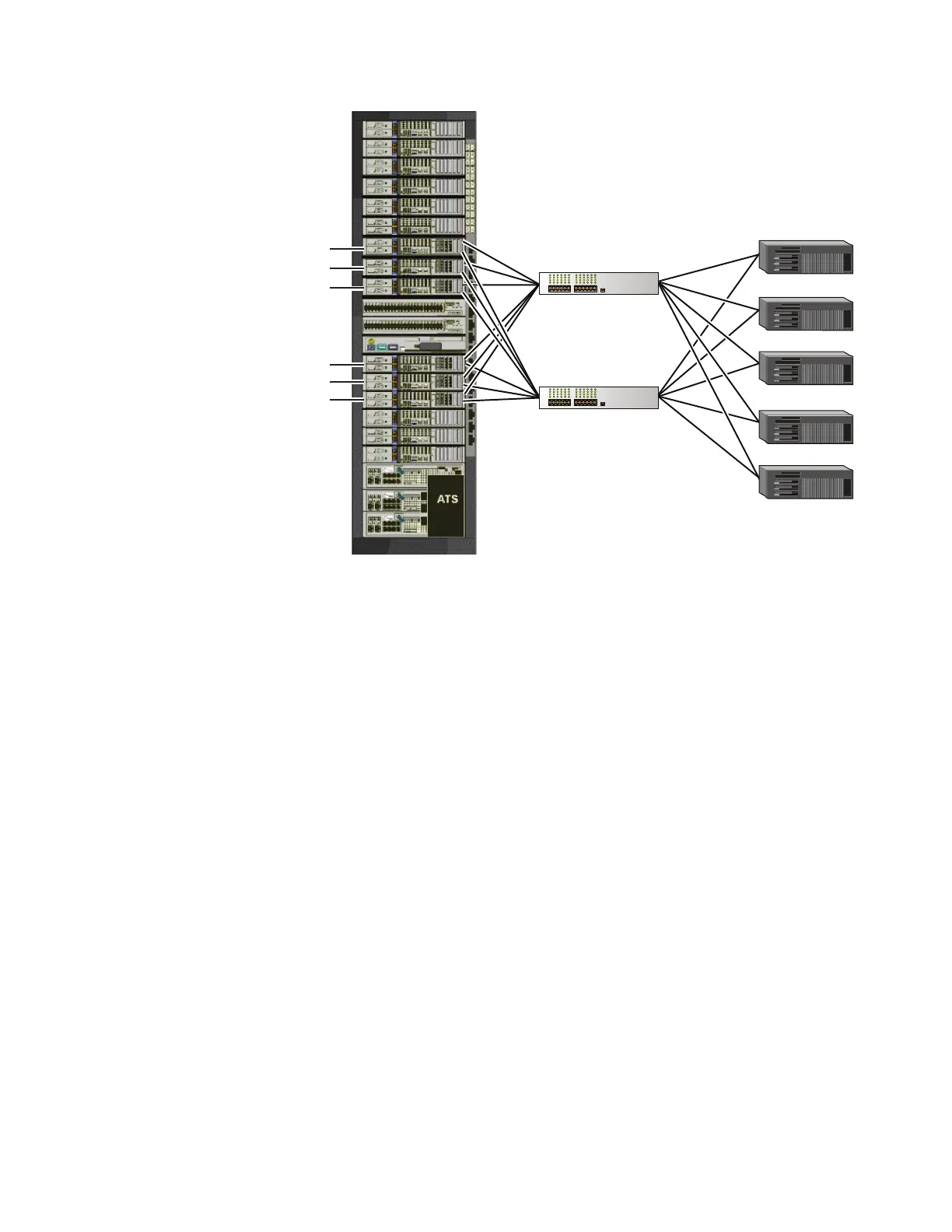

Figure 14. Fully redundant Fibre Channel configuration with 12 paths to each volume
Chapter 7. Network and host connectivity requirements 57
