Note: Only the 4 TB and 6 TB DDM options are available for model 281x-314.
Table 7 shows the various minimal configuration limits for a rack's data storage.
Table 7. Minimally populated rack limits for data storage
Hard drive size
Total usable capacity for
models 281x-114 and
281x-214
Total usable capacity for
model 281x-314
1 TB 28 TB N/A
2 TB 55 TB N/A
3 TB 84 TB N/A
4 TB 112 TB 177 TB
6 TB 169 TB 267 TB
The following figure shows an example of the front and rear views of a minimally
populated XIV system for models 281x-114 and 281x-214.
Note: The modem is no longer supported as part of the rack configuration for
Indonesia and Brazil. For more information, contact your IBM planning
representative.

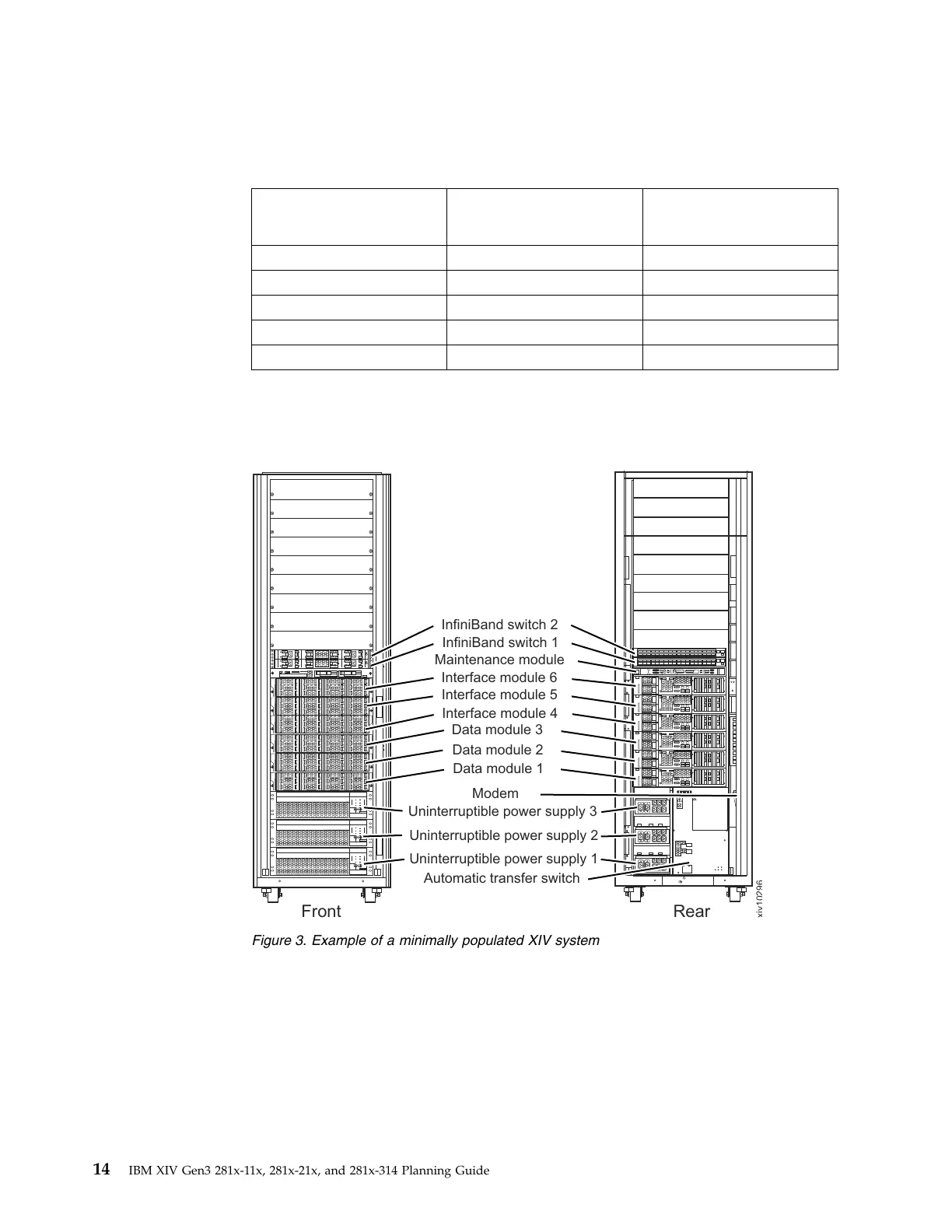

The next figure shows an example of the front and rear views of a minimally
populated XIV system for model 281x-314.
