IBM XIV Gen3 Series User Manual

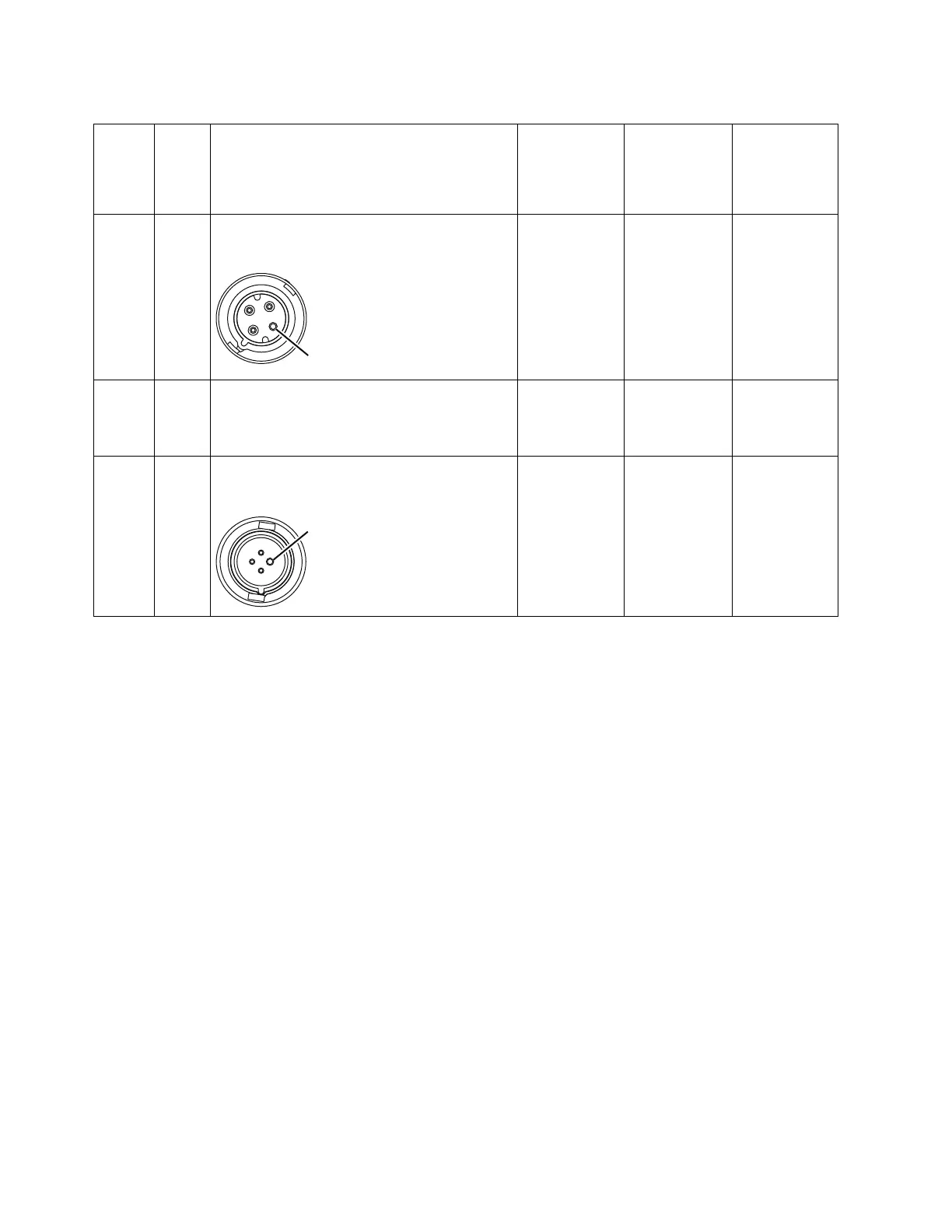

Table 24. Main-power cables (continued)
Main-
power
cable
feature
code
ATS
feature
code Description Connector Wall receptacle
Inline
receptacle
9820 9891 Main-power cable for United States, Canada,
Latin America, and Japan; three-phase delta,
60 A, three wires + ground with plug
Ground
xiv10138
Hubbell
HBL460P9V05
Hubbell
HBL460R9W
Hubbell
HBL460C9W
9822 9892 Main-power cable for Europe, Middle East,
Asia/Pacific (except Japan), Australia, and
New Zealand; three-phase wye, 30 A, three
wires + neutral + ground, hard wired
Hard wired or
uses
client-provided
connector
Not applicable Not applicable
9824 9894 Main-power cable for United States, Canada,
Latin America, and Japan; three-phase delta,
30A, three wires + ground with plug
Ground
xiv10139
Hubbell
HBL430P9V04
Hubbell
HBL430R9W
Hubbell
HBL430C9W
Main-power cable considerations
The following information provides details to consider regarding main-power
cables for IBM System Storage
®
systems:
v Main-power cables are 250 V 60 A or 250 V 30 A rated. Single-phase
main-power cables have two poles and three wires. Three-phase main-power
cables have three poles and four wires, or four poles and five wires. Plugs and
receptacles for feature codes 9811 and 9820 are IEC309-compliant.
v Bulk wire conductor sizes for main-power cable feature codes are:
– 9811 and 9820: 6 AWG
– 9813: 10 mm
2
– 9822: 6 mm
2
– 9824: 10 AWG
v The main-power cables extend 4.1 m (13 ft 4 in.) when they exit from the top
of the frame and 4.3 m (14 ft) when they exit from the bottom of the frame.
v Some feature codes have specific wall circuit-breaker requirements:
Attention: Do not exceed the wire rating of the facility. Wall circuit breakers
must be appropriate for power-supply applications to allow internal circuit
breakers to function correctly and to avoid unnecessary service.
– Single-phase installations (200 V - 240 V) with ATS feature code 9890 and
two main-power cables require wall circuit breakers that have a rating of
60 A to 63 A.
– Three-phase delta installations (200 V - 240 V) with ATS feature code 9891
require wall circuit breakers that have a rating of 50 A to 60 A.
40 IBM XIV Gen3 281x-11x, 281x-21x, and 281x-314 Planning Guide
