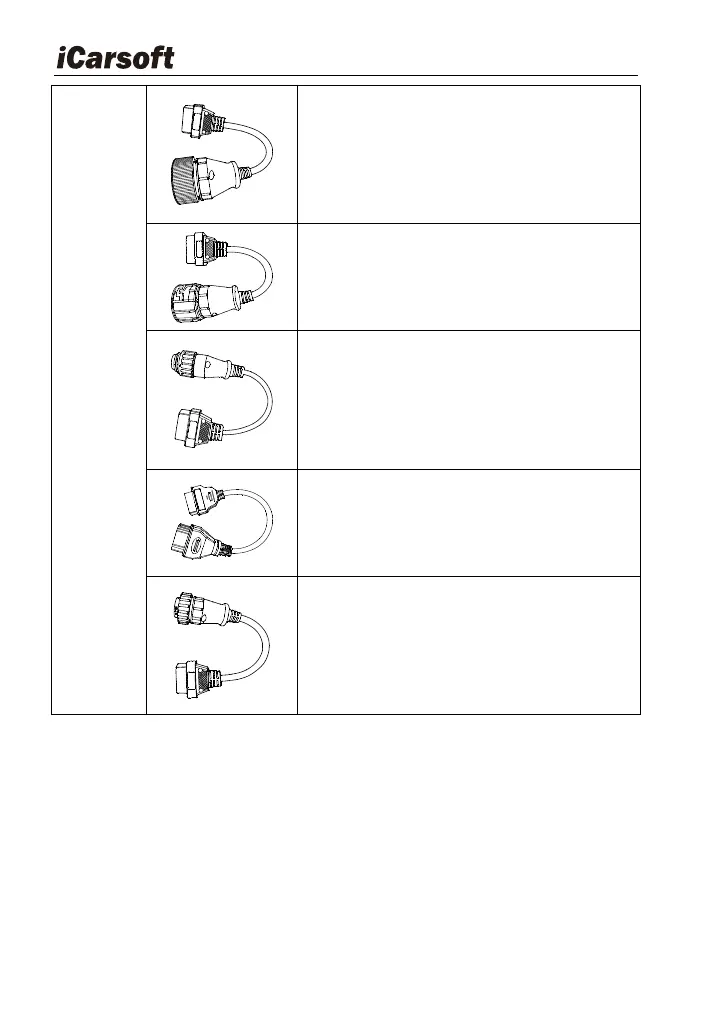

4) 37Pin for MAN
5) 12Pin for MAN
6) 7Pin for KNORR WABCO TRAILER
7) 12Pin for RENAULT
8) 14Pin OBD
3.4 Power supply
The power of the Diagnostic Tool is provided via the vehicle‟s Data Link
Connector (DLC). Follow the steps below to power it up:
1. Find DLC on heavy duty vehicle:
 The DLC is the connector where diagnostic code readers interface
with the vehicle‟s on-board computer and usually located in the
driver‟s cab.
 A plastic DLC cover may be found for some vehicles and you need
