Heavy Duty & OBDII Diagnostic Tool HD V3.0
20
description of the trouble code:

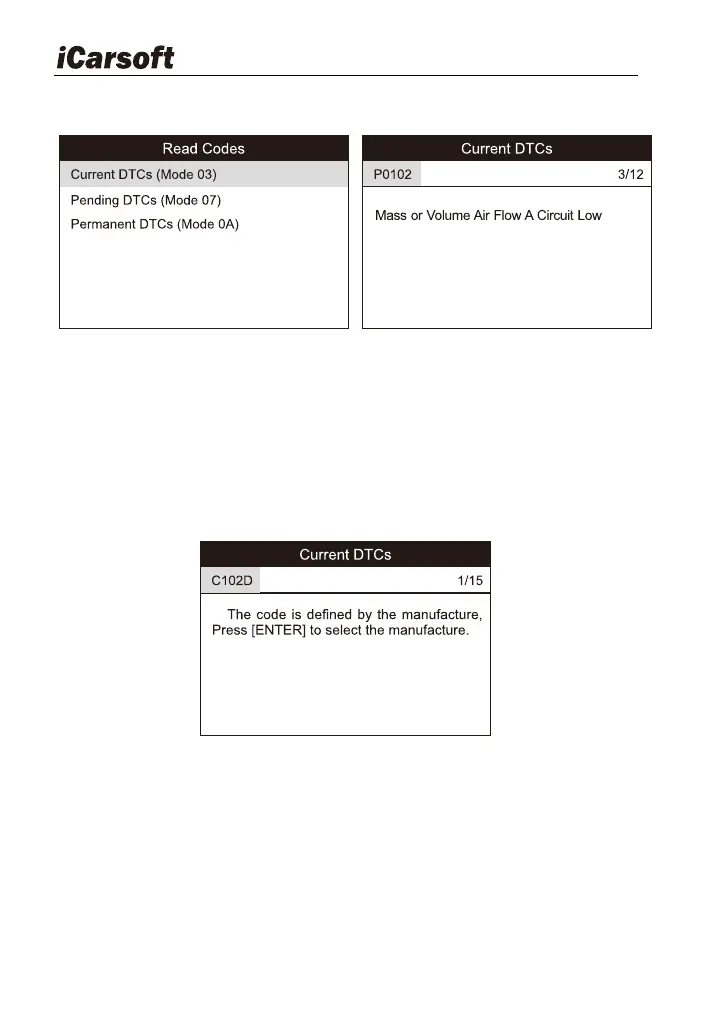

Figure 5-9 Figure 5-10
In Figure 5-10, 3/12 indicates there are total 12 codes and P0102 is the third
code to display.
If the DTC is defined by the manufacturer, a screen similar to Figure 5-11 will
appear. In this case, press ENTER to select the manufacturer from the list
and the screen will show the detailed content of the trouble code.
Figure 5-11
5.2.2 Erase Codes
It is used to clear all existing trouble codes.
Notes: Before performing this function, make sure to retrieve and record the
trouble codes.
After clearing, you should retrieve trouble codes once more or turn ignition on
To Next Page
