iCharger DX8 - Pulse Measurement

DX8
Dual Balance Charger/Discharger/DC Power
- 30 -

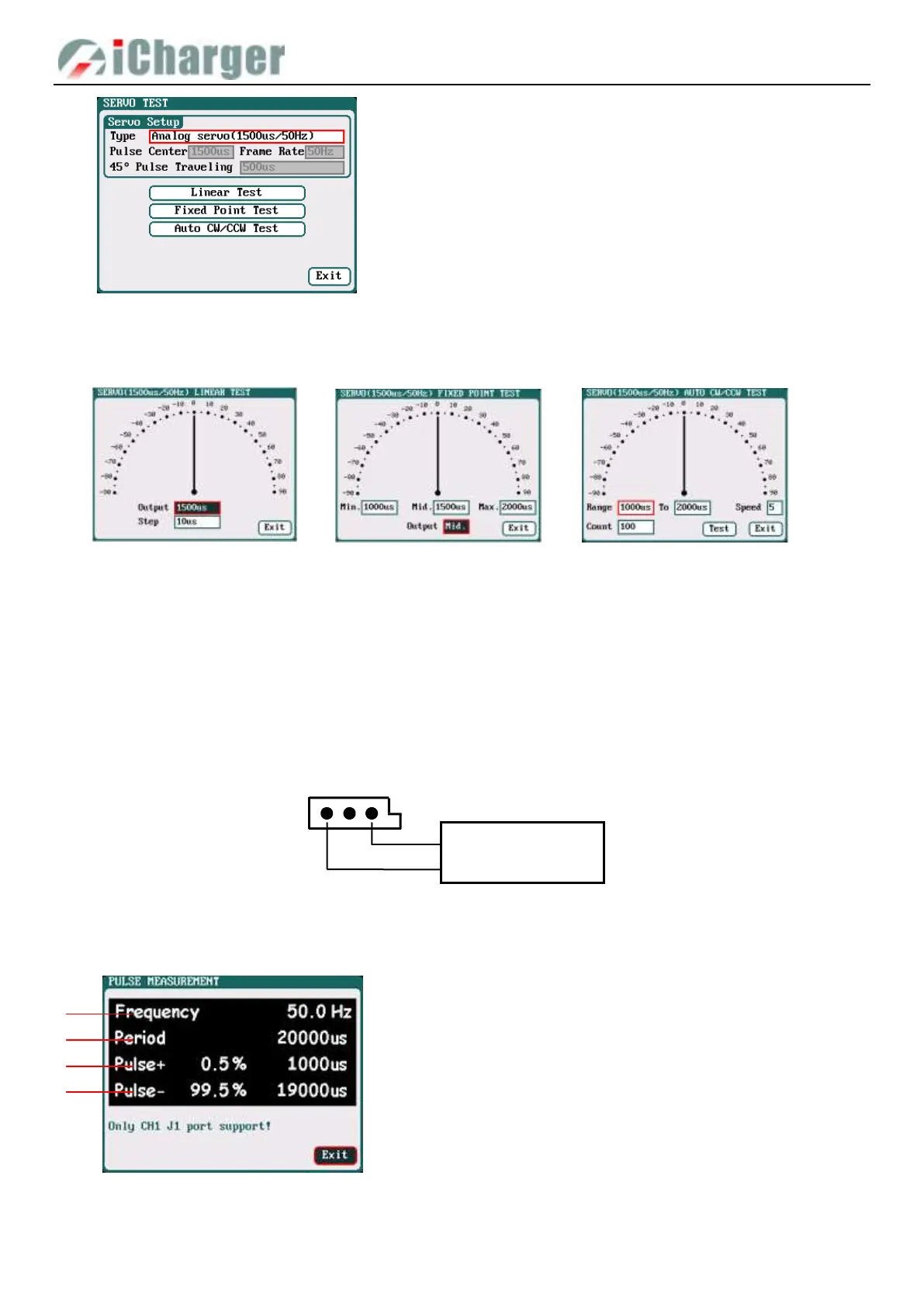

Select the test mode and go to the following corresponding interface.
Pulse Measurement
Connect the signal receiver or transistor with the multifunctional port like below, which can measure their pulse signal:
Select SYSTEM MENU→Pulse Test to enter the pulse test interface, only CH-1 J1 port supports the input signal of Pulse
Measurement.
1.Type: Analog servo (1500us/50Hz)
Digital servo (1500us/333Hz)
Digital servo (760us/560Hz)
User: Pulse Center: 700us-1600us
Frame Rate: 40Hz-700Hz
45°Pulse Traveling:100us-1000us
2. Liner test
3. Fixed point test
4. Auto CW/CCW Test
Liner Test: When turning the knob,
the pointer deflects with the setting
value of Step, and the servo responds
accordingly.
Fixed Point Test: When turning the
knob, the pointer deflects among
each setting value and the servo
responds accordingly.
Auto CW/CCW Test: Click Test
button then the pointer deflects the
setting times at a set rate back and forth
among each setting values, and the
servo responds accordingly.
+
-
S
-
S
Signal Receiver or
Transistor
1. Pulse frequency
2. Pulse period
3. Positive pulse duty cycle and pulse width
4. Negative pulse duty cycle and pulse width
2
2
3
4
