ICM Controls SC 5011 - Heating;Cooling Wiring Diagrams

6

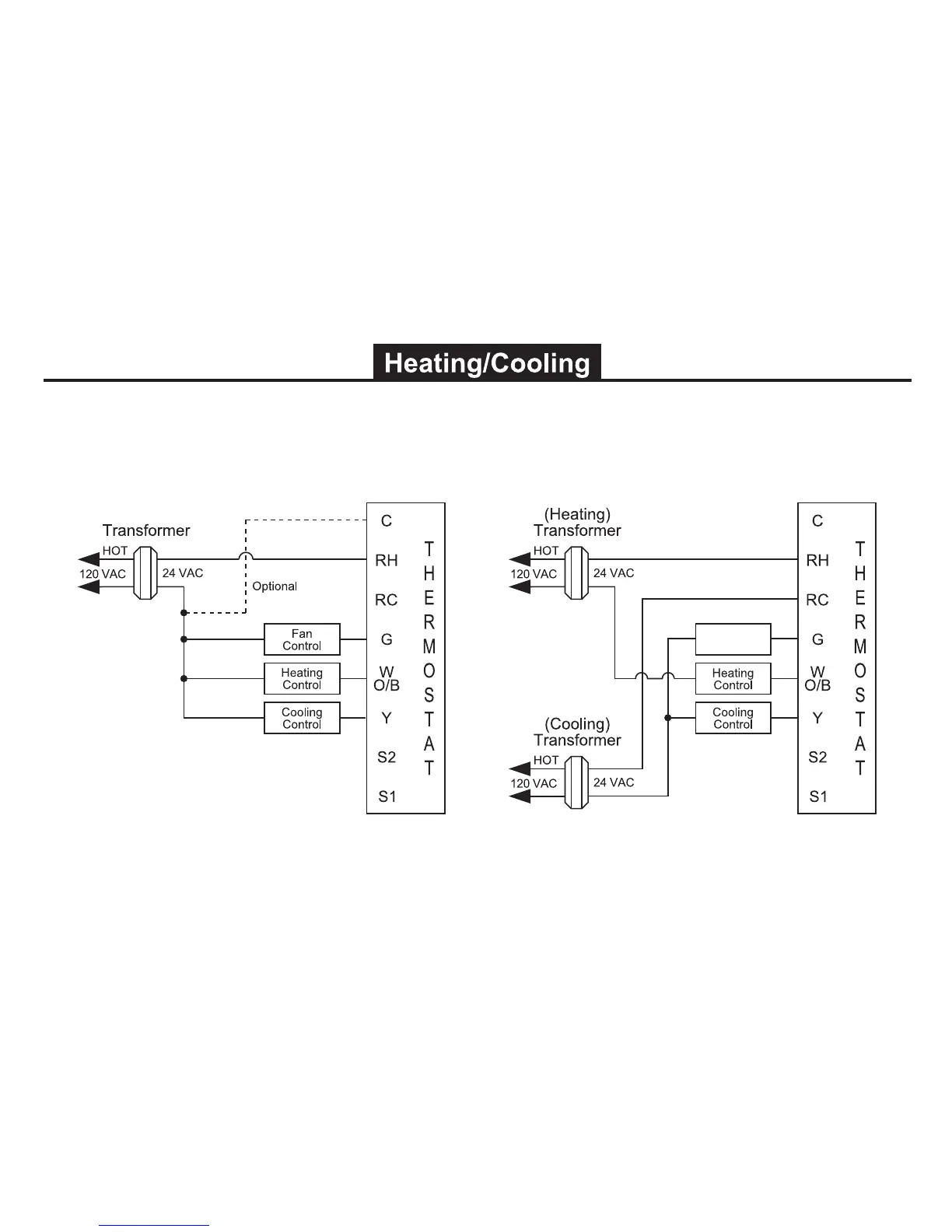

Hardwired
5-Wire, Two Transformer
(Both transformers must be in phase)
Hardwired
4 or 5-Wire, Single Transformer
Fan
Control
IMPORTANT: Before wiring, remove pre-installed
RC/RH jumper.
