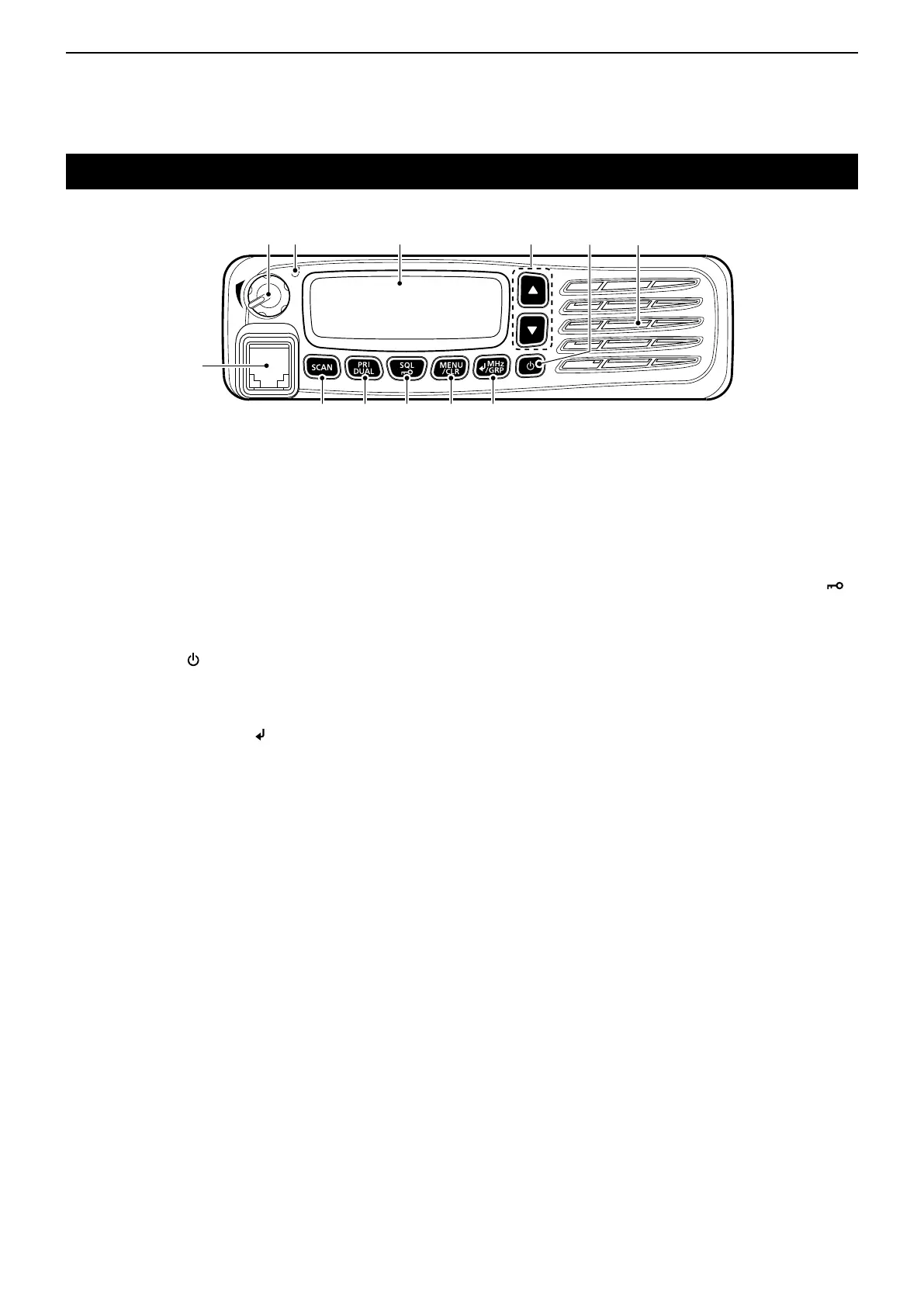

PANEL DESCRIPTION
1-2
Front panel
q VOLUME CONTROL KNOB
Adjusts the audio output level.
w STATUS INDICATOR
➥ Lights red while transmitting.
➥ Lights green while receiving.
e UP/DOWN KEYS [∫]/[√]
Push to select an operating channel, frequency,
and menu items.
r POWER KEY [ ]
➥ Hold down for 1 second to turn the power ON or
OFF.
➥ Push to exit the Menu mode.
t ENTER/MHz/GRP KEY [ ]/[MHz]/[GRP]
➥ Push to save entered data, a selected item, and
so on in the Menu mode.
➥ Push to open the “MEMORY” menu in the
Memory mode.
➥ Push to enter the MHz digit Selection mode in
the VFO mode*.
* For only EXP, USA, and EUR versions.
y MENU/CLEAR KEY [MENU]/[CLR]
➥ Push to enter the Menu mode.
➥ Push to cancel entered data, or to return to the
previous screen in the Menu mode.
u SQUELCH ADJUSTMENT/LOCK KEY [SQL]/[ ]
➥ Push to open the squelch adjustment window
(p. 2-3).
➥ Hold down for 1 second to turn the Key Lock
function ON or OFF (p. 7-6).
i PRIORITY CHANNEL/DUALWATCH KEY
[PRI]/[DUAL]
➥ Push to select the Priority channel.
➥ Hold down for 1 second to turn ON Dualwatch
operation, push to turn it OFF.
o SCAN KEY [SCAN]
➥ Push to start or stop a scan.
➥ Hold down for 5 seconds to select whether or not
to lockout the displayed channel (p. 7-3).
!0 MICROPHONE CONNECTOR
Connect the supplied or an optional microphone.
qe
!0
SPEAKERFUNCTION DISPLAY
w r
