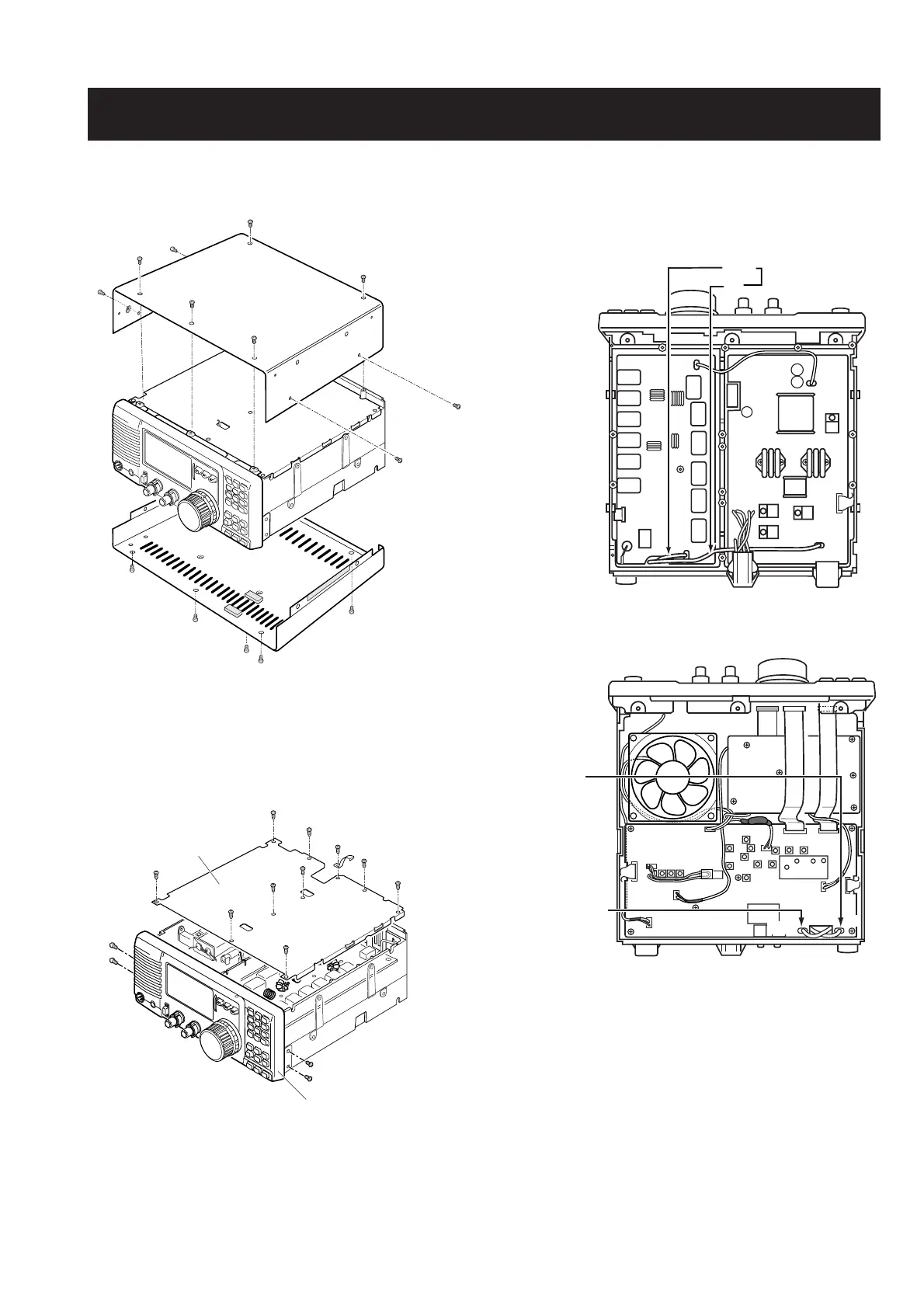

SECTION 3 DISASSEMBLY INSTRUCTIONS
• Removing the covers
Remove 14 screws from the top and bottom covers.
• Removing the Front unit and PA cover
Remove 4 screws from the front panel.
Remove 10 screws from the shield cover.
• How to connect the coaxial cable
Connect the coaxial cable as shown below.
J6
J3
to MAIN unit
PA unit
FILTER
unit
J1
J701
PA cover
FRONT panel
MAIN unit
PLL unit
J3
from FILTER unit
J6
from PA unit
J701
J1
