Icom IC-718 - Mp25 8930036870 Sponge (Dz)

7 - 4
[FRONT UNIT]
[LOGIC UNIT]
[VR UNIT]
[LOGIC-A UNIT]
[PHONE UNIT]
[MIC UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
REF ORDER
DESCRIPTION QTY.
NO. NO.
REF ORDER
DESCRIPTION QTY.
NO. NO.
REF ORDER
DESCRIPTION QTY.
NO. NO.
REF ORDER
DESCRIPTION QTY.
NO. NO.
REF ORDER
DESCRIPTION QTY.
NO. NO.
MP21 8830001101 NUT M9 B11-H2 ZC3 [USA] 1
8830001101 NUT M9 B11-H2 ZC3 [EUR] 1
8830001101 NUT M9 B11-H2 ZC3 [ITA] 1
8830001101 NUT M9 B11-H2 ZC3 [FRA] 1
8830001101 NUT M9 B11-H2 ZC3 [ESP] 1
8830001101 NUT M9 B11-H2 ZC3 [DEN] 1
8830001101 NUT M9 B11-H2 ZC3 [OTH] 1
8830001101 NUT M9 B11-H2 ZC3 [CHN] 1
8830001101 NUT M9 B11-H2 ZC3 [KOR] 1
8830001101 NUT M9 B11-H2 ZC3 [USA-01] 1
8830001101 NUT M9 B11-H2 ZC3 [CHN-01] 1
MP22 8810008661 PHBT M3 X 8 NI-ZC3 5
MP23 8810009131 PHBT M3 X12 NI-ZC3 6
MP25 8930036870 SPONGE (DZ) 1
MP31 8930071480 2242 JACK RUBBER (TOT)S 1
MP32 8930071490 2242 F-SPONGE 2
MP34 8930072980 INSULATION SHEET (LW) 2
W1* 7030003860 ERJ3GE JPW V 1
W70* 7030003860 ERJ3GE JPW V 1
W101* 7030003860 ERJ3GE JPW V 1
W102* 7030003860 ERJ3GE JPW V 1
J1* 6510020421 S4B-PH-SM4-TB (LF) (SN) 1
J3* 6510022621 10FMN-BMTTR-A-TBT (LF) (SN) 1
J4* 6510022621 10FMN-BMTTR-A-TBT (LF) (SN) 1
J5* 6510022621 10FMN-BMTTR-A-TBT (LF) (SN) 1
J6* 6510021722 30FLT-SM2-TB (LF) (SN) (M) 1
J7* 6510021722 30FLT-SM2-TB (LF) (SN) (M) 1
J9* 6510022611 16FMN-BMTTR-A-TBT (LF) (SN) 1
DS1 5030002490 A0087A LCD83.5*45.5*1.1T LCD 1
EP70 8930051450 SRCN-2241-SP-N-W (SHJ) 2
MP1 8210016610 2241 REFLECTOR 1
MP3 8930051090 2241 LCD FILTER 1
MP4 8930072670 2241 LCD RUBBER ASSEMBLY (TOP)S 1
J1* 6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [USA] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [EUR] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [ITA] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [FRA] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [ESP] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [DEN] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [OTH] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [CHN] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [KOR] 1
6510022050 10FM-1.0SP-1.9-TF [USA-01] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [CHN-01] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [USA-02] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [EUR-01] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [ITA-01] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [FRA-01] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [ESP-01] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [DEN-01] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [OTH-01] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [CHN-02] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [KOR-01] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [USA-03] 1
6510022051 10FM-1.0SP-1.9-TF (LF) (SN) [CHN-03] 1
W1* 7030003860 ERJ3GE JPW V 1
W70* 7030003860 ERJ3GE JPW V 1
W101* 7030003860 ERJ3GE JPW V 1
W102* 7030003860 ERJ3GE JPW V 1
J1* 6510020421 S4B-PH-SM4-TB (LF) (SN) 1
J3* 6510022621 10FMN-BMTTR-A-TBT (LF) (SN) 1
J4* 6510022621 10FMN-BMTTR-A-TBT (LF) (SN) 1
J5* 6510022621 10FMN-BMTTR-A-TBT (LF) (SN) 1
J6* 6510021722 30FLT-SM2-TB (LF) (SN) (M) 1
J7* 6510021722 30FLT-SM2-TB (LF) (SN) (M) 1
J9* 6510022611 16FMN-BMTTR-A-TBT (LF) (SN) 1
DS1 5030002490 A0087A LCD83.5*45.5*1.1T LCD 1
EP70 8930051450 SRCN-2241-SP-N-W (SHJ) 2
MP1 8210016610 2241 REFLECTOR 1
MP3 8930051090 2241 LCD FILTER 1
MP4 8930072670 2241 LCD RUBBER ASSEMBLY (TOP)S 1
J1 6510028020 01J0376-00 1
J2* 6510022621 10FMN-BMTTR-A-TBT (LF) (SN) 1
J1 6510000191 FM214-8SS (P)-1 1
J2* 6510022621 10FMN-BMTTR-A-TBT (LF) (SN) 1
*: Refer to “BOARD LAYOUTS” for the location.
**: Refer to “GENERAL WIRING” for the connection
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless

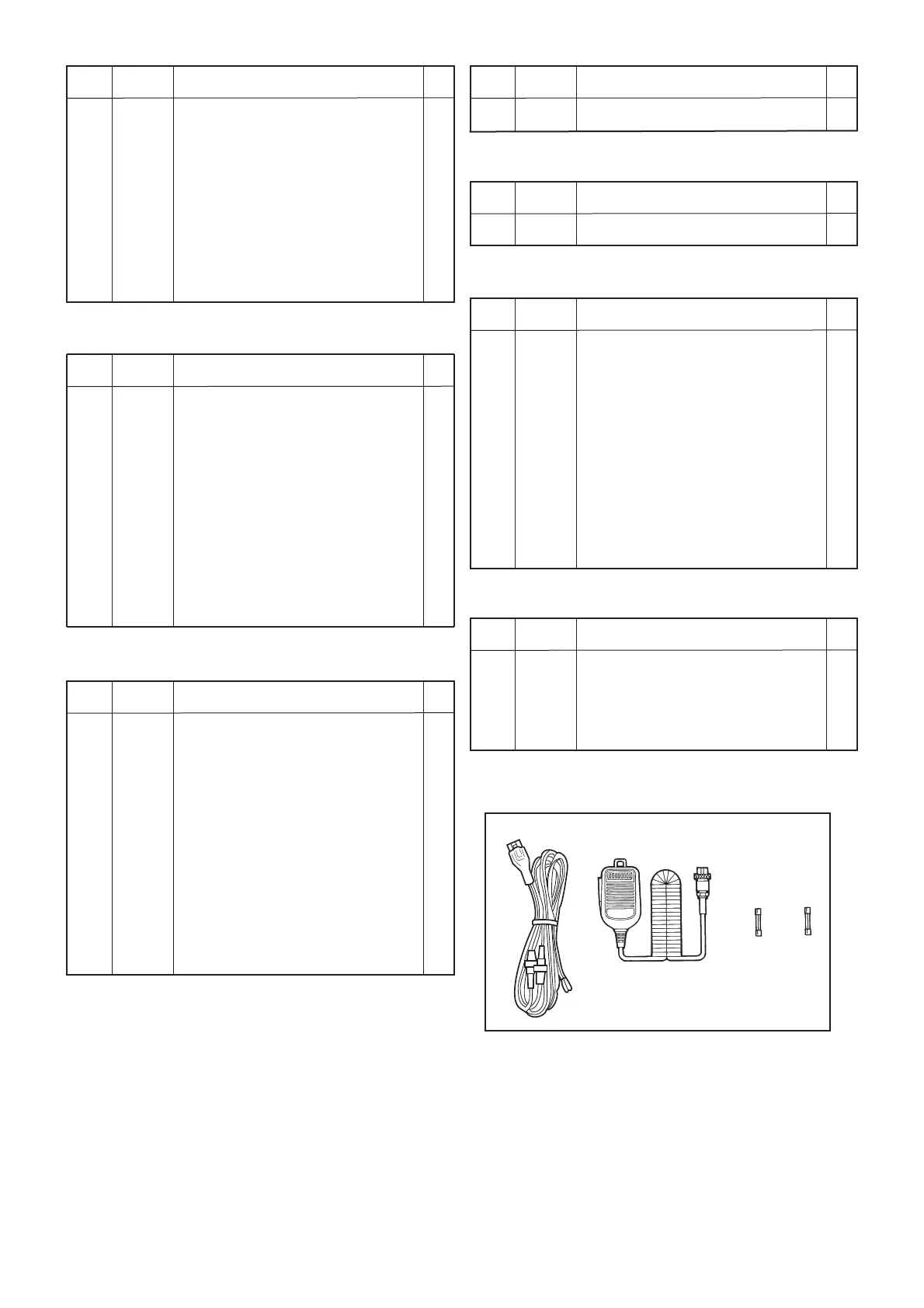

[ACCESSORIES]
REF ORDER
DESCRIPTION QTY.
NO. NO.
F1 5210000080 FGB 20A (FGB0 125V) 1
F2 5210000131 FGB 4A PBF (FGB0 125V) 1
MC1 (Optional) HM-36-1 <TDS> 1
W1 8900000220 OPC-025 A 1
W2 8900006110 OPC-596 [CHN] 1
8900006110 OPC-596 [CHN-02] 1
F1
W1 MC1
F2
