PANEL DESCRIPTION
3
■ Front, top and side panels
q POWER SWITCH [PWR]
Push and hold to turn power ON and OFF.
w SPEAKER-MICROPHONE CONNECTOR [SP MIC]
(p. 25)
Connects the optional external speaker-microphone.
NOTE: Attach the [SP MIC] cap when the optional
speaker-microphone is not used. Otherwise, water will
get into the transceiver.
e ANTENNA CONNECTOR (p. 2)
Connects the supplied antenna.
r CHANNEL KEY [CH]
➥ Selects the regular channel when pushed. (p. 9)
➥
Selects the U.S.A.*
1
, International, Canadian*
2
or ATIS*
3
channel group when pushed and held for 1 sec. (p. 9)
➥ Push to return to the previous channel before selecting
Channel 16 or the call channel.
*
1
U.K. and China versions only.
*
2
China version only.
*
3
German and Holland versions only.

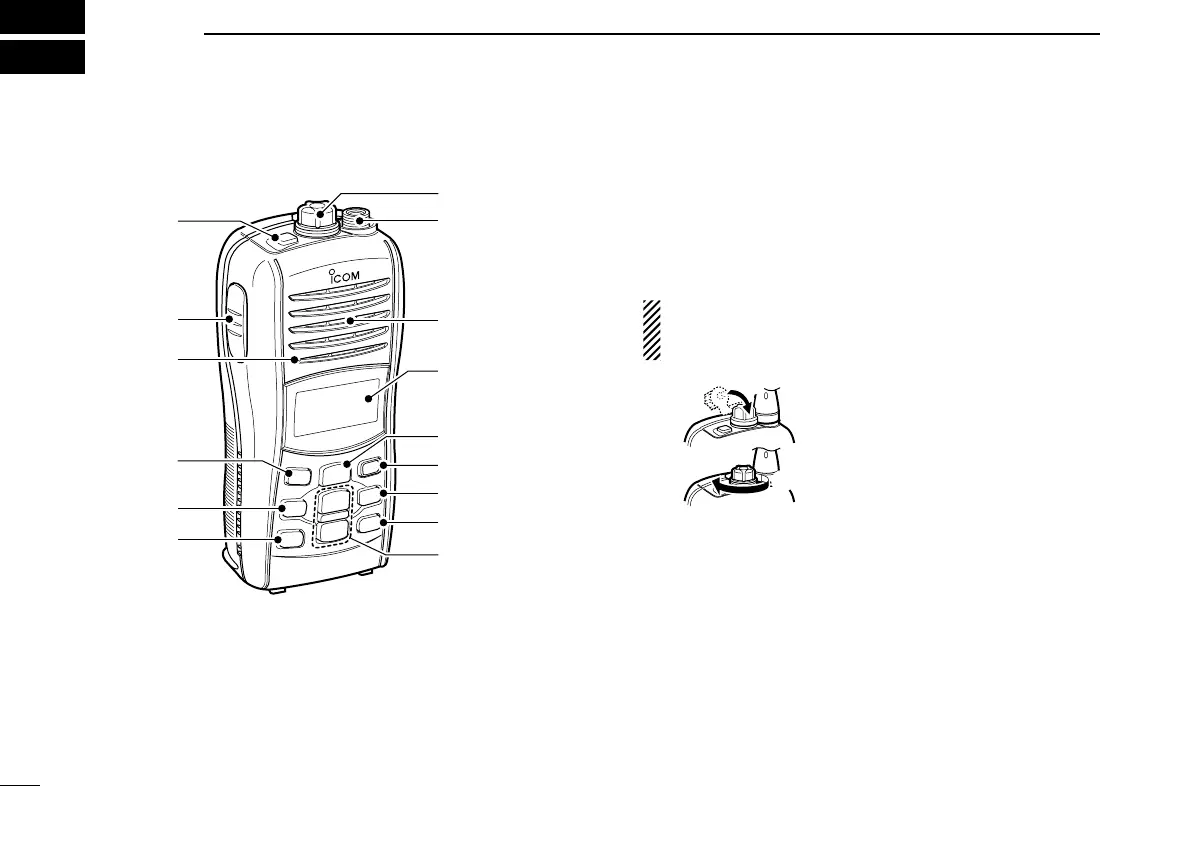

Microphone
Function display
(pgs. 6, 7)
Speaker
o
!2
!1
!0
i
t
y
u
r
w
q
e
q Attach the
[SP MIC]
cap.
w Then rotate it clockwise
completely.
w
q
